Emerson Ovation 1B30035H01: Process Control Base – Technical Overview & Integration Guide

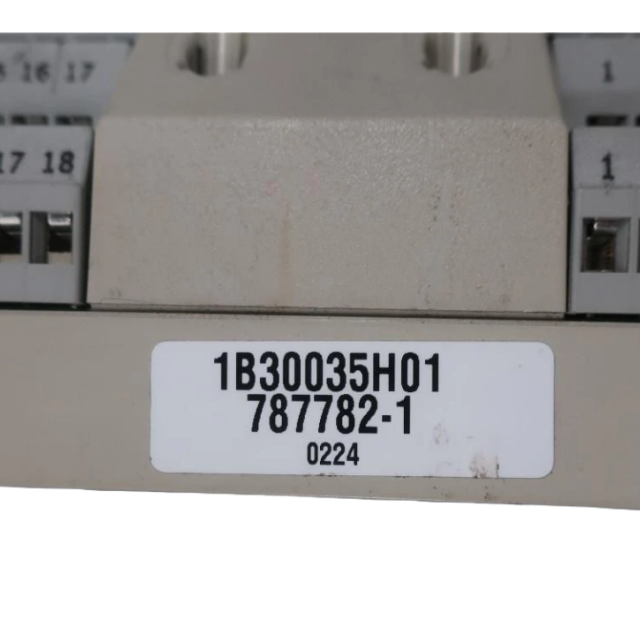

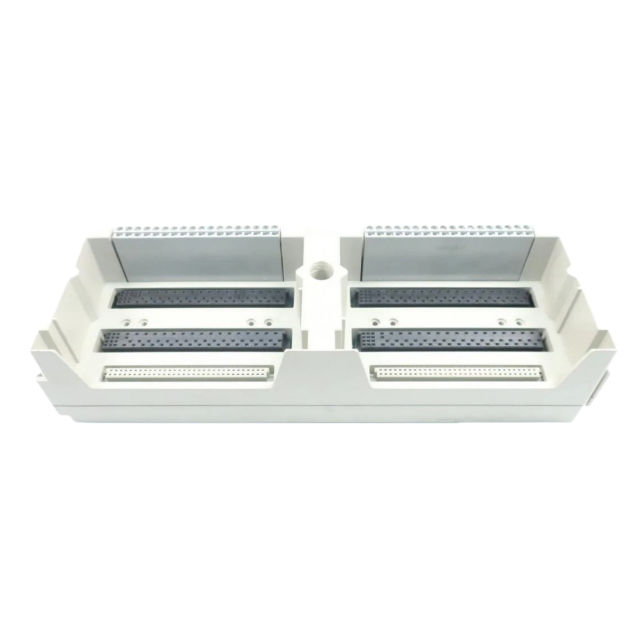

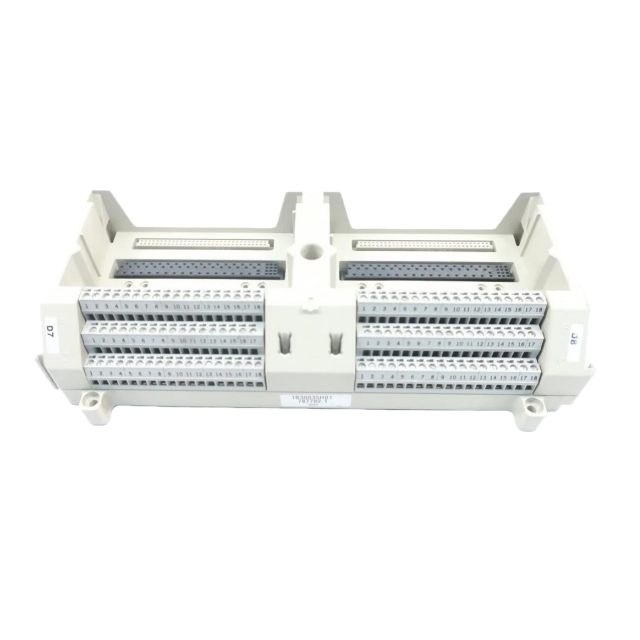

The 1B30035H01 is a rugged, DIN rail-mountable process control base unit engineered exclusively for Emerson’s Ovation Distributed Control System (DCS). Designed as the foundational mounting and wiring interface for Ovation I/O modules, it provides secure terminal connections, power distribution, and mechanical stability for critical process control components. Ideal for industrial environments like power plants, petrochemical facilities, and manufacturing plants, this base unit ensures reliable signal transmission between field devices and Ovation controllers while simplifying installation and maintenance. Below is a detailed breakdown of its core features, specifications, installation, and use cases—optimized for clarity and search visibility to support seamless integration.
1. Core Function & Key Capabilities
The 1B30035H01 serves as the physical and electrical backbone for Ovation I/O modules, bridging the gap between field wiring and the Ovation DCS. Its primary capabilities include:
Module Mounting: Accommodates one Ovation Electronics module (e.g., analog input, digital output) and its corresponding Personality module (where required), with mechanical latches to secure modules in place and prevent dislodgment from vibration.
Field Wiring Termination: Features a 18-position terminal block for connecting field devices (sensors, valves, motors) to the I/O module, with clearly labeled terminals (e.g., “AI+,” “DO-,” “PS+”) to simplify wiring and reduce errors.
Power Distribution: Distributes 24 VDC auxiliary power from the Ovation backplane to the I/O module and field devices (where applicable), with built-in surge protection to shield components from voltage spikes.
Signal Integrity: Incorporates noise-dampening design elements (e.g., twisted-pair wire routing, grounded terminals) to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring accurate data transmission.
Diagnostic Access: Provides test points for each terminal, allowing technicians to measure signals (voltage, current) without disconnecting field wiring—streamlining troubleshooting and reducing downtime.
CE Mark Compliance: Meets EN 61000-4 standards for electromagnetic compatibility (EMC), making it suitable for use in regulated European and global industrial environments.
2. Technical Specifications
2.1 Electrical Specifications
Power Distribution: Delivers 24 VDC ±5% auxiliary power from the Ovation backplane to the I/O module and field devices, with a maximum current capacity of 2 A to support multiple field connections.
Terminal Block Rating: 18-position screw terminals rated for 10 A @ 600 VAC/VDC, compatible with 18–22 AWG solid or stranded copper wire (ferrules recommended for stranded wire).
Surge Protection: Integrates metal-oxide varistors (MOVs) to suppress transient voltage spikes up to 2 kV, protecting I/O modules and field devices from electrical damage.
Dielectric Isolation: 1000 V AC/DC isolation between field terminals and backplane connections, complying with IEC 61010 safety standards to prevent ground loops and operator hazards.
Signal Compatibility: Supports all Ovation I/O signal types, including analog (4–20 mA, ±10 V), digital (24/48/125 VAC/VDC), and HART communications (via compatible modules).
2.2 Environmental Specifications
Operating Temperature Range: 0–60°C (32–140°F), suitable for installation in industrial cabinets with ambient temperature control (no additional cooling required for standard operation).
Storage Temperature Range: -40–85°C (-40–185°F), withstanding extreme conditions during shipping or offline storage.
Humidity Tolerance: 0–95% non-condensing, resistant to moisture in environments like refineries, wastewater treatment plants, or coastal facilities.
Vibration & Shock Resistance: Complies with IEC 60068-2-6 (vibration: 10–500 Hz, 0.15 g) and IEC 60068-2-27 (shock: 100 g, 1 ms), surviving mechanical stress from plant equipment or cabinet movement.
2.3 Mechanical & Physical Specifications
Form Factor: DIN rail-mountable (fits standard 35 mm DIN rails), designed to align with other Ovation I/O components in cabinet layouts.
Dimensions: 279 mm (length) × 127 mm (width) × 165 mm (height)—matches the footprint of standard Ovation I/O bases for consistent cabinet spacing.
Weight: 350 grams (empty), lightweight enough for easy installation without additional cabinet support.
Material: Flame-retardant polycarbonate housing (UL 94 V-0 rating) to prevent fire spread in case of electrical faults, with a corrosion-resistant aluminum terminal block plate.
3. Compatibility & Required Components
The 1B30035H01 is engineered to work with Ovation’s modular I/O ecosystem, requiring specific components for full functionality:
3.1 Ovation Module Compatibility
Electronics Modules: Supports all standard Ovation Electronics modules, including:
Analog Input: 1C31113G03 (13-bit), 1C31224G01 (14-bit), 5X00070G01 (high-speed).
Digital Output: 1C31122G01 (60 VDC).
Relay Output: 1C31219G01 (G2R/KUEP bases).
HART Modules: 5X00058G01 (HART analog input), 5X00062G01 (HART analog output).
Personality Modules: Works with corresponding Personality modules (e.g., 1C31116G01 for analog input, 1C31125G01 for digital output) to configure signal types and wiring.
Field Devices: Compatible with all industrial sensors, actuators, and control devices that use Ovation-supported signals (e.g., thermocouples, RTDs, solenoid valves, contactors).
3.2 Required Accessories
DIN Rail: Standard 35 mm DIN rail (included in Ovation I/O cabinets) for mounting the base unit.
Wire Ferrules: 18–22 AWG ferrules (e.g., Emerson part number 1B30047G01) for stranded wire, ensuring secure terminal connections and preventing loose strands.
Torque Screwdriver: For tightening terminal block screws (recommended torque: 0.8 N·m) to avoid over-tightening (which damages terminals) or under-tightening (which causes loose connections).
Backplane Cable: Ovation-recommended backplane cable (e.g., 5A26141) to connect the base unit to the Ovation I/O bus and distribute power.
4. Installation Guidelines
4.1 Pre-Installation Checks
Power Safety: Ensure the Ovation I/O cabinet is powered off and locked out/tagged out (LOTO) to prevent electrical shock during installation.
Component Inspection: Check the 1B30035H01 for physical damage (e.g., cracked housing, bent terminals) and verify the part number matches the project’s bill of materials.
Cabinet Layout Review: Confirm the base unit is positioned to align with the I/O bus backplane and that there is 2 cm of clearance from adjacent components for airflow and wiring access.
4.2 Step-by-Step Installation
Mount the Base Unit: Snap the 1B30035H01 onto the 35 mm DIN rail in the Ovation cabinet, aligning it with the backplane connectors. Push firmly until the rail clips lock into place—pull gently to confirm stability.
Connect the Backplane Cable: Plug the Ovation backplane cable (5A26141) into the base unit’s backplane port (labeled “BUS IN/OUT”) to enable power distribution and communication with the controller.
Prepare Field Wiring: Strip 6–8 mm of insulation from the ends of field device wires (18–22 AWG) and crimp ferrules (if using stranded wire). Label wires with their corresponding signal type (e.g., “AI1+,” “DO2-”) to avoid confusion.
Terminate Field Wires: Connect field wires to the base unit’s terminal block, following the wiring diagram provided on the Personality module (once installed). For example:
Analog input signals: Connect “+” to terminal 1, “-” to terminal 2, and shield to terminal 3 (earth ground).
Digital output signals: Connect “+” to terminal 5, “-” to terminal 6, and load to terminal 7.
Tighten terminal screws to 0.8 N·m using a torque screwdriver—do not over-tighten, as this can strip threads.
Install I/O Modules: First, insert the Personality module into the base unit’s Pmod slot (aligning the pins with the connector). Then, insert the Electronics module on top, pressing until the blue latches snap into place. Verify modules are fully seated by gently tugging on them.
Power On & Verify: Restore power to the cabinet, then check the base unit’s power LED (if present) and the I/O module’s diagnostic LEDs (P = power, C = communication) to confirm proper operation.
4.3 Wiring Best Practices
Signal Segregation: Route analog signal wires (low-voltage, noise-sensitive) separately from power wires (high-voltage) to minimize EMI. Use shielded cables for analog signals, grounding the shield at one end (field device or cabinet) to avoid ground loops.
Labeling: Mark both ends of field wires and terminal blocks with unique identifiers (e.g., “TIC-101 AI+,” “VALVE-202 DO-”) to simplify maintenance and troubleshooting.
Spare Wiring: Leave 10–15 cm of slack in field wires to allow for base unit or module removal without rewiring.
5. Maintenance & Troubleshooting
5.1 Routine Maintenance
Monthly Checks: Visually inspect the base unit for loose wiring, damaged terminals, or debris (e.g., dust, oil). Verify that I/O modules are securely latched and that diagnostic LEDs show no fault conditions (e.g., red “I” or “E” LEDs).
Quarterly Checks: Clean the base unit and terminal blocks with a dry, lint-free cloth to remove dust—avoid solvents or compressed air, which can damage components or push debris into connectors. Check terminal screws for tightness (re-torque to 0.8 N·m if loose).
Annual Checks: Test terminal block continuity with a multimeter to ensure no corrosion or broken connections. Inspect surge protection MOVs for signs of damage (e.g., bulging, discoloration) and replace the base unit if MOVs are faulty.
5.2 Troubleshooting Common Issues
No Power to I/O Module (P LED Off):
Check the backplane cable connection—ensure it is fully plugged into the base unit and backplane.
Verify the Ovation cabinet’s auxiliary power supply (24 VDC) is within ±5% of nominal voltage.
Inspect the base unit’s internal power fuse (if present)—replace with an exact rating match if blown.
Communication Error (C LED Off):
Confirm the I/O module’s address is unique (no duplicates on the bus) via the Ovation I/O Builder tool.
Inspect the backplane cable for damage (e.g., cuts, frayed wires) and replace if necessary.
Reset the Ovation controller’s I/O bus and recheck communication—if the issue persists, test the base unit with a known-good module.
Signal Noise (Inaccurate Analog Readings):
Ensure analog signal cables are shielded and grounded at one end.
Check for loose terminal connections—re-tighten screws to 0.8 N·m.
Move analog cables away from power cables or EMI sources (e.g., motor starters) if possible.
6. Application Use Cases
The 1B30035H01 is a versatile base unit used across industries to support Ovation DCS I/O modules, including:
Power Generation: Serves as the mounting base for turbine control modules (e.g., 1C31199G03 servo driver) and temperature input modules (e.g., 1C31161G01 RTD module), enabling precise monitoring and control of steam turbine speed and temperature.
Petrochemical Processing: Supports HART analog modules (5X00058G01) and digital output modules (1C31122G01) for controlling process valves and monitoring pressure/temperature in refineries or chemical plants.
Manufacturing: Mounts digital input modules (1C31107G01) and relay output modules (1C31219G01) to control conveyor belts, robotic arms, and packaging equipment, ensuring reliable production line operation.
Water & Wastewater: Houses analog input modules (1C31224G01) for flow sensor data and digital output modules for pump control, supporting water treatment and distribution processes.
