FBM206
Foxboro
The FBM206 is equipped with eight pulse input channels, while the FBM206b variant features four
pulse input channels paired with four 0–20 mA analog output channels. Each input channel is
designed to accept 2-wire pulse signals from a wide range of field sensors, including vortex
flowmeters, turbine flowmeters, solid-state or electromechanical contacts, and other devices with
equivalent pulse output capabilities. Both modules handle the necessary signal conversion to
seamlessly interface electrical input signals from field sensors with the redundant fieldbus system.
| Channel Configuration: FBM206: 8 configurable pulse input channels, supporting 7–27 V DC input signals |
High-Speed Input Capability: |
Enhanced Electrical Isolation: Full galvanic isolation between individual channels and from ground, preventing cross-channel interference and signal distortion |
Harsh Environment Compatibility: Ruggedized hardware design, suitable for installation in Class G3 harsh industrial environments |
Flexible Pulse Processing: On-module execution of pulse input application programs, with configurable parameters including pulse rate totalization, measurement resolution (per module setting), and meter scaling factor |

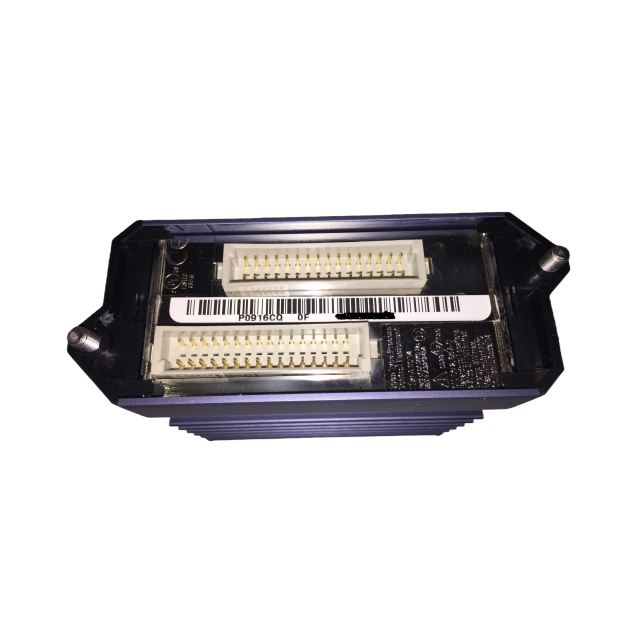

Versatile Wiring Termination: Compatible with dedicated Termination Assemblies (TAs) for both local and remote field wiring connections to FBM206/FBM206b modules |
Dual Power Support for Field Devices: Termination Assemblies available to power loop devices either internally or externally on a per-channel basis |

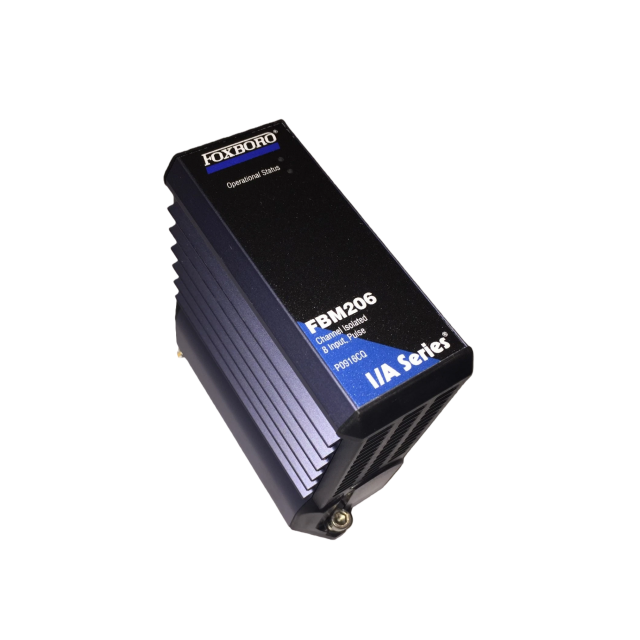

The FBM206/FBM206b modules feature a rugged extruded aluminum housing that provides robust
physical protection for internal circuit components. Dedicated enclosures designed for FBM module
installation deliver tiered environmental shielding performance, complying with ISA Standard S71.04
and supporting deployment even in harsh industrial environments.
The FBM206/FBM206b modules connect to the 2 Mbps module fieldbus via either a Fieldbus
Communication Module or a Control Processor. Built to support redundant fieldbus architecture, the
FBM206 is capable of communicating through either Path A or Path B of the 2 Mbps redundant
module fieldbus. If one communication path fails or is switched out at the system level, the module
will seamlessly continue data transmission via the active path, ensuring uninterrupted fieldbus
connectivity.

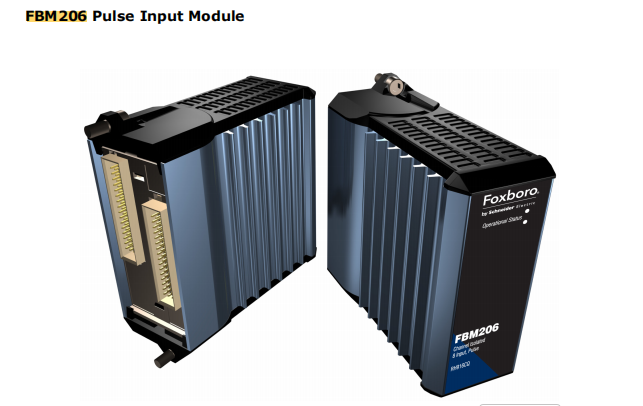

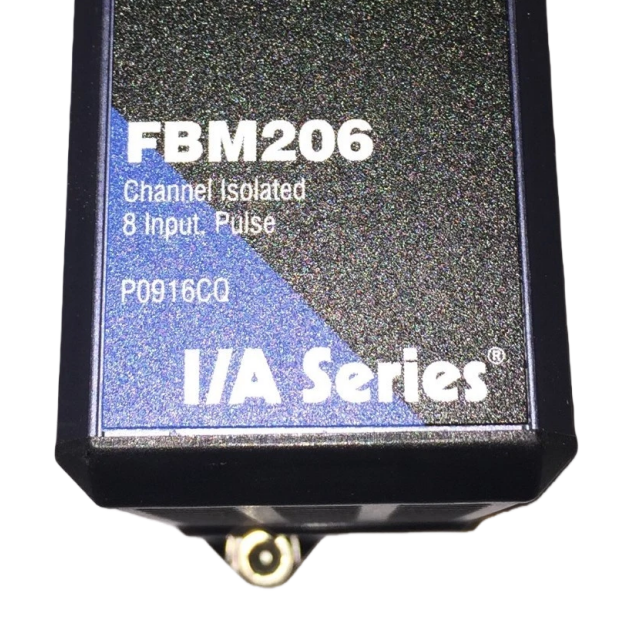

FBM206 is an 8-channel pulse input module belonging to Foxboro Evo™ Process Automation System
by Schneider Electric. It is designed to acquire high-speed pulse signals from industrial sensors (e.g.,
vortex meters, turbine meters) and transmit processed data to the control system via a redundant
fieldbus.
