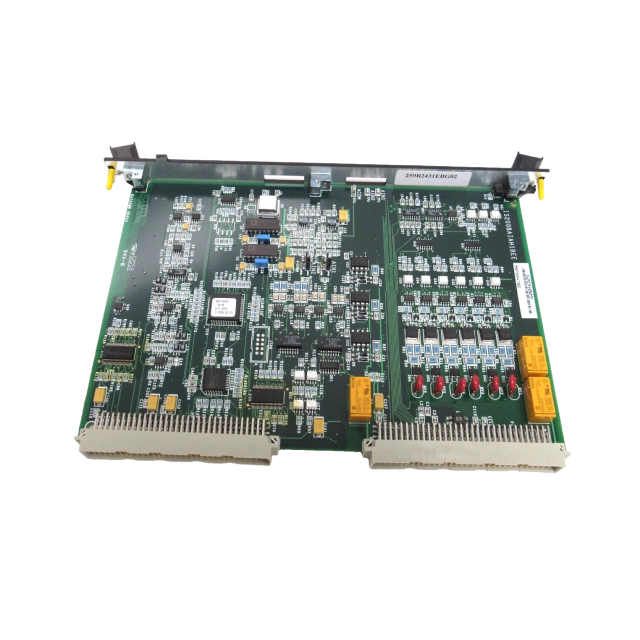

What the IS200BAIAH1BEE Board Does in a Mark VI System
The GE IS200BAIAH1BEE is an analog input board used in the Mark VI Speedtronic turbine control system. It sits between field instrumentation and the Mark VI processor. The board receives analog signals from pressure transmitters, temperature transmitters, valve position feedback devices, and other 4–20 mA or DC voltage inputs. It filters, conditions, and converts these values so the control system can use them.
This board is not a standalone controller. It works as part of the Mark VI I/O rack. The processor reads the data over the backplane. The board also reports open loops, out-of-range conditions, and internal board health.
Key Functions
Analog signal conditioning and filtering
Input isolation and noise reduction
Analog-to-digital conversion for Mark VI processing
Status and fault reporting
Interface with the Mark VI terminal board and backplane
Why Board Revision Matters
The suffix H1BEE identifies the hardware revision. Revisions can differ in component layout, termination, or firmware support. Always verify the complete part number before replacement. An older or newer revision may not match your current I/O configuration.
Where the IS200BAIAH1BEE Is Used
The board is installed in Mark VI control panels for gas turbines, steam turbines, and turbine-driven compressor packages. Common applications include:
Lube oil pressure and temperature monitoring
Fuel gas pressure and valve position feedback
Exhaust temperature monitoring
Generator cooling and seal oil systems
Speed and load control inputs
In a combined cycle plant, the same board may appear in both the gas turbine and steam turbine Mark VI panels. It is also used in mechanical drive applications where the turbine drives a compressor or pump.
4–20 mA transmitter loops
DC voltage signals
Temperature transmitter inputs
Valve position feedback signals
Use shielded twisted pair cable for field wiring. Ground at the terminal board end only. Keep signal cables separated from AC power and drive cables.
Board Identification and Installation Location
The IS200BAIAH1BEE mounts in the Mark VI I/O rack. It connects to a terminal board through the backplane or ribbon cable. Field wiring lands on the terminal board, not directly on this board.
When you open the panel, record the following from the board label:
This information is needed for spare part quotation and for comparing revision compatibility.
Common Faults and Troubleshooting Checks
Most board faults appear as channel errors, diagnostic LED signals, or values that do not change. Use these checks before replacing the board.
Symptom | Likely Cause | First Check |
|---|
One analog channel shows open wire | Field wiring or terminal board fault | Check loop resistance at termination board |
All channels show no reading | Board power or backplane connection | Reseat board and check rack power |
Values drift or are unstable | Signal noise or bad grounding | Check shield grounding and cable routing |
Fault LED remains on | Board self-test failure | Record LED pattern and replace if confirmed |
Reading is out of range | Sensor fault or wrong input type | Verify transmitter output and input configuration |
Do not replace an IS200BAIAH1BEE board based on a single channel error. First move the field signal to a spare channel if available. If the problem follows the channel, the issue is external. If the problem stays on the same channel after rewiring, replace the board.
Replacement Planning and Procurement
When the board is confirmed faulty, order the exact part number. Use the following checklist:
Confirm IS200BAIAH1BEE and revision from the board label.
Check Mark VI software configuration for input type and channel usage.
Compare the slot position and rack type with the system drawing.
Request a test report or warranty confirmation from the supplier.
Keep the replacement board in static-safe packaging until installation.
A used board may work, but only if it has been properly tested. Ask for board-level functional testing and compare the revision. Mixing incompatible revisions can cause configuration faults after startup.
FAQ
What is the IS200BAIAH1BEE used for?
It is an analog input board in the GE Mark VI turbine control system. It conditions and converts field analog signals for the Mark VI processor.
Can I replace IS200BAIAH1BEE with a different part number?
Do not assume interchangeability. Always match the full part number and revision with the system control drawing and Mark VI software configuration.
What causes an IS200BAIAH1BEE board to fail?
Common causes are field wiring faults, power supply issues, backplane connection problems, and component aging. External shorts or improper grounding can also damage input channels.
How do I know if the board is faulty?
Check the diagnostic LED pattern, Mark VI alarm messages, and channel values. Isolate the field circuit first before replacing the board.
Do I need to stop the turbine to replace this board?
In most Mark VI applications, the board is part of the I/O rack. Replacement may require a controlled shutdown or bypass depending on the process. Follow site safety and lockout procedures.
IS200BAIAH1BEE Spare Parts Support
Joyoung International Trading Co., Limited supplies GE Mark VI industrial automation spare parts, including the IS200BAIAH1BEE. We support power plant and industrial maintenance teams with exact part matching, revision verification, and fast delivery.
For related Mark VI analog I/O guidance, read our GE IS200AEPAH1A Mark VI Analog I/O Module Sourcing Guide.
For inventory confirmation or a quotation, contact:
You can also check our GE spare parts category.
Need help matching a Mark VI board to your system? Send the complete board label and slot position. We will confirm the correct revision and delivery time.
