If you maintain a VM600 rack-based protection system, you may need to compare two CPUM cards: 200-595-063-314 and 200-595-067-114. Plant maintenance teams usually ask whether the newer part is a direct replacement or whether it forces a firmware upgrade.
The short answer: 200-595-067-114 is the later hardware revision designed to replace the older 200-595-063-314 in most existing VM600 racks. The rack slot, field wiring, and basic processing function remain unchanged. However, there are hardware changes and configuration steps you should review before swapping.
What the CPUM does in a VM600 rack

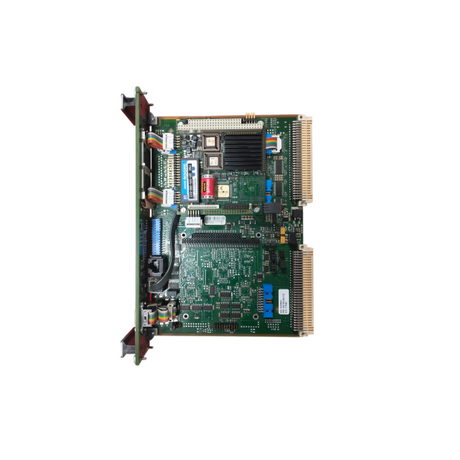

The CPUM is the central processor and communication module in the VM600 rack. It handles system-level data exchange, condition and alarm event processing, and configuration storage for the rack.
Because the CPUM communicates with MPC4 protection cards, IOC4T I/O cards, and the configuration software, any hardware revision change must be checked at firmware and configuration level.
Hardware changes from 200-595-063-314 to 200-595-067-114
Field experience and replacement cases point to several practical changes:
PCB component refresh: The 063-314 board contains components that became difficult to source. The 067-114 revision replaces those parts with currently available equivalents while keeping the same signal path and backplane interface.
Power filtering and bus protection: The later revision improves power input filtering and transient handling on the rack backplane. This helps reduce random communication faults in noisy turbine or compressor rooms.
Firmware compatibility update: 067-114 normally ships with a later firmware package. It may be necessary to update other rack modules such as IOC4T or MPC4 so all modules run within the same validated firmware set.
Configuration memory handling: Replacement cards may not carry your original configuration. Always back up the existing configuration before removing the old CPUM.
Mounting and front panel layout: No change in rack slot width or rear connector. Front LED positions and labeling are essentially the same.
Quick comparison:
Item | 200-595-063-314 | 200-595-067-114 |
|---|
Role | CPUM / rack processor | CPUM / rack processor |
Typical status | Older production revision | Later replacement revision |
Rack slot interface | Same VM600 rack slot | Same VM600 rack slot |
Field wiring | No change | No change |
PCB revision | Earlier layout | Updated layout with component refresh |
Firmware base | Older factory firmware | Newer compatible firmware |
Recommended action | Keep as baseline spare | Use for replacement or new spare stock |
Replacement checklist before swapping
Record the full part number from the old card. Do not rely on “CPUM” only.
Back up the rack configuration using the service tool before removing the old card.
Check the firmware revision of the remaining rack modules.
Confirm the new card is set to the same rack address or position.
Power down according to plant lockout/tagout unless the system documentation allows controlled online replacement.
What to do when 067-114 is not recognized after installation
Reseat the card in the correct rack guide. Check the backplane connector for bent pins or dust.
Verify the configuration upload completed. A card without a valid configuration can stay in fault state.
Check for firmware mismatch. If the rack runs old MPC4 or IOC4T firmware, update the complete set rather than only the CPUM.
Clear historical fault records only after confirming the new CPUM is stable.
Which revision should you order first?
Use this decision path:
Plant condition | Recommended part |
|---|
Current rack has 063-314 and spare stock is low | Order 067-114 as replacement |
Plant requires unchanged firmware baseline | Keep 063-314 as a spare |
Rack already uses 067-114 | Do not downgrade to 063-314 |
New project or rack expansion | Order 067-114 |
In most cases, procurement should move to 200-595-067-114 because older production codes are being phased out.
Buying and stock considerations
For a running plant, order the full model code: 200-595-067-114, not a generic “CPUM.” Ask the supplier for:
Hardware revision
Firmware version
Functional test report
Warranty terms
We hold VM600 CPUM, MPC4, IOC4T, IQS450, TQ402 and related components for vibration monitoring and machine protection systems. See our Vibration Monitoring spare parts and CPU Module pages for available part numbers.
If you are replacing an obsolete VM600 CPUM and need to match the correct revision, contact Joyoung International Trading Co., Limited at chen@htechplc.com or +86-181-5013-7565 for technical consultation and fast delivery.
FAQ
Is 200-595-067-114 a direct replacement for 200-595-063-314?
Yes, in most VM600 racks the later card uses the same slot and backplane interface. But firmware and configuration must be checked before putting the card into service.
Do I need to replace the rack backplane or other modules?
No. The rack backplane and field wiring remain unchanged. Ensure all modules in the chain run a compatible firmware set.
Can I keep the old 200-595-063-314 as a spare?
Yes, if it is still functional and matches your current configuration. It is useful as a baseline spare in plants that do not want firmware changes.
What hardware changes should I look for on the replacement card?
Look for an updated PCB version, later firmware label, and consistent rack address setting. The rear connector and power wiring remain the same.
Do I need to update MPC4 or IOC4T after replacing the CPUM?
Not always. If the rack has very old firmware and the new CPUM is on a later firmware baseline, update the complete set to avoid communication faults.
