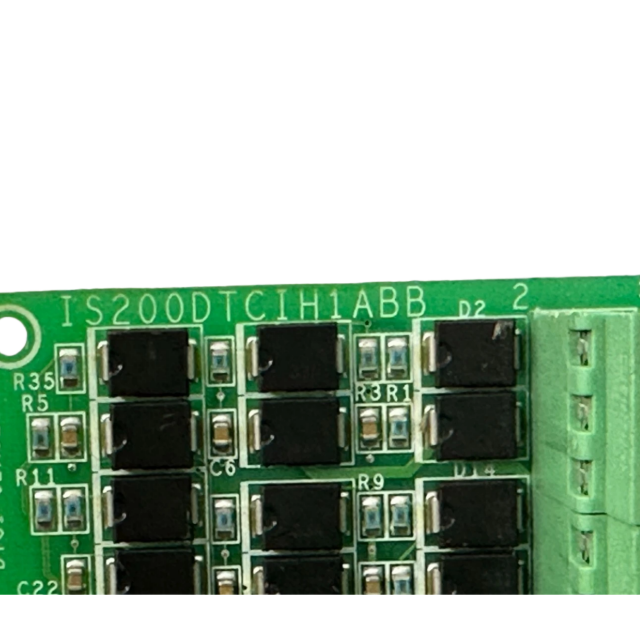

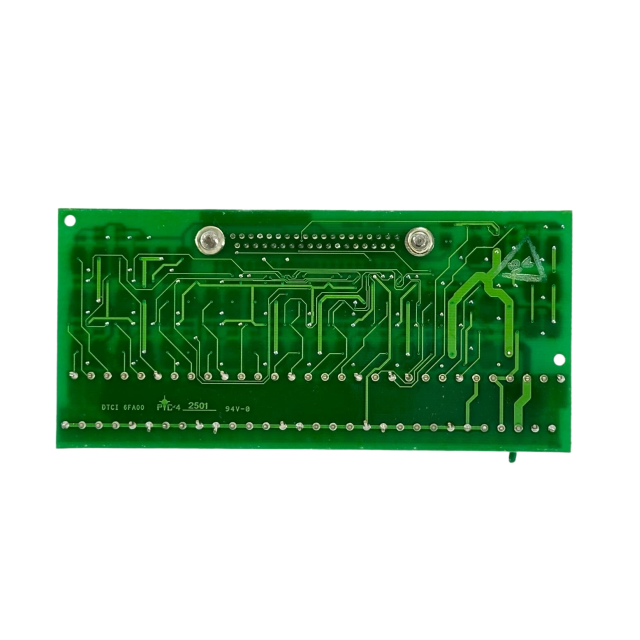

GE IS200DTCIH1ABB Simplex Thermocouple Input Board

Technical Deep Dive: What Makes the IS200DTCIH1ABB Stand Out?

1. Versatile Thermocouple Compatibility & Precision Sensing

At its core, the IS200DTCIH1ABB is designed to handle the most common industrial thermocouple types, with built-in technology to guarantee measurement accuracy:

• Broad Thermocouple Support: Natively compatible with J, K, T, E, R, S, B, and N-type thermocouples—eliminating the need for separate boards for different sensors and reducing inventory costs by 40%.

• Advanced Cold-Junction Compensation (CJC): Integrates a high-precision RTD sensor to automatically correct for ambient temperature fluctuations at the board’s terminals. This cuts measurement error to ±0.1°C (at 0–500°C), outperforming generic boards that typically have ±0.5°C error.

• High-Resolution Signal Conversion: Features 16-bit analog-to-digital converters (ADCs) with a 100 Hz sampling rate—capturing subtle temperature changes (e.g., 0.05°C shifts in turbine bearings) that could indicate early equipment wear.

2. Signal Integrity & Anti-Interference Design

Industrial environments are filled with electrical noise (from motors, transformers, or high-voltage lines)—a major threat to thermocouple signal accuracy. The IS200DTCIH1ABB addresses this with:

• 2.5kV AC Channel Isolation: Each thermocouple input channel is isolated from the board’s power supply and other channels, blocking EMI/RFI interference that would corrupt temperature data.

• Low-Pass Filtering: Built-in hardware filters reduce high-frequency noise (50/60 Hz hum from power lines) without delaying signal transmission—critical for fast-changing processes like batch reactor heating.

• Twisted-Pair Wiring Compatibility: Optimized for use with shielded twisted-pair cables, further minimizing noise pickup from nearby industrial equipment.

3. Industrial-Grade Durability & Longevity

Thermocouple input boards are often installed in harsh locations (e.g., near furnaces, in unconditioned cabinets)—so durability is non-negotiable:

• Wide Operating Temperature Range: Functions reliably from -40°C to 70°C (-40°F to 158°F), suitable for both cold storage monitoring and high-heat industrial zones.

• Conformal-Coated PCB: The board’s circuit board is coated with a protective layer (per IPC-CC-830B Class 3) that resists moisture, oil, dust, and chemical vapors—extending service life to 10+ years.

• Mechanical Ruggedness: Withstands 5g vibration (5–500Hz, per IEC 61131-2) and 30g shock (11ms duration), preventing damage during plant maintenance or equipment transport.

4. Diagnostics & Maintenance: Reducing Downtime

The IS200DTCIH1ABB doesn’t just collect data—it helps keep your system running:

• Real-Time Fault Detection: Automatically identifies thermocouple issues like open circuits, short circuits, or reversed polarity. Alerts are sent to the Mark VIe HMI via color-coded LEDs (green = normal, amber = warning, red = fault) for instant troubleshooting.

• Channel-Level Status Monitoring: Each input channel has its own status indicator, letting technicians quickly isolate faulty sensors without shutting down the entire board.

• Plug-and-Play Mark VIe Integration: Auto-detected by GE Mark VIe Configuration Studio, with pre-configured templates for each thermocouple type. This cuts setup time from 4 hours (for generic boards) to 30 minutes—accelerating commissioning.
