Products information

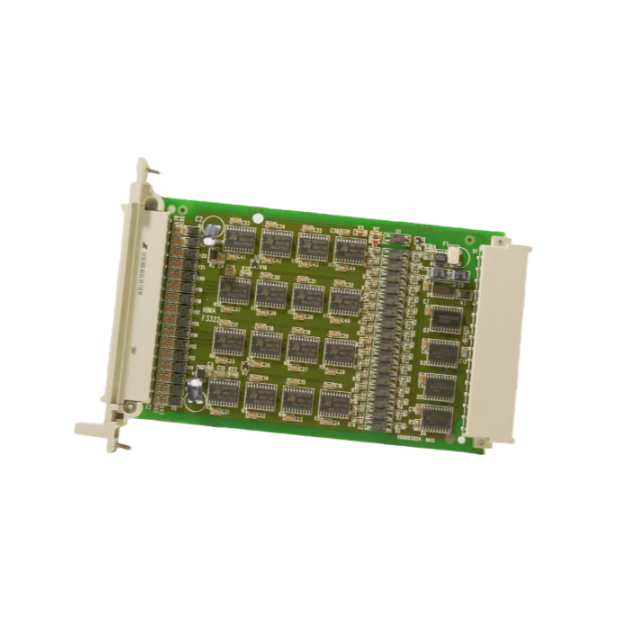

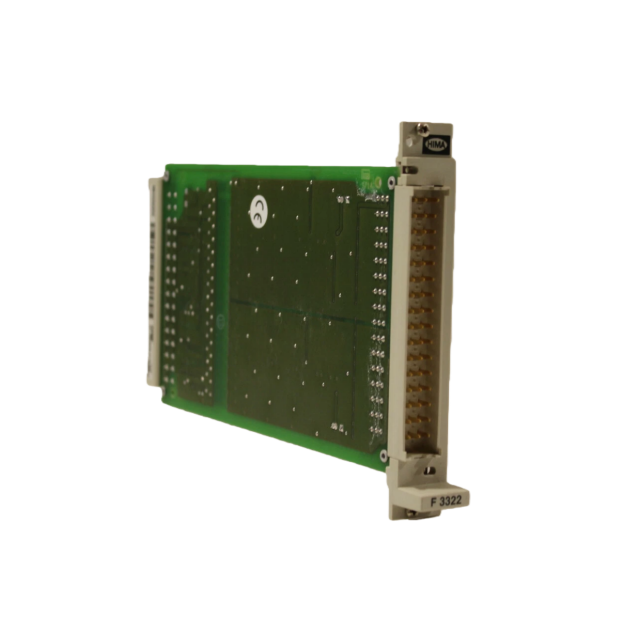

The HIMA F3222 is an 8-channel input module specifically engineered for use with proximity switches
that comply with the EN 60947-5-6 (NAMUR) standard. It integrates two key functional features:
safety isolation to ensure signal integrity and prevent interference, and dedicated feeding capability
to power the connected proximity switches—making it a critical component for reliable signal
acquisition in industrial automation and safety-critical systems.
As a CE-certified product from HIMA (HIMA Paul Hildebrandt GmbH + Co KG), the F3222 is designed
to meet strict industrial performance requirements. Its electrical parameters are optimized for
NAMUR proximity switch compatibility: it has a precise switching point of 1.65 mA ± 0.2 mA, a
switching current difference of approximately 0.3 mA, and a switching time of around 10 ms to ensure
timely signal response . The module provides a dedicated sensor supply voltage range of 7.7...9 V to
power the proximity switches, while its own operation relies on two power inputs: 5 V DC (drawing 40
mA) and 24 V DC (drawing 75 mA) .
For physical installation and wiring, the F3222 features a compact design that requires only 4 SU
(Terminal Equipment units) of space, enabling easy integration into standard industrial control racks .
It uses a Z7108 front cable plug (with lead marking specified as Z 7108/3222/C..) and is compatible
with LiYY 16×0.5 mm² cables for signal transmission . The module’s 8 independent input channels
utilize differential wiring, with each channel connected to specific terminals (e.g., Channel 1 to
terminals d2 and d4, Channel 8 to terminals d30 and d32) and color-coded connections (e.g., white
for d2, brown for d4) to simplify wiring and maintenance . It also includes LED terminals (z4 to z30)
for real-time per-channel status indication, which aligns with its signal logic: an input current greater
than 2.1 mA triggers an H signal (activating the control channel), while an input current less than 1.2
mA triggers an L signal (deactivating the control channel) .

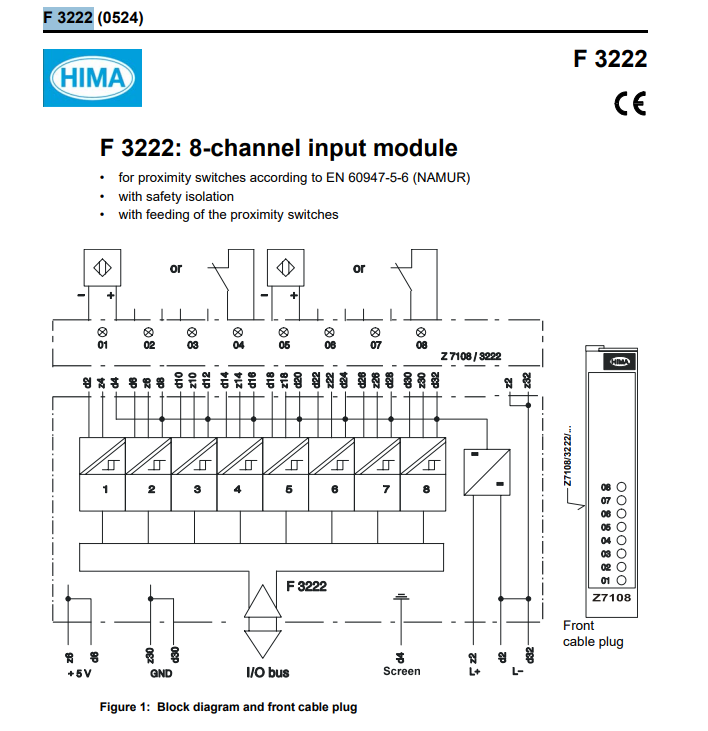

Additionally, the F3222 incorporates industrial-grade design elements such as screen connections to
reduce electromagnetic interference and compatibility with standard I/O bus interfaces, as depicted in
its block diagram . It is important to note that HIMA reserves the right to modify equipment
specifications without prior notice, ensuring the module can adapt to evolving industrial needs while
maintaining core functionality .
Key Specifications
Parameter Category | Parameter | Details |
Basic Information | Product Type | 8-channel input module for proximity switches (per EN 60947-5-6/NAMUR) with safety isolation; includes proximity switch feeding |
| Certification | CE compliant |
| Manufacturer | HIMA (HIMA Paul Hildebrandt GmbH + Co KG) |
Electrical Specifications | Switching Performance | - Switching point: 1.65 mA ± 0.2 mA- Switching current difference: Approx. 0.3 mA- Switching time: Approx. 10 ms |
| Sensor Supply Voltage | 7.7...9 V (for powering proximity switches) |
| Power Supply Requirements | - 5 V DC: 40 mA current draw- 24 V DC: 75 mA current draw |
| Input Current & Signal Logic | - H signal: Input current > 2.1 mA (corresponds to control channel activation)- L signal: Input current < 1.2 mA (corresponds to control channel deactivation)- Input connection: Differential (e.g., d4-d2 for Channel 1, d32-d30 for Channel 8) |
Mechanical Specifications | Number of Input Channels | 8 independent channels |
| Space Requirement | 4 SU (Terminal Equipment units) |
| Cable & Plug Compatibility | - Cable type: LiYY 16×0.5 mm²- Front cable plug: Z7108 (lead marking: Z 7108/3222/C..)- Input terminals: d2-d32 (differential pairs per channel); LED terminals: z4-z30 (per channel status indication) |
