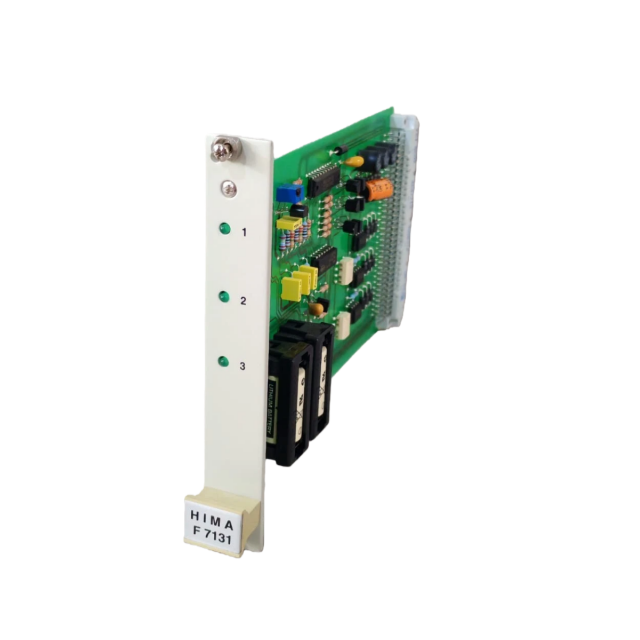

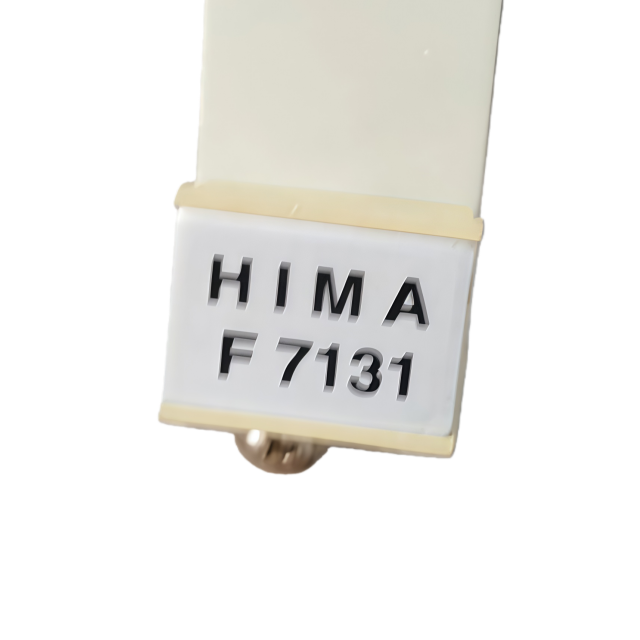

HIMA F7131 POWER SUPPLY MONITORING MODULE

Products information

The HIMA F7131 is a dedicated power supply monitoring module engineered for use with the PES

H51q (Programmable Electronic System), featuring integrated buffer batteries to ensure continuous

voltage monitoring and diagnostic capability. Compliant with CE certification, it is designed to

oversee the system’s 5 V power supply generated by up to 3 power supplies, playing a critical role in

maintaining the reliability of safety-critical industrial systems—such as process control, emergency

shutdown, and automation systems—in sectors like oil & gas, chemical processing, and

manufacturing.

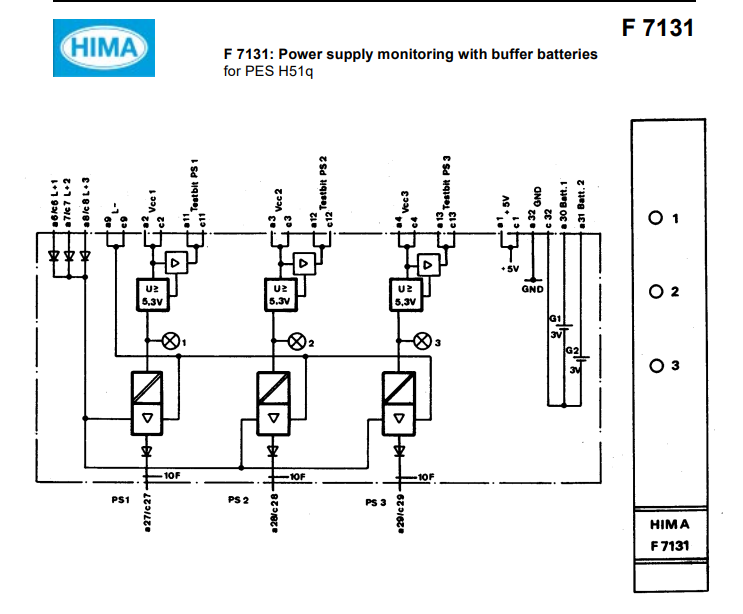

Key to its functionality, the F7131 provides multi-layered power supply supervision: it uses 3 front-

panel LED displays for at-a-glance status visualization, 3 test bits for integration with central modules

(F8650 or F8651) to enable diagnostic display and user program operation, and 3 × 24 V outputs (PS1

to PS3) for monitoring power supply modules in the optional B9361 assembly kit. The module also

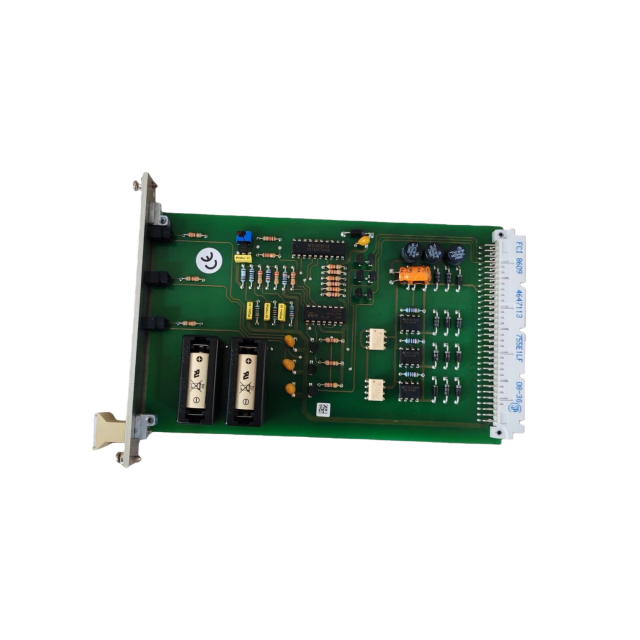

includes buffer batteries to ensure uninterrupted monitoring even during transient power

fluctuations. For long-term reliability, HIMA recommends replacing the buffer batteries every four

years; the specified battery type is CR-1/2 AA-CB (HIMA part no. 44 0000016). With a compact design

requiring just 4 TE (Terminal Equipment units) of space, the F7131 integrates seamlessly into existing

PES H51q setups, providing essential power supply oversight to prevent unexpected system

downtime due to voltage anomalies.

Key Specifications
