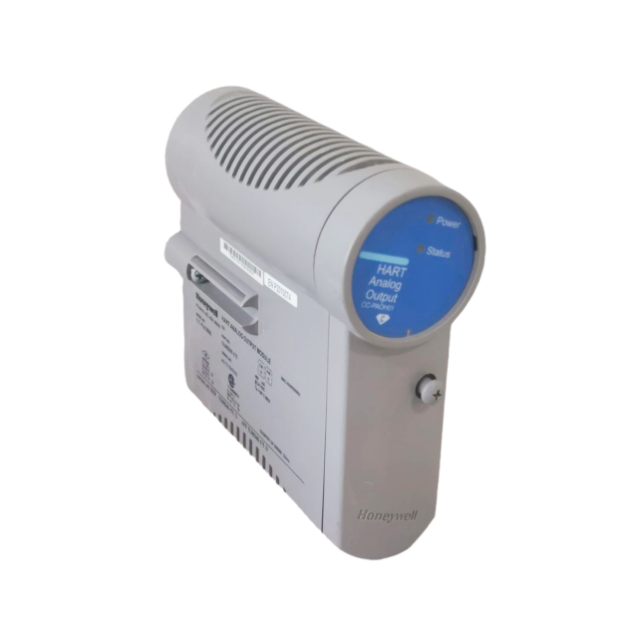

The CC-PAOH01 51405039-176 is an 8-channel analog output module for Honeywell Experion PKS systems using C300 Series I/O. It sends 4–20 mA signals to control valves, valve positioners, dampers, speed drives, and other final control elements. The “H” in CC-PAOH01 indicates HART capability, allowing smart field devices to exchange diagnostic data with the control system.
In process plants, a failed analog output channel can cause a control valve to move to a fail-safe position, disrupt a loop, or force a unit shutdown. A planned maintenance and spare parts strategy is therefore not a back-office activity. It is a direct protection against production loss.
What the CC-PAOH01 Does in a C300 System
The CC-PAOH01 51405039-176 installs on a Honeywell Series C I/O backplane and connects to field wiring through an I/O termination assembly, or IOTA. The controller writes output values to the module, and the module converts those values into loop currents for field devices.
Key function points:
8 analog output channels, typically 4–20 mA
HART-capable communication for smart field instruments
Designed for C300 Controller-based Experion PKS architectures
Used with a compatible Series C analog output IOTA
Module hardware version identified by the full part number 51405039-176
When ordering, always use the complete part number, not just “CC-PAOH01.” Honeywell uses the suffix 51405039-176 to identify the specific hardware build and interface compatibility. If the existing module shows a different suffix, confirm compatibility before cross-referencing.
Common CC-PAOH01 Failure Symptoms
Field symptoms are often the fastest way to identify a developing module problem. In maintenance support work, the most frequent indicators are:
One channel stuck at 4 mA or 20 mA while the controller setpoint changes normally
A valve receiving a constant output despite a changing command
HART polling fails on one loop while other channels continue operating
Channel quality status shows “bad” or “uncertain” in Experion diagnostics
Multiple channels on one module fail at the same time
Module not recognized by the system after a power cycle or replacement
Output oscillation or non-linear response against the commanded value
A single-channel fault usually points to a field wiring problem, termination assembly issue, or a damaged output channel. A multi-channel fault on the same module more often indicates a backplane connection problem, power issue, or a module-level failure.
Preventive Maintenance Checklist
Preventive maintenance for the CC-PAOH01 51405039-176 should focus on the module, the termination assembly, field wiring, and the control cabinet environment.
Check | What to inspect | Recommended frequency |
|---|
Visual inspection | Dust, discoloration, bent connector pins, corrosion | Every 3–6 months |
Termination assembly | Loose field wiring, damaged terminals, shield grounding | Every 6–12 months |
Module seating | Connector fully engaged with Series C backplane | During every cabinet access |
Loop signal verification | Compare actual 4–20 mA output against controller setpoint | Annually or after a channel fault |
HART communication | Poll each channel and confirm no intermittent failures | Annually |
Cabinet environment | Temperature, humidity, airflow, dust ingress | Continuous or monthly log review |
Spare module check | Verify stored spare part number and firmware revision | Before each replacement |
Always follow plant safety procedures and Honeywell C300 documentation before opening an active cabinet. In many plants, I/O maintenance is permitted only under a work permit and with the process loop in manual or bypass.
Spare Parts and Procurement Checklist
A spare parts plan for the CC-PAOH01 51405039-176 should cover the module itself, the matching IOTA, and any field termination components that can be damaged during replacement.
Minimum information to capture before ordering:
Complete module part number: CC-PAOH01 51405039-176
Hardware and firmware revision shown in Experion or on the module label
Existing IOTA part number and style
Number of installed CC-PAOH01 modules in the plant
Criticality of each loop controlled by the module
Plant shutdown window or online replacement permission
Practical spare holding guidance: for critical loops, hold at least one tested spare of each module type. For plants with many C300 I/O nodes, one spare per 25–30 installed analog output modules is a reasonable starting point, adjusted by failure history and loop risk.
When sourcing, avoid suppliers that list only “CC-PAOH01” without the full part number. Missing suffix information creates compatibility risk. Ask for:
Photo of the actual module label
Confirmation of hardware revision
Testing or inspection report
Warranty and return policy
Delivery time and export documentation if required
Joyoung International Trading Co., Limited supplies Honeywell C300 I/O modules including the CC-PAOH01 51405039-176. You can browse the Honeywell spare parts category or contact a support engineer for compatibility confirmation.
Step-by-Step Replacement and Loop Verification
When replacing a CC-PAOH01 51405039-176, a controlled sequence reduces the risk of disturbing other loops.
Identify the failed module and confirm the complete part number before starting.
Place the affected control loop in manual or bypass according to plant procedure.
Verify the replacement module has the same part number and compatible firmware revision.
Inspect the new module for shipping damage and bent connector pins.
Power down or follow the permitted online replacement procedure for your C300 configuration.
Remove the failed module and inspect the backplane connector for dust, corrosion, or damage.
Insert the new module and confirm it is fully seated.
Restore the loop and verify the output signal with a calibrated mA meter.
Confirm HART communication if the field device is HART-enabled.
Close the work order and update the spare parts inventory.
Do not assume online removal is permitted. The exact procedure depends on the Series C I/O configuration, IOTA type, and plant safety rules. Incorrect removal while energized can disturb adjacent channels or create process trips.
Troubleshooting vs. Replacement Decision
Not every output problem requires a new module. A structured check can prevent unnecessary purchases and avoid introducing a new variable into a healthy loop.
If only one channel fails:
Check the field device and wiring first.
Verify loop resistance and supply voltage.
Swap the output to a spare channel on the same module if possible.
If the spare channel works, the original channel is likely damaged.
If multiple channels fail:
Inspect the module seating and backplane connector.
Check the IOTA terminals and field power.
Review Experion diagnostics for module-level alarms.
Replace the module if channel faults persist after wiring is ruled out.
This sequence saves time and money because it separates field problems from module failures. In industrial automation spares work, we see many modules replaced unnecessarily when the root cause was actually a loose termination or a failing field device.
CC-PAOH01 vs. Other Honeywell Analog Output Modules
Honeywell Series C includes different analog output variants. Do not substitute without verification.
CC-PAOH01: HART-capable analog output module, part number 51405039-176
CC-PAOX01: analog output module often used where HART is not required
CC-PAON01: non-HART analog output variant used in specific configurations
The “H” in CC-PAOH01 matters. If your loop relies on HART data from a smart valve positioner or field instrument, replacing with a non-HART module will remove diagnostic capability and may generate configuration mismatches.
For C300 systems, also confirm that the replacement module matches the existing IOTA and controller firmware level. More detailed I/O module selection guidance is available in Joyoung’s industrial I/O module guide.
Storage and Handling of Spare Modules
Spare CC-PAOH01 modules should be stored in a clean, dry environment and kept in anti-static packaging until installation. Poor storage causes more failures than many maintenance teams expect.
Storage rules:
Keep modules in original anti-static bags
Store at normal room temperature with stable humidity
Do not stack heavy objects on module packaging
Mark the storage shelf with the complete part number
Rotate spares if stocked for more than two years without use
Test spare modules during planned shutdowns if storage has been long
A module that has been stored for years may have older firmware. Verify firmware compatibility before installation, especially if the C300 controller has been upgraded in the meantime.
Why Supply Chain Planning Matters
Lead times for Honeywell C300 I/O modules can vary significantly. Plants that wait until failure to order often face extended downtime while documentation, compatibility checks, and shipping are completed.
A proactive order for one or two CC-PAOH01 51405039-176 spares gives maintenance teams immediate replacement capability. It also allows time to source from a reliable supplier and verify the exact hardware revision without production pressure.
At Joyoung International Trading Co., Limited, we support global industrial customers with:
Honeywell CC-PAOH01 51405039-176 spare modules
Compatible Series C I/O termination assemblies
Technical verification of part number and firmware
Fast international delivery and export documentation
Support for PLC, DCS, and turbine control system spare parts
FAQ
How do I know if the CC-PAOH01 module is faulty?
Start with one-channel vs. multi-channel symptoms. If one channel drifts or fails, check field wiring and the field device before condemning the module. If multiple channels fail at once, inspect module seating, termination assembly, and system diagnostics.
Can I replace CC-PAOH01 with CC-PAOX01?
Not without verification. CC-PAOH01 is HART-capable, while CC-PAOX01 may not provide HART communication. Replacing a HART module with a non-HART module can remove diagnostic capability and create configuration mismatches.
Is the CC-PAOH01 51405039-176 hot-swappable?
Honeywell Series C I/O modules are used in industrial processes, but hot-swap permission depends on the C300 configuration, IOTA type, and plant safety rules. Follow your site maintenance procedure before removing a powered module.
What should I check before ordering a spare?
Confirm the complete part number 51405039-176, hardware/firmware revision, existing IOTA part number, and the number of installed modules. Send the module label photo to the supplier if possible.
How many spare modules should I keep?
For critical loops, hold at least one spare of each module type. For plants with many C300 nodes, one spare per 25–30 analog output modules is a practical starting point, adjusted by failure history.
If you need Honeywell CC-PAOH01 51405039-176 stock, compatibility confirmation, or a fast replacement quotation, contact Joyoung International Trading Co., Limited:
We supply industrial automation spare parts for PLC, DCS, and control systems worldwide, with a focus on reliable module availability and fast delivery.
Written by Li Hao, industrial automation spare parts engineer at Joyoung International Trading Co., Limited.
