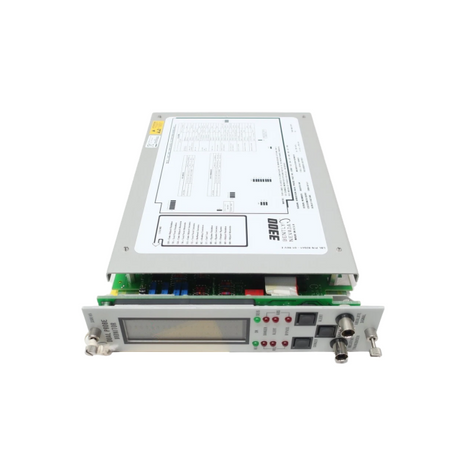

What the Bently Nevada 3300/65 Module Does
The Bently Nevada 3300/65 is a dual-channel temperature monitor module used in the Bently Nevada 3300 machinery monitoring system. It is designed for continuous temperature monitoring of critical rotating and reciprocating equipment, including turbine bearings, compressor thrust pads, gearbox oil, motor windings, and process temperature points.
Depending on the option code, each channel can be configured for RTD or thermocouple inputs. Common configurations include 100 Ω platinum RTDs, 10 Ω copper RTDs, and E, J, K, or T thermocouples. This flexibility allows the same module type to be used for bearing metal temperature and lube oil temperature without replacing the monitoring rack.
After signal conditioning, the 3300/65 provides alarm status and proportional 4–20 mA recorder outputs for each channel. Alarm setpoints are configured in the 3300 system, and channel status is displayed on the front panel.
How the 3300/65 Fits into a 3300 Monitoring System
The 3300/65 is installed in a 3300 series monitor rack, usually alongside vibration, axial position, differential expansion, and speed monitor modules. Power and system communication are supplied through the rack, allowing each monitoring function to be maintained individually.
Before replacing a 3300/65 module, confirm that the new module’s input type and option code match the existing field wiring and configuration. A module configured for a thermocouple will not read correctly when connected to an RTD, and the same applies in reverse.
Industrial Applications
The 3300/65 is used across industries where reliable temperature monitoring protects rotating machinery from thermal damage.
Industry | Typical Application |
|---|
Oil and gas | Centrifugal compressor bearing temperature, lube oil temperature, thrust pad temperature |
Power generation | Steam turbine bearing metal temperature, feed pump lube oil temperature, motor winding temperature |
Petrochemical and chemical | Extruder gearbox oil temperature, reactor agitator bearing temperature |
Steel and metals | Rolling mill drive bearings, motor stator winding temperature |
Pulp and paper | Dryer roll bearings, refiner oil and bearing temperature |
Water and wastewater | Large pump bearings, blower motor winding temperature |
In these applications, the 3300/65 supports early detection of overheating, oil degradation, and bearing damage before mechanical failure occurs.
Replacement and Sourcing Considerations for Legacy Systems
The 3300 series is a legacy monitoring platform, but many plants continue to operate it because the rack, field wiring, and setpoint configuration remain stable. When a 3300/65 module needs replacement, the key challenge is matching the original input configuration and option code.
Before ordering, verify:
Full part number and suffix
Input type: RTD or thermocouple
Specific RTD type or thermocouple type
Rack slot and field connection arrangement
Alarm setpoints and recorder output range
Any required plant test or inspection documentation
Not every unit labeled 3300/65 is identical. Working with a supplier that understands 3300 series configuration reduces the risk of channel mismatch, incorrect alarm settings, and unnecessary downtime during commissioning.
Common Installation and Inspection Checks
After receiving a replacement 3300/65 module, maintenance teams should perform the following checks:
Follow plant LOTO procedures before inserting or removing the module.
Confirm that field wiring matches the module’s input type.
Check RTD lead wire configuration or thermocouple polarity.
Verify that alarm setpoints and relay behavior match the original module.
Compare the front panel reading and recorder output against a known temperature reference.
Keep the old module until the replacement passes a 24–48 hour verification run.
Sourcing Bently Nevada 3300/65 Replacement Modules
Joyoung International Trading Co., Limited supplies industrial automation spare parts, including Bently Nevada 3300 series monitoring modules. We support plants with compatibility checks, module testing, and fast delivery to help reduce monitoring system downtime.
Contact our technical support team at chen@htechplc.com or +86-181-5013-7565 to verify the correct 3300/65 option code, availability, and delivery time.
For more Bently Nevada monitoring module options, visit Bently Nevada spare parts.
FAQ
Is the Bently Nevada 3300/65 still available as a new module?
The 3300 series is a legacy platform, so new original stock is limited. Many plants source tested, reconditioned, or new old stock modules through industrial spare parts suppliers.
Can a 3300/65 configured for an RTD be used with a thermocouple input?
No. The input type must match the option code and field wiring. Using the wrong input type can produce incorrect readings, false alarms, or no reading at all.
How do I confirm the input type of an existing 3300/65 module?
Check the full part number and suffix, the module label, and the original wiring drawings. If the label is damaged, a supplier with Bently Nevada legacy experience can help identify the configuration from photos or rack records.
