Controller Chassis (T8100) Technical Overview

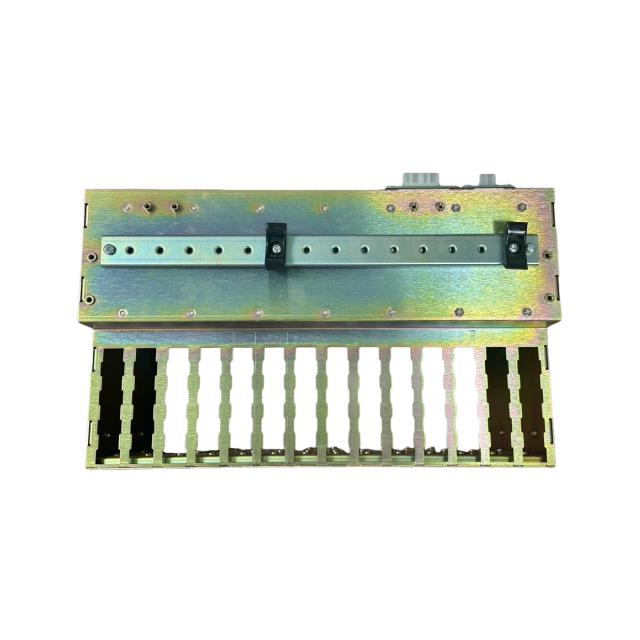

1. Chassis Mounting Options

The controller chassis supports multiple mounting configurations to adapt to different industrial environments:

• Swing Frame Mounting: Allows for easy access to internal modules by enabling the chassis to swing open,

  simplifying maintenance and module replacement.

• Fixed Frame Mounting: Provides a stable, stationary installation for scenarios where frequent access is not

  required.

• Panel (Rear) Mounting: Achievable with the optional panel mounting kit T8380, which includes a pair of

  brackets with rear-facing ears. This configuration is ideal for integrating the chassis into custom control panels or

enclosures.

2. Module Capacity & Configuration

• Processor Modules: Up to two TMR (Triple Modular Redundancy) processor modules can be installed, ensuring high availability and fault tolerance.

• I/O & Interface Modules: Up to eight I/O or interface modules can be accommodated, supporting a wide range of digital, analog, and communication functionalities.

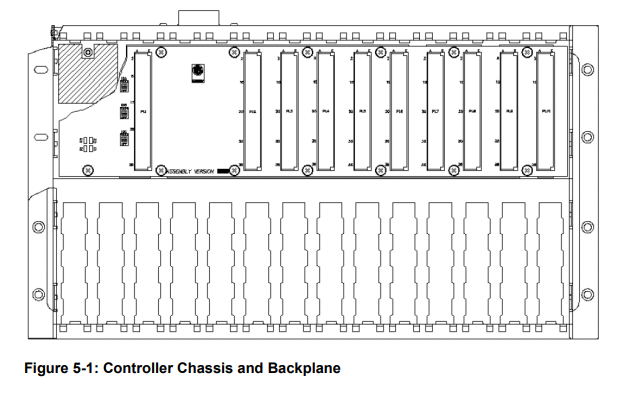

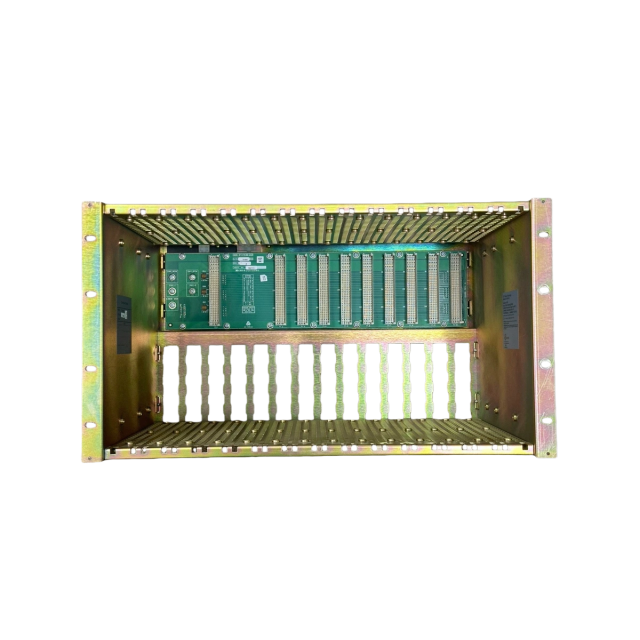

3. Inter-Module Bus (IMB) Backplane

The IMB backplane is a critical component of the chassis, serving as the electrical backbone:

• Electrical Interconnection: It facilitates communication and power distribution between all installed modules.

• Data Transfer Performance: The IMB supports a maximum data transfer rate of 150Mbaud, ensuring fast and

  reliable data exchange between modules.

• Serviceability Note: There are no user-serviceable parts inside the chassis, meaning maintenance or repairs to the

  backplane and internal infrastructure should be performed by qualified personnel.

4. Slot Positions & Logical Numbering

Module slots are structured to support specialized and standard module types, with defined logical numbering for

configuration and management:

• TMR Processor Slots: The two left-most slots are triple-width to accommodate TMR processors. The first slot is

  designated logical 0, and the adjacent slot is logical 15.

• I/O & Interface Slots: The remaining slots (logical 1 to 8, left to right) are used for I/O and interface modules.

  These slots are referenced in both the system configuration manager and I/O configuration manager (detailed in

  Sections 8 and 9 of the full technical documentation).

5. Module Installation Procedure

To ensure proper and secure installation of modules into the chassis:

• Sliding & Engagement: Insert modules by carefully sliding them into their designated slots. Ensure the U-

  channels on the top and bottom casings of the module engage with the raised guides on the upper and lower

  chassis plates.

• Ejector Levers: Each module is equipped with ejector levers that must be used to secure the module within the

  chassis, preventing dislodgement and ensuring reliable electrical contact.

6. External Power Connection

Redundant +24Vdc power is supplied to the chassis via dedicated connectors, ensuring uninterrupted operation:

• Power Connectors: The 24Vdc input power connectors are located at the rear top of the chassis (see Figure 5-2:

  Power Connection). One connector is visible in the top view, and the second is illustrated in the right-hand side

  view.

• Redundant Power Distribution: Redundant power is distributed to all modules within the chassis through the

  backplane, ensuring that a single power supply fault does not disrupt system operation.
