Communications Interface Adapter (T8153) Technical Overview

1. Module Role & Function

The Communications Interface Adapter (T8153) acts as a connectivity hub, providing physical access to

the communication ports of communications interface and gateway modules. It connects directly to the rear

of these modules, serving as the interface between the modules and external devices/network infrastructure.

2. Physical Design & Installation

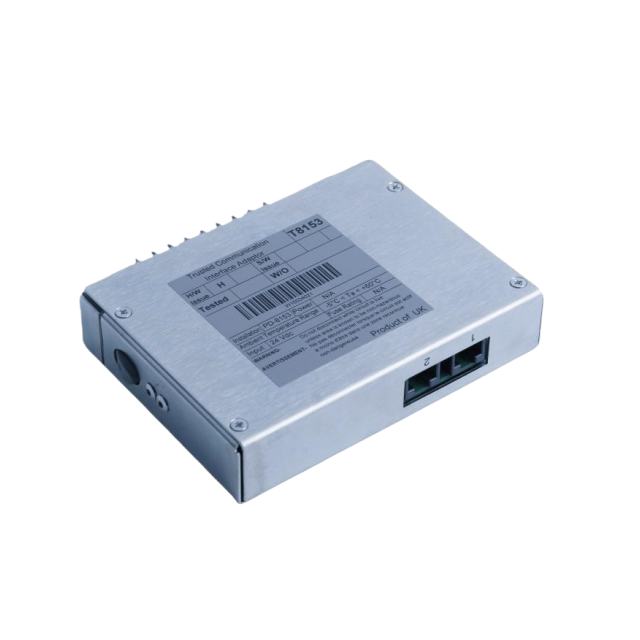

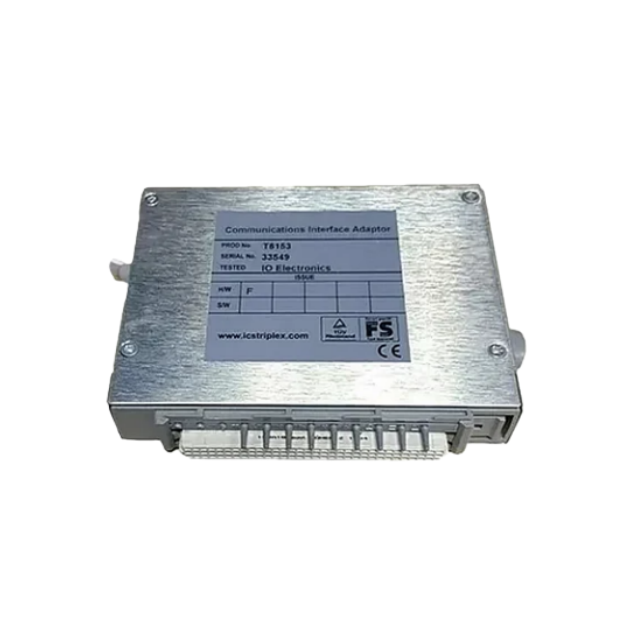

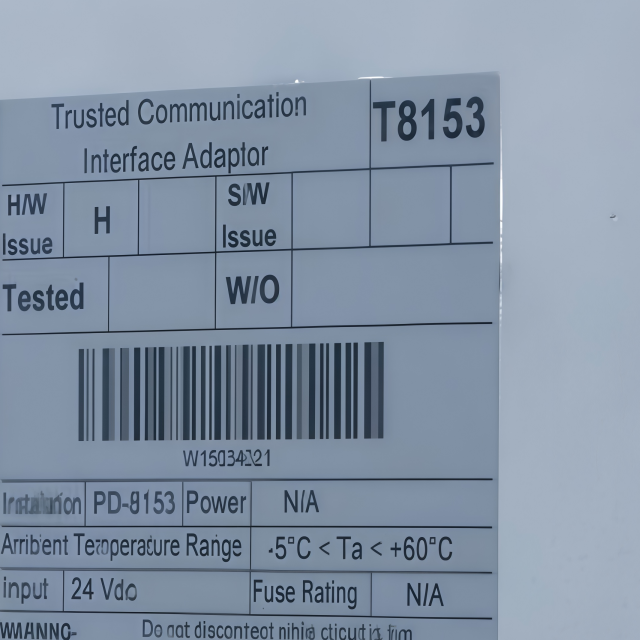

As shown in Figure 5-11: Communication Interface Adapter, the adapter features a robust metallic design

for industrial environments. It mounts directly to the rear of communications interface or gateway modules,

ensuring secure and reliable port access.

3. Port Types & Connectivity Options

The adapter offers a diverse range of physical connections to support various communication standards and

peripherals:

Ethernet Connections:

Two 10Base2 Ethernet connections (supporting coaxial cable networks).

Two 10BaseT connections (for twisted-pair Ethernet networks).

Serial Connections:

Four RS422/485 connections (supporting multi-point, differential serial communications).

Two RS232 connections (for point-to-point serial communications).

Peripheral Connections: Interfaces for gateway peripherals, including keyboard, mouse, and monitor,

enabling local interaction with gateway modules.

4. Documentation Reference

For detailed information on connectors and pin-outs, refer to PD-8153, which provides comprehensive

specifications for wiring and interfacing with the T8153 adapter.

5. Role in System Architecture

By centralizing and standardizing access to diverse communication ports, the T8153 adapter simplifies

integration of communications interface and gateway modules into industrial control systems. It ensures

compatibility with legacy (e.g., RS232/485) and modern (Ethernet) communication technologies, while

also supporting peripheral devices for local management of gateway functions.
