Core Product Overview
| Attribute | Details |
| Product Model | 3604E |
| Product Type | Digital Output (DO) Module |
| Compatible Platform | Triconex DCS |
| Signal Type | 24 V DC Digital Output |
| Channel Configuration | 16 channels (single motherboard); 32 channels (dual motherboards) |
Description:The Triconex 3604E (a brand under Schneider Electric, formerly part of Invensys) is a high-
performance, SIL 3-certified digital output module.
It is exclusively designed for integration with Pepperl+Fuchs (P+F) KF-module motherboards, and
tailored for Triconex Tricon series fault-tolerant control systems and safety instrumented systems (SIS).
The 3604E delivers reliable 24 V DC discrete output control with 16 channels, which can be expanded
to 32 channels with dual P+F motherboards.
The 3604E adopts Triple Modular Redundancy (TMR) technology, ensuring fault-safe operation for
critical industrial applications that require intrinsic safety, high reliability, and seamless system
compatibility.
Below is a structured, visually refined breakdown of the 3604E’s core specifications, integration
details, and operational parameters.
The 3604E is widely used in industrial fields that require high-reliability overspeed protection for
critical rotating machinery.
Its typical applications include gas turbines, steam turbines, compressors, pumps, and power
generation equipment.
The 3604E is especially suitable for harsh industrial environments with extreme temperatures (-20 °C
to +65 °C) and vibration, providing stable and reliable protection to minimize equipment downtime
and maintenance costs.

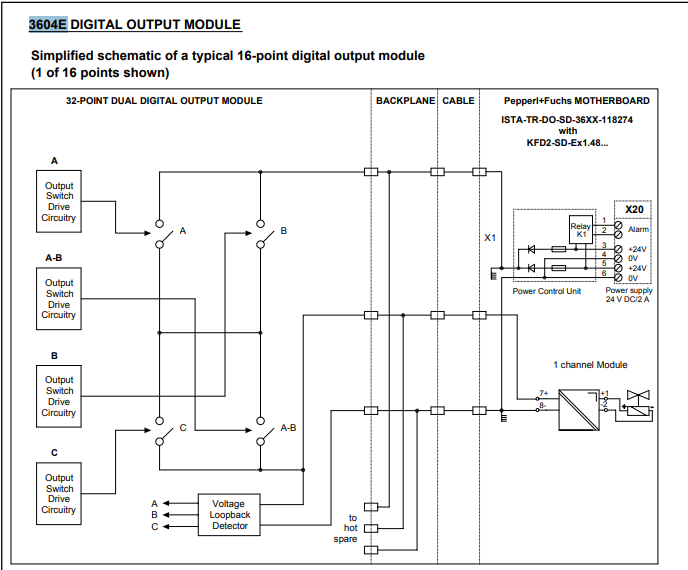

![3604E(1)]()

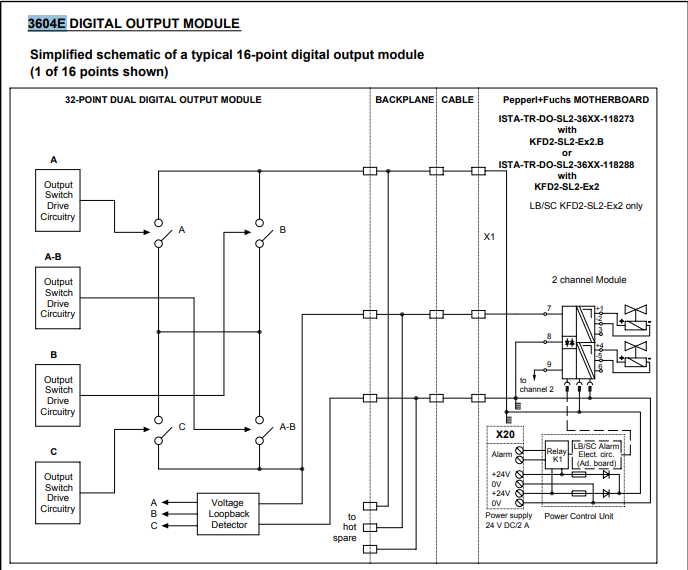

![3604E(2)]()
Physical & Environmental Specifications
| Specification | Details |
| Package Weight | 0.5 kg |
| Package Dimensions (H×W×L) | 190 mm × 60 mm × 35 mm |
| Operating Temperature Range | -40°C to 70°C (extended range: -40°C to 85°C for select models) |
| Storage Temperature Range | -40°C to 85°C |
