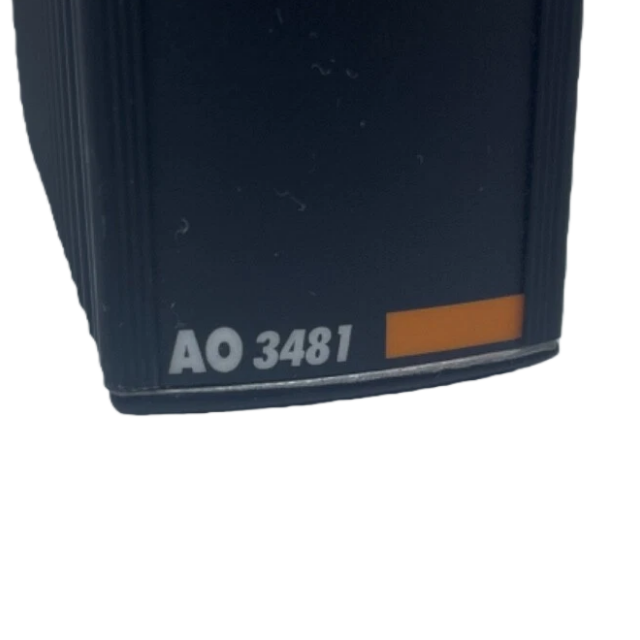

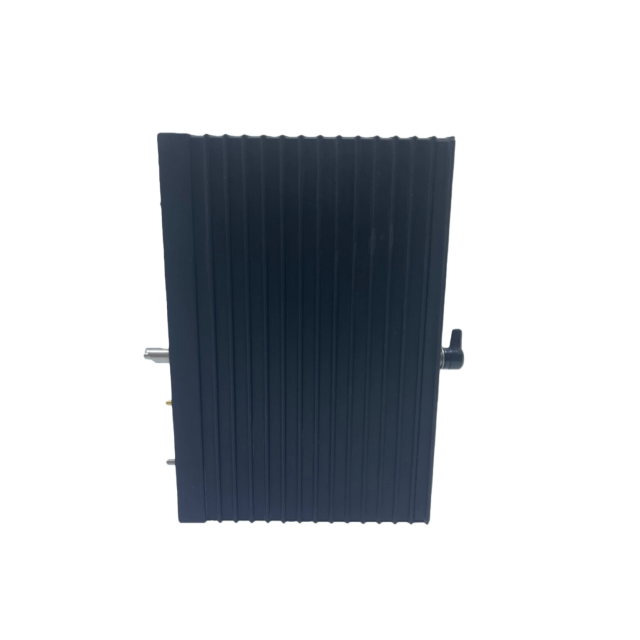

Information About Invensys Triconex Model AO3481 Communication Module
1. Basic Overview of Model AO3481 Communication Module
The Invensys Triconex Model AO3481 is a specialized communication module designed to facilitate reliable data exchange between Tricon v9–v10 safety instrumented systems (SIS) and external devices, networks, or distributed control systems (DCS). As a critical component of Tricon’s communication infrastructure, it serves as a bridge between the Tricon controller’s core processing units (Main Processors) and external systems—enabling seamless transmission of process data, diagnostic information, and control commands. Engineered for safety-critical industrial environments (such as petrochemical refineries, nuclear power plants, and oil & gas pipelines), the AO3481 prioritizes fault tolerance, data integrity, and compliance with industrial communication standards. It supports multiple communication protocols and physical interfaces, making it versatile for integrating Tricon systems into existing plant networks while maintaining the high reliability required for safety-related applications.
2.1 Multi-Protocol Support
A defining feature of the AO3481 is its support for a range of industry-standard communication protocols, ensuring compatibility with diverse external systems. Core supported protocols include Modbus (RTU and TCP/IP), which is widely used for communication with Modbus masters (e.g., HMI workstations, SCADA systems) and slaves (e.g., remote I/O devices). The module also supports Triconex-specific Peer-to-Peer (P2P) communication, enabling direct data exchange between multiple Tricon controllers—critical for distributed safety systems where synchronized data sharing between controllers is essential. Additionally, the AO3481 may include support for protocols such as Ethernet/IP or Profinet (depending on configuration), allowing integration with modern industrial Ethernet networks. This multi-protocol capability eliminates the need for additional gateway devices, simplifying system architecture and reducing potential points of failure.
2.2 Redundant Communication Paths
To ensure uninterrupted communication—even in the event of a component failure—the AO3481 incorporates redundant communication paths. The module typically features dual physical interfaces (e.g., two Ethernet ports or two serial ports) that operate independently. If one interface experiences a fault (such as a cable disconnection or port failure), the module automatically switches to the redundant path without disrupting data transmission. This redundancy aligns with Tricon’s overall fault-tolerant design philosophy, ensuring that communication-related failures do not compromise the safety or availability of the Tricon SIS. Additionally, the module’s internal circuitry (including transceivers and signal processors) is designed with redundancy in key components, further enhancing its ability to withstand faults.
2.3 High-Speed Data Transmission
The AO3481 is optimized for high-speed data transmission to meet the real-time requirements of safety-critical applications. For Ethernet-based protocols (e.g., Modbus TCP/IP), the module supports data rates of up to 100 Mbps, enabling fast transfer of large datasets such as process variables, alarm logs, and diagnostic information. Serial-based protocols (e.g., Modbus RTU) support baud rates up to 115.2 kbps, ensuring reliable communication with legacy devices that operate at lower speeds. The module also incorporates data buffering and prioritization mechanisms—critical process data (e.g., safety trip signals) is prioritized over non-essential data (e.g., historical logs), ensuring that time-sensitive information is transmitted without delay. This high-speed performance is essential for applications where rapid decision-making (such as emergency shutdowns) depends on timely data exchange.
2.4 Robust Industrial Design
Built to withstand the harsh conditions of industrial environments, the AO3481 features a rugged mechanical and electrical design. The module is housed in a metal enclosure that provides protection against physical damage, dust, and electromagnetic interference (EMI). It complies with industrial environmental standards, including an operating temperature range of 32°F to 140°F (0°C to 60°C) and a relative humidity range of 5% to 95% (non-condensing), making it suitable for installation in control rooms, outdoor enclosures (with proper protection), or hazardous location peripheries. The module’s electrical components are rated for overvoltage and surge protection, safeguarding against power grid fluctuations and transient voltage events common in industrial settings. Additionally, the module’s connectors are designed for secure, vibration-resistant mating—preventing accidental disconnections caused by mechanical vibration or maintenance activities.
2.5 Integrated Diagnostics
The AO3481 includes comprehensive built-in diagnostic capabilities to monitor its operational status and detect potential issues early. The module continuously self-tests key components (such as transceivers, protocol processors, and power regulators) and reports diagnostic data to the Tricon Main Processors via the Tricon communication bus. Diagnostic information includes:
Interface Status: Whether each communication port is active, connected, or experiencing errors (e.g., CRC errors, frame loss).
Protocol Health: Detection of protocol-specific issues (e.g., Modbus exception codes, TCP/IP connection timeouts).
Power Status: Voltage levels and power supply stability for the module’s internal circuits.
Fault Logging: Storage of historical fault data (including timestamps) for troubleshooting.
This diagnostic data is accessible via TriStation software or external HMI systems, allowing operators and maintenance personnel to quickly identify and resolve communication issues—minimizing downtime and ensuring system availability.
3. Installation Guidelines for Model AO3481 Communication Module
3.1 Pre-Installation Preparation
Before installing the AO3481, thorough preparation is necessary to ensure compatibility and safe operation:
Compatibility Verification: Confirm that the AO3481 is compatible with the Tricon system version (v9–v10.x) and the target external systems (e.g., DCS, HMI, or remote I/O). Check the Tricon Product Release Notes to verify firmware compatibility—if the module’s firmware is outdated, update it using TriStation software before installation.
Chassis Slot Validation: The AO3481 must be installed in a dedicated communication slot (COM slot) in the Tricon Main Chassis or Expansion Chassis (Chassis 2 only, as per Tricon communication rules). Ensure the slot is equipped with the correct slot keys (refer to Tricon system documentation for key specifications) to prevent incorrect module installation.
Tool and Hardware Preparation: Gather necessary tools, including a torque wrench (for securing module fasteners), screwdrivers, and cable crimping tools (if terminating communication cables). Prepare compatible communication cables (e.g., Cat5e/Cat6 for Ethernet, shielded twisted-pair for serial) and termination hardware (e.g., RJ45 connectors, DB9 connectors).
Safety Precautions: If installing the module in a live Tricon system (online replacement), ensure the system is operating in a fault-tolerant state (e.g., all Main Processors are active, redundant communication paths are available). Wear appropriate PPE (safety glasses, insulated gloves) if working near energized components.
3.2 Module Installation
The AO3481 is installed in the Tricon chassis using the following steps:
Slot Preparation: Ensure the target communication slot is empty and free of debris. If a blank panel is installed, remove it by loosening the retractable fasteners and sliding it out of the chassis.
Module Alignment: Hold the AO3481 by its front panel (avoid touching the circuit board or connectors) and align it with the slot guides. Ensure the module’s keyway matches the slot keys to prevent misalignment.
Seating the Module: Slide the module into the slot until it makes contact with the chassis backplane. Push firmly to ensure the module’s backplane connectors are fully mated—this is critical for establishing communication with the Tricon Main Processors.
Securing the Module: Tighten the module’s retractable fasteners to the recommended torque (10 inch-pounds) using a torque wrench. Over-tightening can damage the module or chassis, while under-tightening may cause intermittent connections due to vibration.
3.3 Communication Cable Routing and Termination
Proper cable routing and termination are essential for reliable communication with the AO3481:
Cable Selection: Use shielded cables for all communication paths to minimize EMI. For Ethernet, use Cat5e or Cat6 cables (maximum length 328 feet (100 meters) for 100BASE-TX). For serial protocols (e.g., Modbus RTU), use shielded twisted-pair cables (maximum length 4000 feet (1220 meters) for RS-485).
Cable Routing: Route cables away from power cables (e.g., 120VAC/230VAC power lines) to avoid EMI interference. Use cable management features (e.g., cable trays, tie wraps) to secure cables and prevent strain on the module’s connectors.
Connector Termination: Terminate cables to the AO3481’s front-panel connectors (e.g., RJ45 for Ethernet, DB9 for serial) according to the module’s pin-out specifications (refer to Tricon communication documentation). For shielded cables, connect the shield to the chassis ground at both ends to prevent ground loops—except in cases where ground potential differences exist, in which case ground the shield at one end only.
Redundant Path Setup: If using redundant communication paths, terminate both cables (e.g., two Ethernet cables) to the module’s dual interfaces. Configure the external system (e.g., DCS) to use both paths for failover.
3.4 Post-Installation Configuration
After physical installation, configure the AO3481 using TriStation software:
Module Identification: Launch TriStation and connect to the Tricon controller. Verify that the AO3481 is detected in the chassis slot and that its firmware version is compatible with the system.
Protocol Configuration: Select the communication protocol (e.g., Modbus TCP/IP, Peer-to-Peer) for each interface. Configure protocol-specific settings, such as IP address (for Ethernet), baud rate (for serial), parity, stop bits, and Modbus address.
Data Mapping: Map Tricon system variables (e.g., I/O points, diagnostic variables) to communication data registers (e.g., Modbus holding registers, input registers) to enable data exchange with external systems. Ensure critical safety variables are mapped with read/write permissions appropriate for their function (e.g., read-only for safety trip status, write-only for authorized control commands).
Redundancy Setup: Enable redundant communication path failover in TriStation. Configure parameters such as failover delay and retry count to optimize performance.
Testing: Perform communication tests to verify data transmission. Use TriStation’s diagnostic tools to check for successful data exchange, and test failover by disconnecting one communication path to ensure the module switches to the redundant path without data loss.
4. Operation and Functional Capabilities
4.1 Data Transmission Modes
The AO3481 supports two primary data transmission modes to accommodate different application needs:
Cyclic Data Transmission: Critical process data (e.g., analog input values, digital output states) is transmitted at fixed intervals (configurable via TriStation, typically 100 ms to 1 second). This ensures external systems receive updated data in real time, enabling continuous monitoring and control.
On-Demand Data Transmission: Non-critical data (e.g., historical logs, diagnostic reports) is transmitted only when requested by an external system (e.g., via a Modbus read command). This reduces network traffic and prioritizes bandwidth for time-sensitive data.
The module also supports event-triggered transmission, where specific events (e.g., alarm activation, fault detection) trigger immediate transmission of related data to external systems—ensuring operators are alerted to critical conditions without delay.
4.2 Fault Tolerance and Failover
The AO3481’s fault-tolerant design ensures communication remains available even during component or path failures:
Interface Failover: If one communication interface (e.g., Ethernet Port 1) fails, the module automatically switches to the redundant interface (Ethernet Port 2) within milliseconds. The failover is transparent to external systems, as the module maintains consistent IP addresses or protocol identifiers for both paths.
Module Redundancy: For high-availability systems, the AO3481 can be paired with a hot-spare module in an adjacent chassis slot. The hot-spare module continuously synchronizes configuration and data with the active module. If the active module fails, the hot-spare assumes control within seconds—no manual intervention is required.
Error Handling: The module detects communication errors (e.g., CRC errors, frame corruption) and automatically retries transmission. If retries fail, it logs the error and switches to the redundant path (if available). Error logs are sent to the Tricon Main Processors for monitoring and troubleshooting.
4.3 Security Features
To protect against unauthorized access and data tampering—critical for safety-critical systems—the AO3481 includes basic security features:
Access Control: Configure read/write permissions for communication registers via TriStation. For example, restrict write access to safety-related variables to authorized external systems only.
Protocol Security: For Ethernet-based protocols, support for TCP/IP port filtering allows limiting communication to specific ports (e.g., Modbus TCP port 502), reducing the risk of unauthorized protocol access.
Data Integrity Checks: The module uses checksum algorithms (e.g., CRC for Modbus) to verify the integrity of transmitted data. Corrupted data is rejected, and the module requests retransmission—preventing invalid data from affecting system operation.
5. Maintenance and Troubleshooting
5.1 Routine Maintenance
Regular maintenance of the AO3481 ensures long-term reliability:

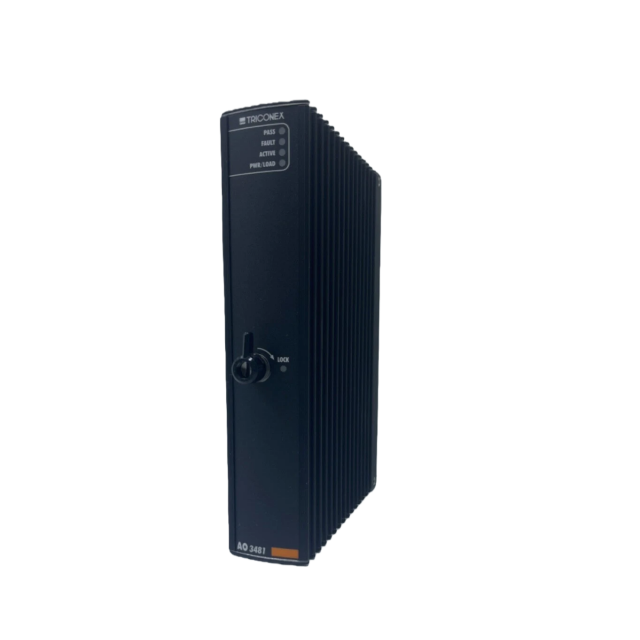

Visual Inspection: Conduct monthly visual checks to verify the module’s status indicators (Pass, Fault, Active) are in the normal state (Pass and Active illuminated, Fault off). Inspect communication cables and connectors for damage, corrosion, or loose connections.
Firmware Updates: Periodically check for firmware updates on the Invensys Triconex support portal. Update the AO3481’s firmware during scheduled maintenance windows to address bugs, improve performance, and add new features—ensure firmware compatibility with the Tricon system version before updating.
Diagnostic Review: Use TriStation to review the module’s diagnostic logs monthly. Look for recurring errors (e.g., frequent failovers, CRC errors) and address root causes (e.g., replace faulty cables, resolve ground loops).
Cleaning: Clean the module’s front panel and connectors quarterly using a dry, lint-free cloth. Avoid using cleaning solvents, as they may damage the module’s finish or components.
5.2 Troubleshooting Common Issues
If communication issues arise with the AO3481, follow this systematic troubleshooting approach:
Indicator Check: First, check the module’s front-panel indicators. A lit Fault indicator indicates an internal module fault (e.g., power failure, processor error)—replace the module if this occurs. A lit Active indicator with no data transmission suggests a configuration or cable issue.
Cable and Connector Testing: Disconnect and reconnect communication cables to ensure secure mating. Use a cable tester to verify cable continuity and check for shorts or opens. For Ethernet, use a network tester to confirm IP connectivity and check for packet loss.
Protocol Validation: Use TriStation to verify the module’s protocol configuration (e.g., IP address, baud rate) matches the external system. Check for conflicting settings (e.g., duplicate IP addresses, mismatched Modbus addresses) that may prevent communication.
Redundancy Check: If using redundant paths, disconnect one path to test failover. If failover does not occur, verify redundancy settings in TriStation and ensure the external system is configured to support failover.
Diagnostic Log Analysis: Review the module’s diagnostic logs in TriStation to identify specific errors (e.g., Modbus exception code 3, TCP connection refused). Use these errors to pinpoint issues (e.g., exception code 3 indicates an invalid register address, connection refused indicates a firewall block).
External System Check: Test communication with the external system using a third-party tool (e.g., Modbus scanner for Modbus protocols) to determine if the issue lies with the AO3481 or the external system. If the third-party tool cannot communicate, the issue is likely with the module or cables; if it can communicate, the issue is with the external system’s configuration.
For unresolved issues, contact Invensys Triconex technical support, providing details such as module firmware version, diagnostic logs, and test results.
6. Safety and Compliance Considerations
6.1 Safety-Critical Application Guidelines
When using the AO3481 in safety-critical applications (e.g., emergency shutdown systems), adhere to these guidelines:
Redundancy Mandate: Always use redundant communication paths (dual interfaces or hot-spare modules) to ensure communication availability during faults—single-point communication failures must not prevent safety actions (e.g., trip signals) from being transmitted.
Data Integrity: Configure the module to use data integrity checks (e.g., CRC) for all safety-related data. Ensure external systems validate received data before acting on it (e.g., cross-check trip signals with redundant sources).
Access Restrictions: Restrict write access to safety-related variables to authorized systems only. Use TriStation to disable write permissions for critical variables (e.g., emergency shutdown commands) unless explicitly required.
Testing: Perform periodic proof tests of the communication path for safety variables. For example, trigger a test trip signal and verify it is received by the external system within the required time frame (typically <1 second for safety-critical signals).
6.2 Compliance with Industrial Standards
The AO3481 is designed to comply with key industrial standards to ensure safe and reliable operation:
Functional Safety: Complies with IEC 61508 (SIL 1–3) for safety-related systems, ensuring it meets the reliability requirements for safety-critical applications.
EMC Compliance: Meets IEC 61000-4 standards for electromagnetic compatibility, including immunity to electrostatic discharge (ESD), radiated fields, and fast transients—preventing EMI from disrupting communication.
Hazardous Locations: For installations in hazardous locations (e.g., Class I, Division 2, Zone 2), the AO3481 is certified to FM, CSA, and ATEX standards when installed in approved enclosures. Ensure the module is used with compatible hazardous location accessories (e.g., explosion-proof cable glands).
6.3 Maintenance Safety
When performing maintenance on the AO3481, follow these safety practices:
Lockout/Tagout (LOTO): If the module is being replaced in a live system, ensure the Tricon controller is in a safe state (e.g., process offline, safety functions disabled) and apply LOTO to the chassis power supply to prevent accidental energization.
Electrostatic Discharge (ESD) Protection: Wear an ESD wristband grounded to the chassis when handling the module to prevent ESD damage to internal components. Store the module in an ESD-protective bag when not installed.
Authorized Personnel Only: Only trained, authorized personnel should perform maintenance on the AO3481. Ensure personnel are familiar with Tricon system operation and safety procedures.
