Information About Invensys Triconex Model 7400209-010 Baseplate
1. Basic Overview of Model 7400209-010 Baseplate

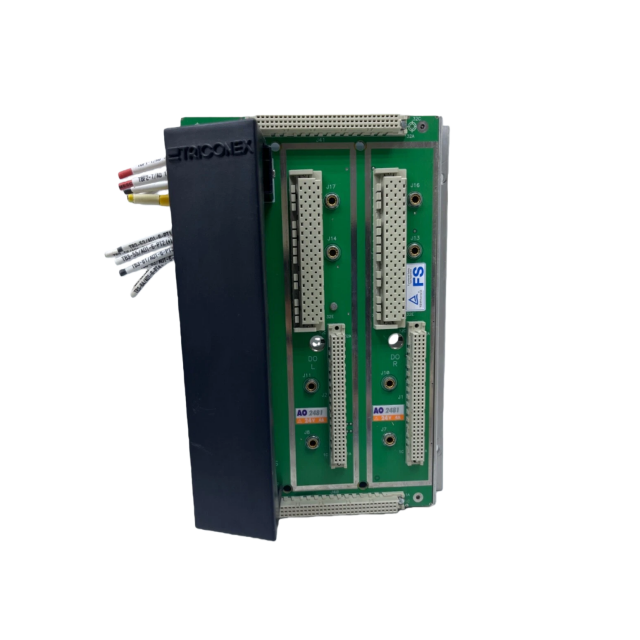

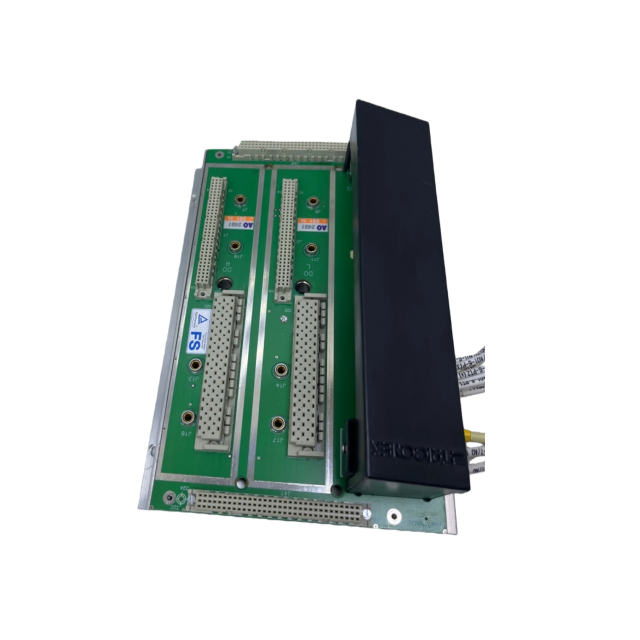

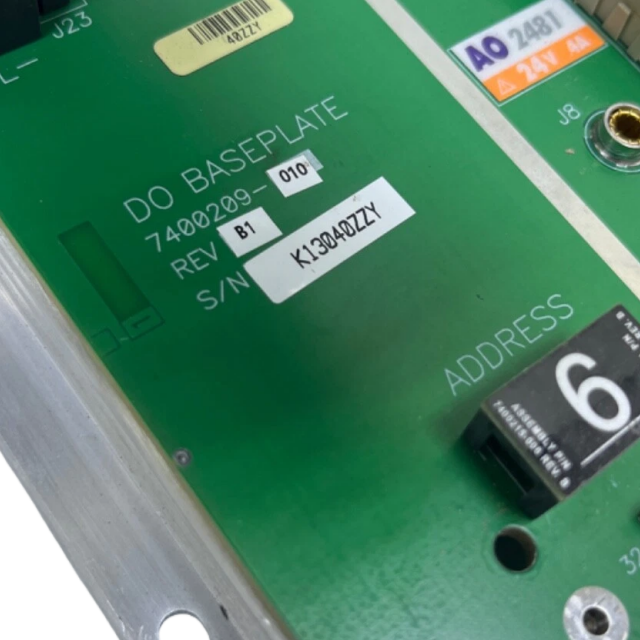

The Invensys Triconex Model 7400209-010 is a specialized baseplate designed as a foundational mounting component for Tricon v9–v10 controller systems, particularly tailored to support Tricon chassis (including Main Chassis, Expansion Chassis, and RXM Chassis) in industrial installations. Serving as an intermediary between the installation surface (such as control room floors, equipment racks, or custom enclosures) and the Tricon chassis, this baseplate plays a critical role in ensuring stable, secure, and aligned mounting of core system components. Engineered to meet the rigorous mechanical and environmental demands of safety-critical applications—including nuclear power plants, petrochemical refineries, and oil & gas facilities—the 7400209-010 Baseplate enhances system reliability by mitigating vibrations, preventing chassis misalignment, and simplifying installation and maintenance workflows. Its robust construction and precision design make it an essential accessory for ensuring long-term operational integrity of Tricon controller systems.
2. Key Design Features of Model 7400209-010 Baseplate
2.1 Robust Construction and Material Selection
The Model 7400209-010 Baseplate is fabricated from high-grade steel, chosen for its exceptional strength, durability, and resistance to corrosion—critical properties for withstanding the harsh conditions of industrial environments. The steel is typically treated with a corrosion-resistant coating (such as zinc plating or powder coating) to protect against rust and degradation caused by moisture, dust, or chemical exposure. This construction ensures the baseplate can support the weight of fully loaded Tricon chassis (which can exceed 160 lbs (72.6 kg) for a typical loaded Main Chassis) without bending, warping, or structural fatigue over time. The baseplate’s material and design also contribute to vibration dampening, reducing the transmission of external vibrations (from nearby rotating machinery or plant equipment) to the Tricon chassis and internal modules—this is vital for maintaining the accuracy of sensitive components like Main Processors and analog I/O modules.
2.2 Precision Mounting and Alignment
A core design focus of the 7400209-010 Baseplate is precision mounting to ensure Tricon chassis are aligned correctly with backplane connectors, cabling, and auxiliary components. The baseplate features pre-drilled mounting holes that are precisely positioned to match the bolt patterns of Tricon chassis (e.g., Model 8110 Main Chassis, Model 8111 Expansion Chassis), eliminating the need for on-site drilling or modification. These holes are sized to accommodate standard mounting hardware (typically 1/4-inch or 5/16-inch bolts) and include countersinks to ensure bolts sit flush with the baseplate surface, preventing interference with chassis installation. Additionally, the baseplate incorporates alignment pins or guide rails (depending on configuration) that help position the chassis accurately during installation, reducing the risk of misalignment that could damage backplane connectors or disrupt module communication. This precision alignment is especially important for systems with multiple interconnected chassis, as it ensures consistent spacing for I/O bus cables and simplifies the process of expanding the Tricon system.
2.3 Vibration Isolation and Stability
To protect Tricon controller components from the adverse effects of mechanical vibration— which can cause loose connections, data corruption, or premature component failure—the 7400209-010 Baseplate integrates vibration isolation features. These may include rubber or elastomeric grommets installed at the mounting points between the baseplate and the installation surface, or between the baseplate and the chassis. These grommets absorb and dampen vibrations, preventing them from being transmitted to the chassis and internal modules. The baseplate’s wide footprint (typically matching or slightly exceeding the width of the Tricon chassis) also enhances stability by distributing the chassis weight evenly across the installation surface, reducing the risk of tipping or shifting due to sudden impacts or vibration. For installations in high-vibration environments (such as near compressors or pumps), the baseplate can be paired with additional vibration dampening accessories (e.g., heavy-duty isolation pads) to further enhance system stability.
2.4 Compatibility with Installation Surfaces
The Model 7400209-010 Baseplate is designed to be versatile, supporting installation on a variety of common industrial surfaces. It can be mounted directly to concrete floors (using anchor bolts), raised control room floors (via floor brackets), or standard 19-inch EIA equipment racks (by aligning with rack mounting rails). The baseplate’s pre-drilled holes are spaced to accommodate different installation requirements—for floor mounting, holes are positioned to match typical anchor bolt layouts, while for rack mounting, holes align with standard rack rail hole patterns (e.g., 1.75-inch vertical spacing). This versatility eliminates the need for custom mounting solutions, reducing installation time and ensuring compatibility with existing plant infrastructure. Additionally, the baseplate’s low profile (typically 0.5 to 1 inch (1.3 to 2.5 cm) in height) ensures it does not significantly increase the overall footprint of the Tricon system, making it suitable for installations with space constraints.
3. Installation Guidelines for Model 7400209-010 Baseplate
3.1 Pre-Installation Preparation
Before installing the Model 7400209-010 Baseplate, thorough preparation is essential to ensure a secure and aligned installation. First, verify that the installation surface is clean, level, and structurally sound—debris, unevenness, or damage to the surface can cause the baseplate to sit incorrectly, leading to chassis misalignment. For floor-mounted installations, use a level to confirm the surface is within ±0.1 inches (0.25 cm) of horizontal; if not, use shims to level the area before proceeding. Next, confirm that the installation surface can support the combined weight of the baseplate, Tricon chassis, and all installed modules—refer to the Tricon system documentation for weight specifications, and ensure the surface meets local building codes for load capacity. Gather the necessary tools and hardware, including a drill (for floor anchor holes, if required), wrench set, level, tape measure, and appropriate mounting hardware (e.g., anchor bolts for concrete floors, rack screws for rack mounting). Finally, inspect the baseplate for any shipping damage (such as bent edges or stripped holes) and verify that all pre-drilled holes are clear of debris.
3.2 Baseplate Mounting Procedure
The mounting procedure for the 7400209-010 Baseplate varies slightly depending on the installation surface, but follows a consistent core workflow:
Mark Mounting Positions: Place the baseplate on the installation surface and use a tape measure to align it according to the system layout (e.g., ensuring sufficient clearance for chassis access and cabling). Mark the positions of the pre-drilled holes on the surface using a pencil or marker.
Prepare Mounting Holes (if needed): For concrete floors, drill holes at the marked positions using a drill bit sized for the anchor bolts (typically 3/8-inch or 1/2-inch). Clean the holes of debris and insert anchor bolts, tightening them until they are flush with the surface. For rack mounting, no drilling is required—align the baseplate’s rack-compatible holes with the rack rails.
Secure the Baseplate: Place the baseplate back on the surface, aligning its holes with the anchor bolts or rack rails. Secure the baseplate using the appropriate hardware: for floors, use nuts and washers to fasten the baseplate to the anchor bolts, tightening to the recommended torque (typically 15–20 inch-pounds) to ensure a secure fit; for racks, use rack screws to fasten the baseplate to the rack rails.
Verify Level and Alignment: Use a level to confirm the baseplate is perfectly horizontal (both lengthwise and widthwise). If adjustments are needed, use shims under the baseplate (for floor mounting) or reposition the baseplate on the rack rails (for rack mounting) until it is level.
3.3 Chassis Mounting to the Baseplate
Once the 7400209-010 Baseplate is securely installed, mount the Tricon chassis to the baseplate using these steps:
Position the Chassis: Lift the Tricon chassis (using proper lifting techniques, as fully loaded chassis are heavy) and place it on top of the baseplate, aligning the chassis’s mounting holes with the corresponding holes on the baseplate. If the baseplate includes alignment pins, ensure the chassis’s holes slide over these pins to guarantee correct positioning.
Secure the Chassis: Insert mounting bolts through the chassis’s mounting holes and into the baseplate’s pre-drilled holes. Tighten the bolts to the manufacturer’s recommended torque (typically 10 inch-pounds) using a torque wrench—avoid over-tightening, as this can damage the chassis or baseplate.
Verify Stability and Alignment: Gently shake the chassis to confirm it is securely fastened to the baseplate with no movement. Check that the chassis is aligned with adjacent components (e.g., other chassis or termination panels) to ensure easy access to modules and cabling. If multiple chassis are being mounted, repeat these steps for each, maintaining the recommended spacing (1.75 inches (4.45 cm) vertical clearance) between chassis for airflow and maintenance.
4. Compatibility with Tricon Systems
The Model 7400209-010 Baseplate is fully compatible with all Tricon v9–v10 chassis models, including:
Model 8110 Main Chassis: The baseplate supports the Main Chassis (which houses three Main Processors, Power Modules, and up to six logical I/O slots) by providing a stable foundation that aligns with the chassis’s mounting points and distributes its weight evenly.
Model 8111 Expansion Chassis: For Expansion Chassis (which add up to eight logical I/O slots), the baseplate ensures secure mounting, even when the chassis is loaded with heavy I/O modules (such as analog output or supervised digital output modules).
Model 8121 Enhanced Low Density Expansion Chassis: The baseplate’s precision alignment features are particularly useful for this chassis, which supports HART interface modules—accurate mounting prevents misalignment that could disrupt HART communication.
Model 8112 RXM Chassis: For remote RXM Chassis (used to extend the Tricon system to distant locations), the baseplate’s vibration isolation features protect the chassis and RXM modules from vibrations during transportation or on-site operation.
Additionally, the baseplate is compatible with Tricon termination panels, communication modules, and auxiliary components (such as cooling fans), as its design does not interfere with cable routing or access to chassis ports. It can be used in both single-chassis and multi-chassis Tricon systems, scaling to support the maximum 15-chassis Tricon system configuration.
5. Maintenance and Inspection of Model 7400209-010 Baseplate
5.1 Routine Inspection
Regular inspection of the 7400209-010 Baseplate is critical to ensuring the long-term stability of the Tricon system. Conduct monthly visual inspections to check for the following:
Structural Integrity: Look for signs of bending, warping, or corrosion on the baseplate—these issues can compromise its ability to support the chassis. Pay special attention to welds (if present) and mounting holes, as these areas are prone to stress.
Mounting Hardware: Verify that all bolts (baseplate-to-surface and chassis-to-baseplate) are tight and free from corrosion. Loose bolts can cause the chassis to shift, leading to backplane connector damage or module communication errors.
Vibration Isolation Components: If the baseplate uses rubber grommets or isolation pads, inspect them for wear, cracking, or degradation. Damaged isolation components reduce vibration dampening effectiveness and should be replaced promptly.
Alignment: Check that the chassis remains aligned with the baseplate and adjacent components. Misalignment may indicate baseplate movement or structural issues with the installation surface.
5.2 Preventive Maintenance
Perform quarterly preventive maintenance on the 7400209-010 Baseplate to extend its service life and maintain system stability:
Tighten Hardware: Use a torque wrench to re-tighten all mounting bolts to the recommended torque specifications. Industrial vibrations can cause bolts to loosen over time, so this step is critical for preventing chassis movement.
Clean and Protect: Wipe the baseplate with a dry, lint-free cloth to remove dust and debris. For baseplates in corrosive environments, apply a light coat of corrosion-resistant lubricant (approved by Invensys Triconex) to exposed metal surfaces to prevent rust.
Replace Wear Components: If vibration isolation grommets or pads show signs of wear, replace them with genuine Invensys Triconex replacement parts to ensure compatibility and performance. Avoid using third-party components, as they may not meet the required vibration dampening specifications.
Verify Load Capacity: If additional modules or components are added to the Tricon chassis, recheck the baseplate’s load capacity to ensure it can support the increased weight. Consult the Tricon system documentation for updated weight specifications.
5.3 Troubleshooting Common Issues
If issues related to the 7400209-010 Baseplate arise, follow these troubleshooting steps to resolve them:
Chassis Movement or Instability: If the chassis shifts or wobbles, check for loose mounting bolts (baseplate-to-surface and chassis-to-baseplate) and tighten them. If instability persists, inspect the installation surface for damage or unevenness—use shims to level the surface if needed.
Excessive Vibration Transmission: If modules exhibit vibration-related issues (e.g., analog input signal noise), inspect the baseplate’s isolation components. Replace worn grommets or pads, and consider adding additional isolation accessories if the environment is particularly high-vibration.
Corrosion Damage: If the baseplate shows signs of corrosion, clean the affected areas with a mild abrasive pad (for light rust) and apply a corrosion-resistant coating. For severe corrosion, contact Invensys Triconex technical support to evaluate whether the baseplate needs replacement—corroded structural components can compromise the safety of the Tricon system.
6. Safety Considerations for Model 7400209-010 Baseplate
6.1 Installation Safety
When installing the 7400209-010 Baseplate, prioritize safety to prevent injury or equipment damage:
Lifting Safety: Tricon chassis and baseplates are heavy—always use proper lifting techniques (bend at the knees, not the waist) and enlist assistance when moving or positioning the baseplate or chassis. Use a forklift or lifting strap for fully loaded chassis to avoid strain.
Electrical Safety: If installing the baseplate near energized equipment, ensure the area is de-energized and locked out/tagged out (LOTO) to prevent electrical shock. Avoid drilling into floors near electrical cables—use a cable detector to locate hidden wiring before drilling.
Personal Protective Equipment (PPE): Wear appropriate PPE during installation, including safety glasses (to protect against flying debris), work gloves (to prevent cuts from steel edges), and steel-toed boots (to protect against falling components).
6.2 Hazardous Location Safety
For installations in hazardous locations (e.g., Class I, Division 2 or Zone 2), the 7400209-010 Baseplate must be used in compliance with relevant safety standards (ATEX, CSA, FM):
Certified Components: Ensure the baseplate is paired with Tricon chassis and modules that are certified for hazardous locations. The baseplate’s steel construction and corrosion-resistant coating may require additional treatment (e.g., explosion-proof painting) to meet hazardous location requirements—consult Invensys Triconex for guidance.
Mounting in Explosion-Proof Enclosures: If the Tricon system is housed in an explosion-proof enclosure, ensure the baseplate fits within the enclosure’s dimensions and does not interfere with the enclosure’s sealing or explosion-proof properties.
Maintenance Restrictions: In hazardous locations, do not remove or adjust the baseplate while the area contains ignitable gas concentrations. Always verify the area is safe using a gas detector before performing maintenance.
6.3 Load Safety
To prevent structural failure or tipping, never exceed the Model 7400209-010 Baseplate’s maximum load capacity (typically specified in the product documentation as 200–300 lbs (90.7–136.1 kg) for a single chassis). Follow these guidelines to ensure safe loading:
Distribute Weight Evenly: Avoid concentrating heavy components (e.g., Power Modules) on one side of the chassis—ensure modules are installed symmetrically to balance the load on the baseplate.
Avoid Overloading: When adding new modules to the chassis, calculate the total weight and confirm it does not exceed the baseplate’s capacity. If the load approaches the limit, consider using an additional baseplate or upgrading to a higher-capacity mounting solution.
Inspect After Load Changes: After adding or removing modules, recheck the baseplate’s stability and mounting hardware to ensure the changed load has not caused bolts to loosen or the baseplate to shift.
