Information About Invensys Triconex Model 7400028-100 Rack

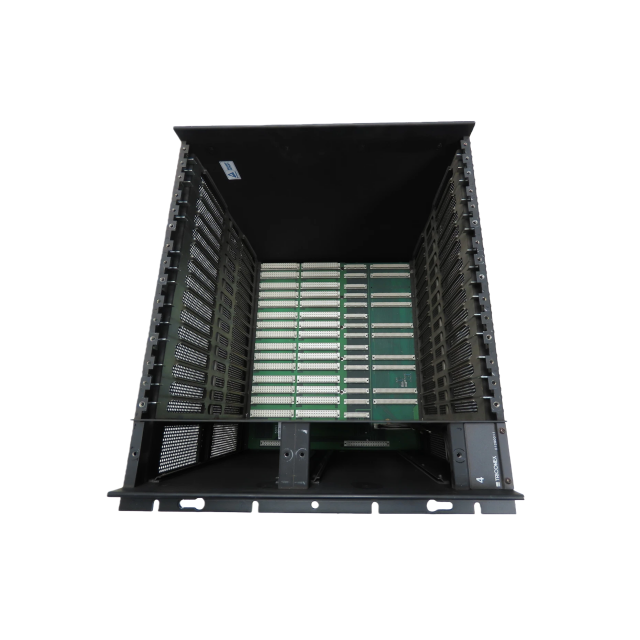

1. Basic Overview of Model 7400028-100 Rack
The Invensys Triconex Model 7400028-100 is a dedicated rack system designed to house and integrate Tricon v9–v10 controller components, serving as the physical infrastructure backbone for Tricon safety instrumented systems (SIS) and process control systems. It is engineered to meet the rigorous demands of industrial environments, providing a secure, organized, and thermally optimized enclosure for critical modules such as Main Processors, Power Modules, I/O modules, and communication modules. The rack is specifically tailored to accommodate Tricon chassis (including Main Chassis, Expansion Chassis, and RXM Chassis) along with associated termination panels, cabling, and auxiliary components, ensuring seamless system assembly and reliable operation in safety-critical applications like nuclear power plants, petrochemical refineries, oil & gas pipelines, and manufacturing facilities.
2. Key Design Features of Model 7400028-100 Rack
2.1 Physical Structure and Dimensions
The Model 7400028-100 Rack follows industry-standard 19-inch EIA (Electronics Industries Association) rack specifications, making it compatible with most industrial enclosure systems and simplifying integration into existing plant control rooms or equipment rooms. Its robust steel construction provides high mechanical strength and durability, capable of withstanding the vibrations, shocks, and environmental stresses common in industrial settings. The rack’s internal framework includes precisely positioned mounting rails and brackets that align with Tricon chassis mounting points, ensuring accurate and secure installation of chassis without the need for custom modifications. Additionally, the rack features a modular design that allows for flexible configuration—users can adjust the spacing between mounting rails to accommodate different chassis heights and accessory components, such as cable management arms or cooling fans.
2.2 Thermal Management
Thermal management is a critical aspect of the Model 7400028-100 Rack’s design, as Tricon modules generate heat during operation and require consistent ambient temperatures to maintain performance and longevity. The rack incorporates vented side panels and a top/bottom airflow design that facilitates natural convection cooling, guiding hot air upward and out of the rack while drawing in cooler ambient air from the bottom. For high-density configurations or environments with elevated ambient temperatures, the rack is compatible with optional forced-air cooling solutions, such as rack-mounted fans or fan trays, which can be installed at the top or bottom of the rack to enhance airflow. The internal layout of the rack also ensures adequate clearance between installed chassis and modules—typically 1.75 inches (4.45 centimeters) of vertical space between chassis—to prevent heat buildup and ensure each component receives sufficient cooling.
2.3 Cable Management
To maintain system organization and simplify maintenance, the Model 7400028-100 Rack includes integrated cable management features. Cable management arms or channels are mounted along the sides or rear of the rack, providing dedicated pathways for power cables, signal cables (such as I/O bus cables, Ethernet cables, and serial cables), and field wiring. These features prevent cable tangling, reduce stress on cable connectors, and make it easier for technicians to trace and access specific cables during troubleshooting or module replacement. The rack also includes cable tie points and cable guides that help secure cables in place, minimizing the risk of accidental disconnection or damage to cables during system operation or maintenance. Additionally, the rear of the rack is designed with sufficient space to accommodate termination panels and cable bulkheads, allowing for neat routing of field wiring from the rack to external field devices.
2.4 Safety and Environmental Protection
The Model 7400028-100 Rack is built to meet strict industrial safety standards, ensuring protection for both personnel and equipment. Its steel enclosure provides a protective barrier against physical damage to internal components, while grounding points on the rack frame allow for secure connection to the plant’s safety ground system (protective earth), preventing electrical shock hazards and mitigating electromagnetic interference (EMI). The rack is also designed to comply with environmental protection standards, such as NEMA (National Electrical Manufacturers Association) Type 12 or IP54 ratings (depending on configuration), which protect internal components from dust, dirt, and non-corrosive liquids—critical for operation in harsh industrial environments like refineries or chemical plants. For hazardous location applications (e.g., Class I, Division 2 or Zone 2), the rack can be paired with additional explosion-proof enclosures or accessories to meet ATEX, CSA, or FM certification requirements, ensuring safe operation in areas with potential flammable atmospheres.
3. Installation Guidelines for Model 7400028-100 Rack
3.1 Pre-Installation Preparation
Before installing the Model 7400028-100 Rack, several preparatory steps are essential to ensure a smooth and safe installation process. First, verify that the installation location meets the rack’s environmental requirements: the ambient temperature should range from 32°F to 140°F (0°C to 60°C), relative humidity should be 5% to 95% (non-condensing), and the area should be free from excessive vibrations, dust, or corrosive gases. Next, assess the structural capacity of the installation surface—whether it is a concrete floor, raised floor, or wall-mounted structure—to ensure it can support the rack’s weight (including all installed chassis, modules, and accessories). The rack’s empty weight typically ranges from 50 to 80 pounds (22.7 to 36.3 kg), and the total loaded weight can exceed 200 pounds (90.7 kg) depending on the system configuration, so proper structural support is critical. Additionally, ensure that there is sufficient clearance around the rack: a minimum of 30 inches (76.2 centimeters) of space in front of the rack for module access and maintenance, and 12 inches (30.5 centimeters) of space at the rear for cable routing and airflow.
3.2 Rack Assembly and Mounting
The Model 7400028-100 Rack is shipped in partially assembled components (such as the frame, mounting rails, and side panels) and requires on-site assembly before installation. Begin by assembling the rack frame according to the manufacturer’s instructions, ensuring that all bolts and fasteners are tightened to the recommended torque specifications to maintain structural integrity. Once the frame is assembled, install the mounting rails inside the rack—these rails are adjustable to accommodate different Tricon chassis heights (e.g., Main Chassis height of 22.75 inches (57.8 cm)). Use a level to ensure the rack is perfectly vertical (both horizontally and vertically) to prevent stress on installed chassis and modules. For floor-mounted installations, secure the rack to the floor using anchor bolts (provided as accessories) to prevent tipping or movement due to vibrations or accidental impact. For wall-mounted configurations (if supported), use heavy-duty wall brackets that are compatible with the rack’s mounting points, ensuring the brackets are anchored to wall studs or structural members.
3.3 Integration with Tricon Chassis and Components
After the rack is installed and secured, the next step is to mount Tricon chassis (Main, Expansion, or RXM Chassis) into the rack. Align each chassis with the pre-installed mounting rails, sliding the chassis into the rack until its front panel is flush with the rack’s front face. Use the chassis’s built-in mounting brackets and screws to secure it to the rack rails, tightening the screws to 10 inch-pounds to ensure a secure fit. When installing multiple chassis, maintain the recommended vertical clearance (1.75 inches (4.45 cm)) between chassis to facilitate airflow and access. After mounting the chassis, install termination panels (for field wiring) and auxiliary components (such as cooling fans or UPS units) in the remaining rack space, ensuring they are securely fastened and do not block airflow or access to chassis modules. Finally, route and secure all cables using the rack’s cable management features—separate power cables from signal cables to minimize EMI, and label cables clearly to simplify future maintenance.
4. Compatibility with Tricon Systems
The Model 7400028-100 Rack is fully compatible with Tricon v9–v10 controller systems, supporting all Tricon chassis models (8110 Main Chassis, 8111 Expansion Chassis, 8121 Enhanced Low Density Expansion Chassis, and 8112 RXM Chassis) and associated modules. It can accommodate up to 15 Tricon chassis (the maximum number of chassis allowed in a Tricon system) when configured with appropriate spacing, along with termination panels, communication modules, and auxiliary equipment. The rack’s 19-inch EIA standard design also ensures compatibility with third-party industrial components, such as UPS systems, surge protectors, and cable management accessories, allowing users to build a comprehensive and integrated control system. When configuring the rack, it is important to consider the total weight of all components to avoid exceeding the rack’s weight capacity (typically 500 to 1000 pounds (226.8 to 453.6 kg) depending on the model) and to ensure balanced weight distribution—heavier components (such as Power Modules or UPS units) should be installed at the bottom of the rack to lower the center of gravity and prevent tipping.
5. Maintenance and Inspection of Model 7400028-100 Rack
5.1 Routine Inspection
Regular inspection of the Model 7400028-100 Rack is essential to ensure its structural integrity and the reliable operation of the Tricon system. Conduct monthly visual inspections to check for signs of physical damage (such as bent rails, loose bolts, or corrosion), especially in harsh industrial environments. Inspect the rack’s grounding connections to ensure they are secure and free from corrosion—loose or corroded ground connections can increase EMI and pose electrical shock hazards. Check the cable management system to ensure cables are properly secured, not tangled, and free from damage (such as fraying or insulation wear). Additionally, inspect the rack’s cooling system (including vents, fans, and air filters) monthly—clean dust and debris from vents and air filters to maintain adequate airflow, and verify that cooling fans are operating normally (if installed).
5.2 Preventive Maintenance
Perform quarterly preventive maintenance on the Model 7400028-100 Rack to extend its service life and prevent unexpected failures. Tighten all bolts and fasteners (including rack frame bolts, chassis mounting screws, and cable management hardware) to the recommended torque specifications—vibrations in industrial environments can cause fasteners to loosen over time. Lubricate any moving parts (such as cable management arm hinges) with a dry lubricant to ensure smooth operation. If the rack is equipped with cooling fans, inspect the fan motors and replace worn or noisy fans promptly to prevent overheating of internal components. For racks installed in dusty environments, clean the internal and external surfaces of the rack using a dry, lint-free cloth or a vacuum cleaner with a soft brush attachment—avoid using water or cleaning solvents, which can damage the rack’s finish or internal components.
5.3 Troubleshooting Common Issues
In the event of issues with the Model 7400028-100 Rack, follow a systematic troubleshooting approach to identify and resolve problems. If the rack exhibits excessive vibrations, check for loose chassis or module mounting screws, and ensure the rack is properly anchored to the floor or wall. If overheating is detected (evidenced by high temperatures inside the rack or module fault indicators related to temperature), inspect the cooling system—clean clogged vents or air filters, replace faulty cooling fans, and verify that the rack’s airflow is not blocked by external objects. If cables become disconnected or damaged, trace the affected cables using the rack’s cable labels, repair or replace damaged cables, and re-secure them using the cable management system. For structural issues (such as bent mounting rails or cracked frame components), contact Invensys Triconex technical support immediately—do not attempt to repair structural damage without professional guidance, as this can compromise the rack’s safety and performance.
6. Safety Considerations for Model 7400028-100 Rack
6.1 Electrical Safety
When working with the Model 7400028-100 Rack, always adhere to electrical safety guidelines to prevent shock or injury. Ensure the rack is properly grounded to the plant’s safety ground system before connecting any power cables—use a multimeter to verify ground continuity. Disconnect all power sources (including chassis power, UPS power, and field power) before performing maintenance on the rack or internal components, and lock out/tag out (LOTO) power sources to prevent accidental re-energization. Avoid working on the rack with wet hands or in damp environments, and wear appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses, when handling electrical components.
6.2 Hazardous Location Safety
If the Model 7400028-100 Rack is installed in a hazardous location (e.g., Class I, Division 2 or Zone 2), additional safety measures must be followed to comply with certification requirements. Ensure the rack is paired with explosion-proof enclosures or accessories that meet the relevant standards (ATEX, CSA, FM), and verify that all electrical components inside the rack (including Tricon modules and cables) are certified for use in hazardous locations. Do not remove or replace modules or cables in the rack while the area contains ignitable gas concentrations—always confirm the area is safe (using gas detectors) before performing maintenance. Additionally, ensure that all cable entries into the rack are sealed with explosion-proof cable glands to prevent the entry of flammable gases or dust.
6.3 Load Capacity Safety
Never exceed the Model 7400028-100 Rack’s maximum weight capacity—overloading the rack can cause structural failure, tipping, or damage to internal components. Before installing new components, calculate the total weight of the components and ensure it does not exceed the rack’s rated capacity. Distribute weight evenly across the rack—install heavier components at the bottom and lighter components at the top to maintain a low center of gravity. Avoid placing excessive weight on the front of the rack (e.g., by extending modules or cables beyond the front panel) as this can increase the risk of tipping. Regularly verify the rack’s load distribution during routine inspections, and reposition components if necessary to maintain balance.
