When a Woodward governor fails, the part numbers 1720-015, 31902-02, and A8516-040 come up repeatedly in requisition lists for gas turbine and industrial engine controls. Through more than a decade of handling Woodward spares for power plants and oil and gas operators, I have seen procurement teams burn weeks chasing these exact numbers only to receive mismatched components or no stock confirmation. What matters is not just listing the spares but understanding what each part does, what supply channels actually work, and what a buyer should verify before releasing a purchase order.
What Are Woodward Governor Spares 1720-015, 31902-02, A8516-040?
Woodward’s governor systems depend on a set of electromechanical and servo components that control fuel flow and speed. The three part numbers represent distinct functional blocks:
Part Number
Typical Function
System Compatibility
1720-015
Speed setting potentiometer assembly
505, 505E, NetCon series
31902-02
Actuator driver module, 4–20 mA control
EG, TG, PG governor variants
A8516-040
Position feedback sensor (LVDT type)
505E, 828, CPC-II platforms
In many turbine control retrofit projects we support, a missing A8516-040 sensor will keep an engine offline because the controller cannot confirm actuator stroke. The 31902-02 module often gets overlooked until the governor loses response speed, while the 1720-015 potentiometer tends to wear mechanically and introduce setpoint drift. Without accurate cross-reference data, procurement groups sometimes order the wrong actuator driver revision and only discover the mismatch during commissioning.
Why Sourcing 1720-015, 31902-02, and A8516-040 Is Often Slow
Most published parts catalogs show these numbers as active, but actual factory lead times for Woodward governor spares have stretched to several months in recent years. The 31902-02 amplifier module, for instance, runs on shared production batches, meaning a single run may cover multiple engine programs. If the plant’s downtime window is short, waiting for the next batch is not an option.
A further complication is that several aftermarket suppliers offer “equivalents” that do not fully match Woodward’s calibration protocols. For the A8516-040 position sensor, an alternative LVDT with the same stroke range can output a different null voltage, causing the controller to throw a position mismatch fault. We have replaced at least three such aftermarket sensors on 505‑E systems in the past year where the end user believed they were installing genuine Woodward spares. The cost of the sensor was minor compared to the unplanned shutdown time.
If your maintenance schedule involves multiple Woodward governors across different turbine frames, confirming actual availability before quoting a shutdown window saves both engineering time and daily revenue loss. The same approach applies when a 1720-015 potentiometer is needed for a legacy NetCon unit; old stock sometimes sits unlisted at suppliers who do not push it to general distribution.
How Can You Confirm a Woodward Governor Spare Is Genuine?

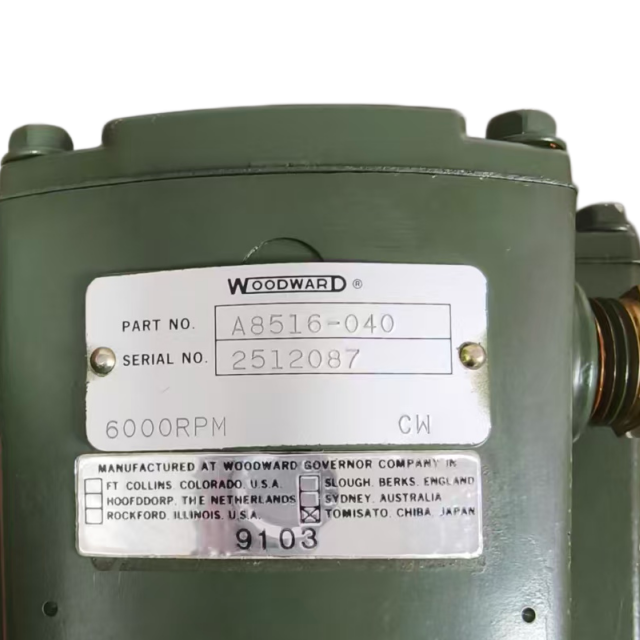

In our global supply chain work, we check three specific markers before accepting any Woodward governor spare into inventory. First, examine the product label for the Woodward part number imprint quality — genuine labels use thermal transfer print that does not smudge under solvent cleaning. Second, weigh the module or assembly; counterfeit actuator drivers often add an aftermarket heat sink that changes the mass by 15 to 30 grams. Third, request a continuity and output verification test report from the supplier, especially for the 31902-02 amplifier, because its output scaling can drift if a substitute operational amplifier was swapped.

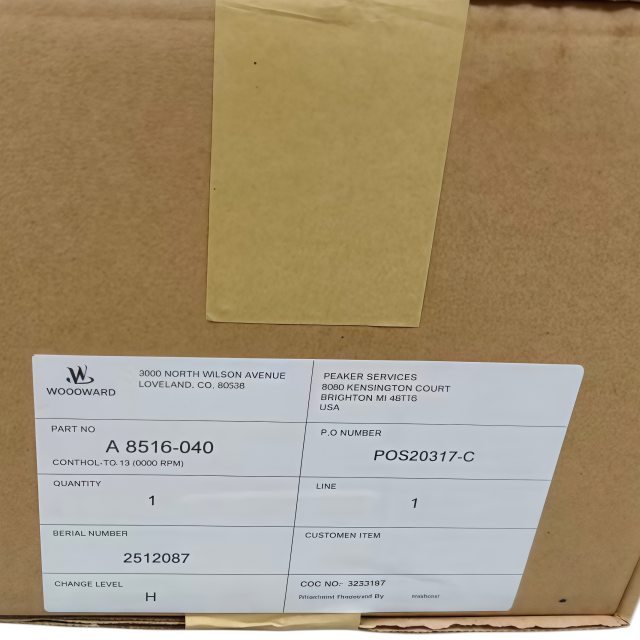

Woodward distributors with authorized status normally provide batch traceability data. When a supplier cannot produce a packaging slip with an original Woodward barcode that matches the internal test database, I recommend holding the part back until confirmation is possible. In many regions, the price difference between a genuine A8516-040 position sensor and an uncertified copy is small enough that the risk is not justified.
What Should Your Supplier Provide for Quick Integration?
Beyond part authenticity, speed of delivery depends on whether the supplier maintains buffer stock for the exact revision your system uses. For the 1720-015 potentiometer, field wiring connections vary between panel-mount and DIN-rail versions; having the correct terminal block and calibration curve data at shipment avoids an extra week of adjustment on site. A supplier who understands the governor generation — 505, NetCon, or CPC-II — will ask for the turbine serial number or controller software version before dispatching the 31902-02 or A8516-040.
From our own shipping data, most Woodward governor spares leave our warehouse the same day an order is confirmed if the part is in our active inventory. When a part is not in stock, clear lead‑time communication with the buyer’s planners becomes the critical factor. Simple things like pre‑declared customs codes and accurate weight declarations prevent clearance delays that can cost a production line a full shift.
If your program involves reactive turbine maintenance and you need a 31902-02 actuator driver matched to a specific governor calibration, it is worth confirming revision compatibility and current stock position before finalizing your BOM. Send the part number and your controller firmware version to chen@htechplc.com; we typically respond with a stock check and lead‑time estimate within a few hours.
What Questions Do Maintenance Teams Ask About These Governor Spares?
How quickly can the 1720-015 speed potentiometer be shipped?
In most cases, the 1720-015 potentiometer is an off‑the‑shelf item at suppliers who support Woodward 505 and 505E service spares. If the required version is in stock, same‑day dispatch is realistic. For high‑demand months, a one‑week lead time is more typical. Always confirm the mounting style and resistance value before ordering.
Are the 31902-02 actuator driver modules interchangeable between different governor series?
The 31902-02 series is designed for EG, TG, and PG series governors but has revision‑specific calibration resistors. A module built for a 24 V governor may not drive a 48 V actuator correctly. It depends on the original governor model and the revision mark stamped on the driver’s aluminum housing. Giving your supplier the complete turbine model code makes a mismatch less likely.
Can a non‑OEM A8516-040 position sensor work reliably?
Some aftermarket LVDT sensors with identical mechanical dimensions have caused null‑voltage errors above 0.5 V in our field returns, which disturbs the control loop. While a few users have run them successfully after manual offset adjustment, the failure rate we have seen makes it a risky substitution. Genuine A8516-040 sensors arrive pre‑calibrated for immediate integration.
What documentation should accompany each part?
At minimum, request a packing list showing the Woodward part number, revision, and serial number and a shipment inspection report confirming output verification. For components like the 31902-02 driver module, a bench‑test summary that demonstrates correct scaling adds another layer of assurance. If your QA team needs a specific test report format, share the requirements with your supplier early, and we can often prepare the paperwork alongside the physical shipment.
My emergency order needs three different Woodward governor part numbers. How do I avoid supply chain fragmentation?
Consolidating all items under one shipment with a single export declaration reduces customs inspection time and avoids the risk of partial arrival. Provide a detailed line‑item request that lists each part number, quantity, and the controller series, so the supplier can verify compatibility across the order. We routinely handle multi‑item Woodward spares shipments and can align inventory pick‑and‑pack with your arrival deadline. Share your part numbers and required on‑site date at chen@htechplc.com; we will confirm availability and propose a consolidated shipment timeline.
Governor spares sourcing is never just about placing an order. When a control component like the 1720-015, 31902-02, or A8516-040 shows wear, the cost of a wrong delivery eclipses the part price. Your plant needs a supplier who can verify authenticity, hold the right revision in stock, and move the shipment fast enough to keep your turbine sequence on schedule. For a fast availability check on any Woodward governor spare, send your part numbers and preferred delivery window to chen@htechplc.com or call +86‑181‑5013‑7565. We respond to urgent industrial parts requests within the same business day.
