Heavy rotating equipment doesn’t give much warning before it fails. One day the bearings sound fine, the next you’re looking at a seized motor and a production line that won’t move. I’ve seen facilities lose entire shifts to failures that a decent vibration monitoring setup would have caught weeks earlier. The Allen Bradley 1440 Dynamix Vibration Module sits at the center of that kind of early warning system, pulling continuous data from critical machinery and flagging problems while they’re still small enough to fix on your schedule. We supply these modules because they work, and because having the right spare on hand matters when uptime is everything.
Why Vibration Monitoring Changes How You Maintain Equipment
Vibration monitoring flips the maintenance model from reactive to predictive. Instead of waiting for something to break or replacing parts on a fixed calendar regardless of actual wear, you’re watching the machinery tell you what it needs. A bearing that’s starting to pit throws off a specific vibration signature. Gear teeth wearing unevenly show up in the frequency data long before anyone hears a noise. The Allen Bradley 1440 Dynamix system captures these signals continuously, running them through diagnostic algorithms that separate normal operating variation from genuine fault indicators.
The economic argument is straightforward. Unplanned downtime costs more than planned maintenance by a wide margin, often by a factor of three to five when you account for lost production, emergency labor rates, and expedited parts shipping. Facilities running predictive maintenance programs built around vibration monitoring typically see measurable reductions in both maintenance spending and unexpected outages. The machinery lasts longer too, because you’re catching problems before they cascade into secondary damage.
Feature
Description
Benefit
Real-time Monitoring
Continuous data acquisition and analysis
Immediate detection of potential issues
Advanced Diagnostics
Identifies specific fault types
Pinpoints root causes for targeted repair
Integrated Architecture
Seamless connection with control systems
Centralized data and simplified management
Scalable Solutions
Adaptable to various machinery and plant sizes
Flexible for evolving industrial needs
Robust Design
Built for harsh industrial environments
Ensures reliability and longevity

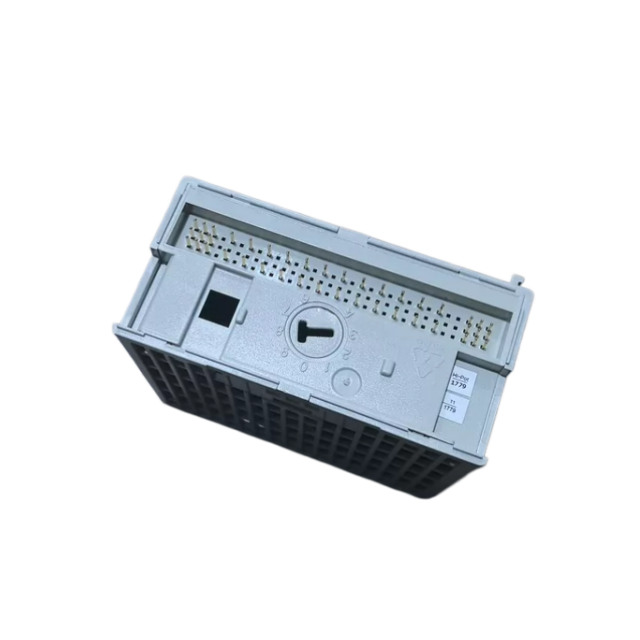

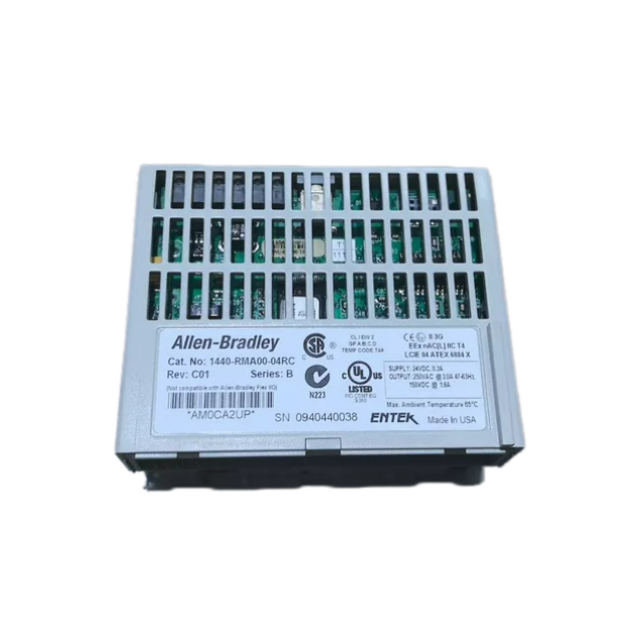

Inside the 1440-RMA00-04RC Module
The 1440-RMA00-04RC handles the core vibration analysis work within the Dynamix 1440 system. It connects to accelerometers and proximity probes mounted on your machinery, digitizes the signals, and processes them through algorithms designed to catch specific fault patterns. The module’s processing power matters here because vibration analysis involves decomposing complex waveforms into frequency components and comparing those components against baseline signatures and known fault patterns.
What sets this module apart from older monitoring approaches is the integration depth. It’s not a standalone box generating reports that someone has to manually review. The 1440-RMA00-04RC feeds directly into your control system architecture, making vibration data available alongside process data in a unified view. When a threshold gets crossed, the alert shows up where your operators are already watching. We stock genuine Rockwell Automation modules because compatibility matters. Third-party substitutes sometimes work, but sometimes they introduce communication glitches or calibration drift that undermines the whole point of having a monitoring system.
Setting Up the 1440-RMA00-04RC Correctly
Configuration determines whether you get useful data or noise. The steps aren’t complicated, but skipping any of them creates problems later.
Mount the module in the control cabinet with adequate ventilation and away from high-frequency electrical interference sources.
Wire the sensor inputs according to the sensor types you’re using. Accelerometers and proximity probes have different signal conditioning requirements.
Connect power and communication cables, verifying termination resistance if you’re on a long network run.
Load the configuration software and establish communication with the module.
Set up measurement parameters for each channel. This includes frequency ranges appropriate to your machinery speeds, alarm thresholds based on baseline readings or industry standards, and any band-pass filtering needed to isolate specific fault frequencies.
Run the initial calibration routine with the machinery in a known good state. This establishes your baseline.
Verify that data is flowing to your control system and that alarms trigger correctly when you simulate a threshold crossing.
The calibration step deserves extra attention. If you baseline the system when the machinery already has a developing fault, your thresholds will be set wrong from the start.
Connecting Dynamix 1440 to Your Existing Control Infrastructure
The Dynamix 1440 system was designed to fit into Rockwell Automation’s broader ecosystem, which means integration with Allen Bradley PLCs is native. EtherNet/IP handles the communication, and the vibration data shows up in your programming environment alongside everything else. If you’re running a ControlLogix or CompactLogix platform, the modules appear as additional I/O in your project tree.
Integration with non-Rockwell systems is possible but requires more planning. The modules support standard protocols, so connecting to third-party DCS platforms or SCADA systems is achievable. The data mapping takes more effort, and you may need gateway devices depending on your architecture. We’ve helped facilities work through these integration challenges, and the common issues usually involve network configuration or data type mismatches rather than fundamental incompatibility.
The benefits of running a Dynamix vibration monitoring system show up across several categories, and most of them are measurable if you track the right metrics.
Unplanned downtime drops because you’re catching faults early. The typical range facilities report is around 20-30% reduction in unscheduled outages, though your results depend on what you were doing before and how consistently you act on the alerts. Equipment life extends because you’re not running machinery with developing faults until they cause secondary damage. A bearing that gets replaced when it first shows wear doesn’t take out the shaft seal and housing on its way out.
Maintenance costs shift from reactive to planned. Emergency repairs cost more in labor, parts, and lost production than scheduled maintenance. When you know what’s failing and when, you can batch repairs during planned outages, order parts at normal prices, and have the right technicians available.
Benefit Category
Description
Quantifiable Impact
Reduced Downtime
Early detection prevents catastrophic failures
Up to 30% reduction in unscheduled outages
Extended Equipment Life
Proactive maintenance minimizes wear and tear
15-20% increase in machinery operational lifespan
Lower Maintenance Costs
Targeted repairs reduce unnecessary interventions
10-25% decrease in overall maintenance expenditures
Improved Safety
Prevents equipment malfunctions that could cause harm
Enhanced workplace safety and compliance with standards
Increased Productivity
Consistent operation without unexpected interruptions
5-10% boost in production output
The Case for Genuine Allen Bradley Components
Rockwell Automation built a reputation in industrial automation by making equipment that holds up in harsh environments and integrates cleanly across product lines. The Allen Bradley name on a vibration module means it was designed to work with the rest of your Rockwell infrastructure without the compatibility questions that come with third-party alternatives.
We focus on genuine components because the alternatives create risk. Counterfeit or gray-market parts sometimes work fine, but sometimes they fail early, drift out of calibration, or cause communication errors that are hard to diagnose. When you’re building a predictive maintenance program around vibration data, the data has to be trustworthy. That starts with authentic hardware.
Spare parts availability matters too. Rockwell maintains support and parts availability for their products across reasonable lifecycle windows. We keep common modules in stock so you’re not waiting weeks for a replacement when something fails.
Get the Right Modules for Your Monitoring System
Genuine Allen Bradley 1440 Dynamix Vibration Modules are available through Joyoung International Trading Co., Limited. We stock authentic components and provide consultation on system configuration and integration. Reach out for reliable solutions: chen@htechplc.com | +86-181-5013-7565.
Frequently Asked Questions About Allen Bradley 1440 Dynamix
What machinery problems can the 1440 Dynamix module actually detect?
The Allen Bradley 1440 Dynamix module detects the common mechanical faults that cause most rotating equipment failures. Bearing defects show up as characteristic frequencies related to ball pass rates and cage rotation. Gear wear produces sidebands around mesh frequencies. Imbalance appears as vibration at running speed, while misalignment typically shows up at twice running speed with specific phase relationships. Looseness and cavitation each have distinct signatures too. The diagnostic algorithms are trained to recognize these patterns and distinguish them from normal operating variation.
How does the 1440-RMA00-04RC connect to plant control systems?
The 1440-RMA00-04RC uses EtherNet/IP for communication, which makes it native to Rockwell Automation PLC and DCS platforms. It appears as standard I/O in your programming environment, and vibration data integrates with process data in a unified view. For non-Rockwell systems, the module supports standard protocols that allow connection through appropriate gateways. The integration approach depends on your specific architecture, but the module was designed with interoperability in mind.
Where should I source replacement parts and technical support for Dynamix modules?
For genuine Allen Bradley 1440 Dynamix spare parts and technical support, work with suppliers who specialize in authentic industrial automation components. Joyoung International Trading Co., Limited maintains stock of common modules and provides assistance with installation, configuration, and troubleshooting. Using genuine parts matters for Vibration Monitoring systems because data accuracy depends on properly calibrated, compatible hardware.
