When a turbine trips unexpectedly at 3 AM, the first place most engineers look is the protection module. That instinct comes from experience — and from knowing that components like the IS220PPRFH1B and IS220PAICH1A sit at the heart of what keeps a GE Mark VIe system running safely. These modules handle the signals that determine whether a turbine stays online or shuts down to protect itself. Getting them right matters more than most spec sheets suggest.
How the GE Mark VIe Turbine Control System Architecture Actually Works
The GE Mark VIe turbine control system evolved from earlier generations to address the reliability demands of modern power generation and process control. It functions as a distributed control system built around redundancy and fault tolerance. Controllers process logic, I/O modules handle field signals, and the Human Machine Interface HMI gives operators visibility into what the system sees and does.
What makes the Mark VIe architecture practical is its modularity. You can scale it up for large combined-cycle plants or configure it for smaller industrial turbines without redesigning the core structure. The system integrates into broader industrial automation frameworks, pulling data from sensors and pushing commands to actuators with response times measured in milliseconds. That speed matters when you need to catch an overspeed condition before it becomes a mechanical failure.

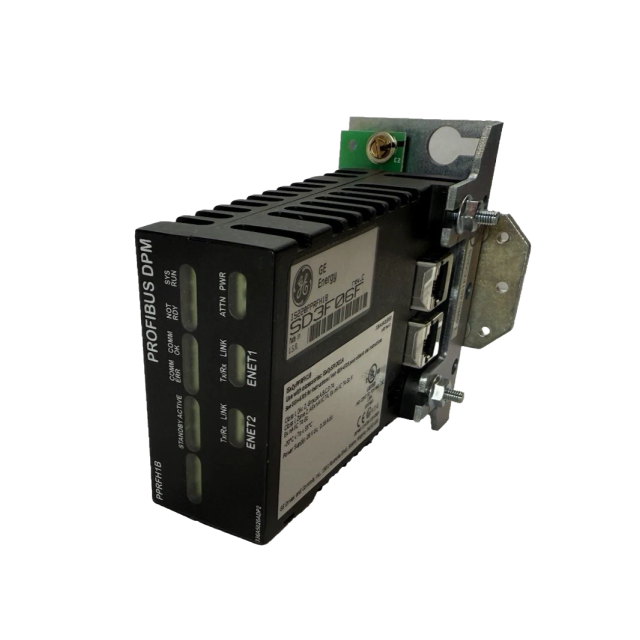

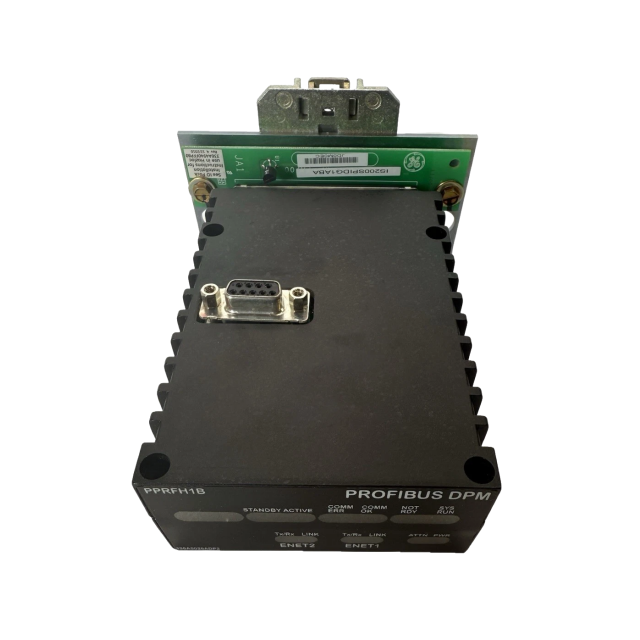

What the IS220PPRFH1B Module Does for Turbine Protection
The IS220PPRFH1B module handles the signals that trigger protective shutdowns. It processes inputs from speed sensors, vibration probes, and temperature elements, comparing those readings against predefined limits. When something exceeds a threshold, the module initiates a trip sequence.
Redundancy is built into the design because protection functions cannot afford single points of failure. The IS220PPRFH1B incorporates multiple signal paths and voting logic to distinguish between genuine fault conditions and sensor anomalies. This approach prevents nuisance trips while ensuring real hazards trigger immediate response.
Vibration monitoring through this module catches bearing wear and rotor imbalances before they cause catastrophic damage. Temperature inputs track hot gas path conditions that could indicate combustion problems or cooling system failures. The module processes these signals continuously, not just during startup or load changes.
Technical Specifications That Matter for IS220PPRFH1B Integration
The IS220PPRFH1B accepts both analog and digital inputs, with channel counts and signal ranges specified in the technical data sheets. Calibration procedures ensure the module interprets sensor outputs correctly — a 4-20mA signal from a pressure transmitter needs to map accurately to the engineering units the control logic expects.
Input impedance, sampling rates, and response times all affect how the module performs in real applications. Engineers configuring these modules need to verify that sensor wiring, grounding, and shielding meet the requirements. A noisy signal path can cause false readings that either trigger unnecessary trips or mask genuine problems.
Troubleshooting IS220PPRFH1B Failures in the Field
When an IS220PPRFH1B module develops problems, the symptoms usually show up as diagnostic alarms or unexpected trip events. Communication errors between the module and the controller often point to backplane connection issues or firmware incompatibilities. Sensor input discrepancies might indicate wiring faults, failed transmitters, or calibration drift.
The diagnostic codes stored in the module provide starting points for investigation. Checking sensor continuity, verifying power supply voltages, and reviewing recent configuration changes typically narrow down the cause. Some failures require module replacement, which is where having genuine spare parts available becomes critical.

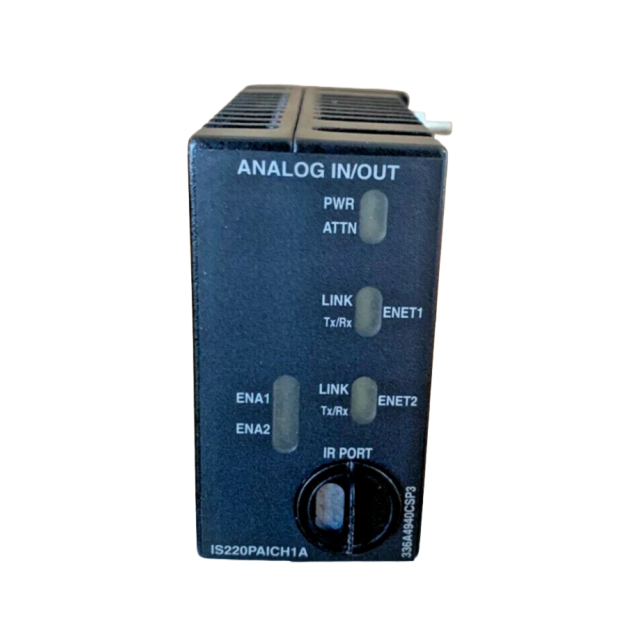

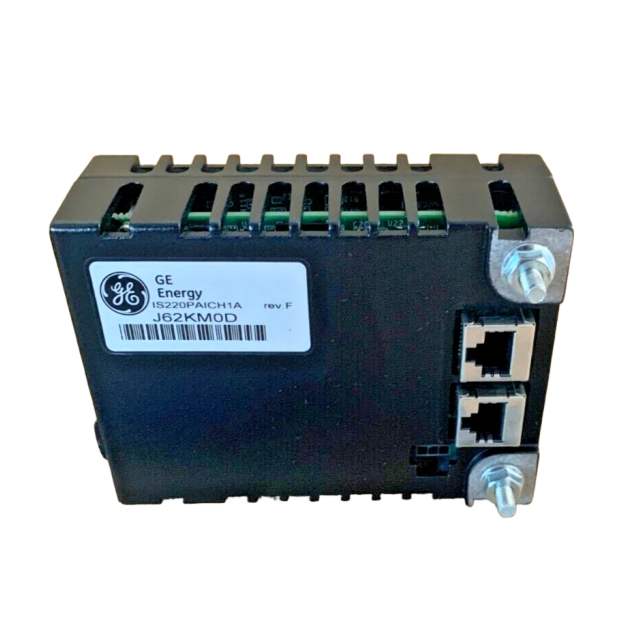

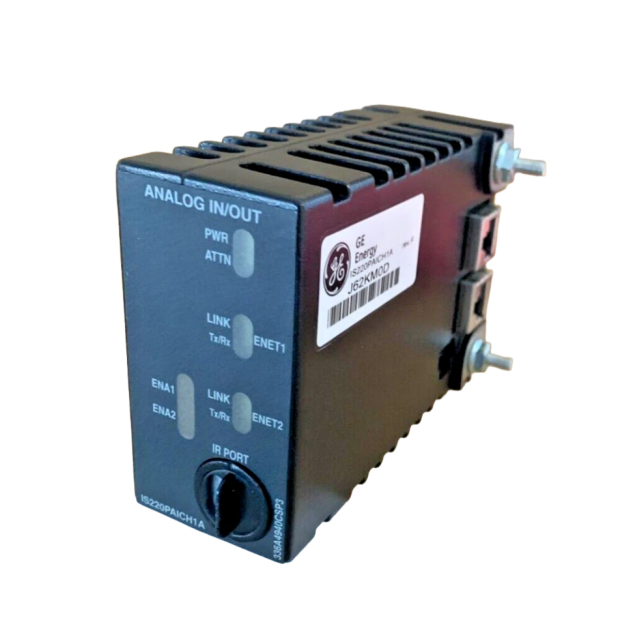

How the IS220PAICH1A Handles Analog Input and Data Acquisition
The IS220PAICH1A module converts analog signals from field sensors into digital values the control system can process. This conversion happens continuously across multiple channels, feeding data to control loops that regulate fuel flow, steam pressure, and other process variables.
Accuracy matters here because small errors compound through the control calculations. A temperature reading that drifts by a few degrees might seem minor, but it can shift combustion tuning enough to affect emissions or efficiency. The IS220PAICH1A design includes input conditioning and filtering to reject noise while preserving the signal information that control loops need.
Process monitoring through this module covers the variables operators watch during normal operation. Trends in bearing temperatures, lube oil pressures, and exhaust gas temperatures all flow through analog input modules like the IS220PAICH1A. That data feeds both real-time displays and historical archives used for performance analysis.
Feature
IS220PPRFH1B
IS220PAICH1A
Primary Function
Turbine Protection
Analog Input & Data Acquisition
Input Type
Safety-related signals (DI/AI)
General Analog Inputs
Output Type
Protective trip signals
Digital Data for Control
Role in System
Safety Interlocks
Process Monitoring
Criticality
High (Safety)
High (Control Accuracy)
Why Authentic IS220PAICH1A Modules Matter for System Integrity
Counterfeit components have become a real problem in the industrial automation spare parts market. A fake IS220PAICH1A might look identical to a genuine module but use inferior components that drift out of calibration or fail prematurely. Worse, it might introduce subtle measurement errors that affect control performance without triggering obvious alarms.
Supply chain verification protects against these risks. Reputable suppliers maintain traceability records and quality assurance processes that confirm authenticity. The cost difference between genuine and counterfeit parts rarely justifies the operational risks and potential safety consequences of installing questionable components.
Extending the Service Life of Mark VIe Control Modules
GE Mark VIe modules like the IS220PPRFH1B and IS220PAICH1A can operate reliably for many years with proper care. Environmental factors — temperature, humidity, dust, and vibration — affect component aging. Keeping control cabinets within specified conditions reduces stress on electronic components.
Predictive maintenance programs that track module diagnostics over time can identify degradation trends before failures occur. A module showing increasing error rates or marginal signal quality might be approaching end of life even though it still passes basic functional tests.
Firmware updates and system upgrades sometimes improve performance or address known issues. Balancing the benefits of updates against the risks of introducing changes to a working system requires judgment based on the specific installation and operational priorities. Reliability engineering principles favor stability, but ignoring available improvements indefinitely creates its own risks.
Sourcing GE Mark VIe Modules Without Compromising Quality
Finding genuine spare parts for GE Mark VIe systems gets harder as installations age. Original equipment channels may have long lead times or discontinue support for older module versions. Third-party suppliers fill this gap, but quality varies widely.
The procurement challenge extends beyond the IS220PPRFH1B and IS220PAICH1A to the full range of PLC module cards, DCS components, ESD system elements, and vibration monitoring system cards that industrial facilities depend on. Steam turbine control system modules and gas generator spare parts face similar sourcing pressures.
Suppliers with established networks and technical expertise can locate hard-to-find components while verifying authenticity. The relationship matters because a supplier who understands your system can help identify equivalent parts or suggest alternatives when exact replacements are unavailable.
Getting Technical Support for Complex Mark VIe Challenges
Some problems require more than replacement parts. System integration issues, configuration errors, and performance optimization often benefit from specialized expertise. Engineers who work with Mark VIe systems regularly accumulate knowledge that occasional users cannot match.
Maintenance service providers and technical consultants offer this depth of experience. They can troubleshoot intermittent faults, optimize control tuning, and help plan upgrades that minimize operational disruption. Building relationships with these specialists before emergencies arise makes response faster when problems occur.
