1746-IV32 Advantages
The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module stands out from comparable digital input modules in several key areas.
32‑channel high‑density sourcing DC input design. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module provides thirty‑two sourcing‑type DC input channels within a single chassis slot, greatly reducing rack slot consumption for projects requiring large‑volume DC discrete signal collection.
Group‑based 500V DC electrical isolation protection. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module adopts 500V DC opto‑coupler isolation between field wiring and PLC internal logic, restraining surge interference and protecting SLC‑500 backplane components from field‑side faults.
Hardware‑based noise‑filtering function. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module integrates on‑board filtering components to suppress high‑frequency electromagnetic noise generated by on‑site motors and variable‑frequency drives and avoid false‑trigger events.
Bank‑wise channel status LED indicators. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module is equipped with grouped LED status lights for quick on‑site fault diagnosis of field switch and sensor signals connected to the Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module.
Native Allen‑Bradley 1746 SLC‑500 integration. As a factory‑original Allen‑Bradley 1746 series component, the Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module plugs directly into standard SLC‑500 chassis slots without additional signal‑conversion adapters.
40‑pin standardized connector interface. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module uses a keyed 40‑pin female connector, supporting pre‑fabricated interface cables to simplify cabinet wiring construction and later maintenance work.
1746-IV32 Applications
Factory Assembly & Process Automation Production Lines. Primary high‑density sourcing DC discrete‑signal acquisition interface within Allen‑Bradley 1746 SLC‑500 PLC systems, collecting status feedback from large‑quantity sourcing‑type proximity sensors and auxiliary contact devices.
Material Handling & Conveyor Systems. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module monitors massive position‑sensor feedback and safety interlock switch signals for large‑scale conveyor‑zone control cabinets.
Water Treatment & Wastewater Control Plants. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module gathers multi‑point pump‑running feedback signals and valve‑position switch signals for central water‑process automation control cabinets.
Petrochemical & Chemical Processing Facilities. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module collects large‑volume safety‑interlock and field‑valve position digital signals for SLC‑500‑based chemical‑workshop automation cabinets.
General Industrial PLC‑based Control Systems. The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module serves as original spare high‑density sourcing‑type DC digital‑input hardware for SLC‑500‑based industrial automation cabinets.

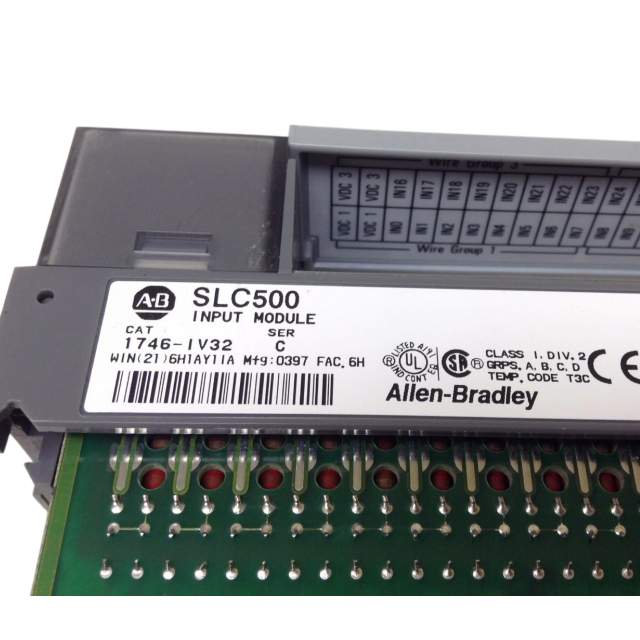

1746-IV32 Certifications & Compliance
The Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module holds the following international safety and compliance approvals:
• UL listed — North‑American industrial control equipment safety approval.
• CE certification — European industrial control equipment safety and EMC compliance.
• C‑Tick marked — EMC compliance for Australian and New Zealand markets.
• Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All modules supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1746‑IV32 15‑30 VDC Source Input Module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
