If you maintain VM600 protection cabinets, you will eventually face two IPC704 suffix codes: 244-704-000-042 and 244-704-000-511. Both are IPC704 signal conditioning cards. The suffix is not cosmetic. It identifies the factory revision, hardware configuration, and the application environment the card was released for.
For replacement, ordering the correct suffix matters. A wrong suffix can cause signal drift, communication mismatch, or unnecessary revalidation after installation.
What the IPC704 Part Number Tells You
The IPC704 family is a multi-channel signal conditioning card used inside VM600 machinery protection systems. It conditions proximity probe and eddy current sensor signals before the IOC4T and CPUM modules process them.
The part code 244-704-000-XXX follows a fixed logic:
When you order only “IPC704” without suffix, you risk receiving a card that does not match your existing rack configuration or probe wiring.
244-704-000-042: Field-Proven Generation
The 244-704-000-042 suffix is widely installed in general rotating equipment monitoring. Common sites include plastic extruders, water treatment pumps, paper machine drives, and small turbine auxiliary systems.
Field experience with 042 shows:
Stable signal conditioning with TQ402 proximity probes and EA402 extensions
Predictable cable routing in standard VM600 racks
Matches earlier CPUM firmware revisions
Good availability on the second-use and spare parts market
If your system was designed around 042 and is running without noise or drift issues, staying with 042 is usually the lowest-risk choice. Replacement with the same suffix avoids unnecessary reconfiguration and revalidation.
244-704-000-511: Current Revision and Upgrade Target
The 244-704-000-511 suffix appears in newer VM600 bills of material. It is frequently specified for wind turbine gearbox signal conditioning and other high-noise rotating equipment applications.
Compared with 042, the 511 revision generally offers:
Updated hardware filtering for better noise immunity
Improved compatibility with newer CPUM and IOC4T firmware
More stable signal output under variable ground conditions
Cleaner integration in cabinets with mixed card generations
The 511 is not automatically a drop-in replacement for 042. Even if the connector and slot are the same, parameter loading, ground routing, and calibration must be verified.
Key Differences That Matter in the Field
Item | 244-704-000-042 | 244-704-000-511 |
|---|
Card function | IPC704 signal conditioning | IPC704 signal conditioning |
Factory revision | Earlier generation | Later generation |
Typical use | General rotating equipment | Wind turbine gearbox, high-noise areas |
Noise immunity | Standard | Improved filtering |
CPUM firmware match | Older or conservative firmware | Newer firmware releases |
Wiring and connector | Same physical interface | Same physical interface, but shield/ground routing must be checked |
Spare strategy | Keep as tested spare | Preferred for new BOMs and upgrades |
The functional role is identical. The difference is revision maturity and application hardening.
Upgrade Path: 042 to 511 Step by Step
Use this path when your site has decided to move from 244-704-000-042 to 244-704-000-511.
Confirm the reason for upgrade. Noise issues, newer CPUM firmware, or original 042 failure are the main drivers.
Check the rack slot and backplane. IPC704 cards are installed in VM600 racks such as the 204-040-100-011 system rack. Confirm slot power and EMC contact before insertion.
Record the existing configuration. Save channel assignment, probe type, gap voltage, and trip thresholds from the old 042 card.
Verify wiring. The TQ402 probe and EA402 extension cable routing should match the original layout. Do not assume the new revision has the same shield ground behavior.
Power down and replace. Remove the old card, inspect the backplane connector for wear, then seat the 511 card completely.
Reload parameters. Restore the saved channel configuration. If the system uses combined CA202 accelerometer or CP515 pressure inputs with other cards, reconfirm the full signal chain.
Calibrate the loop. Use the 204-215-000-101 calibrator to verify probe gap voltage and signal conditioner output after the swap.
Confirm communication. Check for the loss of rack communication between CPUM and IOC4T after power-up. Run the card self-test if available.
Test protection logic. If the IPC704 feeds MPC4 protection channels, perform a trip logic test before returning the machine to service.
Keep the 042 as a tested spare. A known-good 042 is often the fastest recovery path during an unexpected failure.
When to Stay with 244-704-000-042
Do not upgrade only because a newer suffix exists. Stay with 042 when:
The existing system is stable and has no noise or communication issues
The CPUM and IOC4T firmware are original and not being updated
You have spare 042 cards in stock
Revalidation downtime is not justified
Unnecessary replacement introduces risk. A proven spare card is often more valuable than a newer revision with unknown local behavior.
When to Upgrade to 244-704-000-511
Upgrade to 511 when one or more of these conditions applies:
Your site is commissioning wind turbine gearbox monitoring or other high-noise applications
The 042 card has failed and the latest factory BOM specifies 511
New CPUM or IOC4T firmware requires the later IPC704 revision
Repeated noise-related signal errors occur with 042
The plant standard has moved to newer VM600 card revisions
In those cases, 511 is the correct engineering choice.
Sourcing and Verification Checklist
Before buying any IPC704 card, verify:
Exact suffix: 244-704-000-042 or 244-704-000-511
Physical label matches the part number on the order
Hardware revision is readable
Compatibility with your CPUM model, such as 200-595-067-114 or 200-595-063-314
Sales supplier can provide test history or intended application notes
No board damage, connector wear, or bent pins
Do not accept a card described only as “IPC704 compatible.” The suffix code determines whether the card belongs in your system.
FAQ
Is 244-704-000-511 a direct replacement for 244-704-000-042?
In many VM600 racks, yes, the physical interface is the same. But replacement is not purely plug-and-play. Parameter loading, ground routing, and calibration must be verified after installation.
Can I install 042 and 511 cards in the same rack?
Usually yes, if the CPUM and IOC4T firmware support mixed card revisions. Check the version conflict list for your rack. Do not assume mixed operation is safe.
What is the main functional difference between 042 and 511?
Both perform IPC704 signal conditioning. The 511 is a later factory revision with improved filtering and better high-noise behavior.
Does replacing 042 with 511 require recalibration?
Yes. After swapping the card, revalidate the probe gap voltage and signal conditioner output with the 204-215-000-101 calibrator.
Which suffix is preferred for wind turbine gearbox monitoring?
244-704-000-511 is the more appropriate choice for wind turbine gearbox and other high-noise applications.
For confirmed stock of IPC704 244-704-000-511 or 244-704-000-042, contact Joyoung International Trading Co., Limited.
We supply VM600 cards, TQ402 proximity probes, EA402 extension cables, CA202 accelerometers, and other machinery protection spares. If you are not sure which suffix matches your CPUM and rack configuration, send your existing part number and rack layout. We will confirm compatibility before shipment.
Email: chen@htechplc.com
Phone: +86-181-5013-7565
If you’re interested, check out these related articles:
Triconex 3700A Intelligent SAM Module for Industrial Safety
DCS Migration or Legacy Parts Strategic Industrial Choices
Industrial I O Module Types Digital Analog Communication Explained
Foxboro FBM202 Sourcing Reliable AO Field Bus Module Replacements
GE IS200AEPAH1A Mark VI Analog I O Module Sourcing Guide
Recommended Models
F3330
F6217
F7131
F7133
F3221
F3222
F3225
F3311
F3313
F3405
F7101
F7115
F7113
F7534
F7536
F7537
F3236

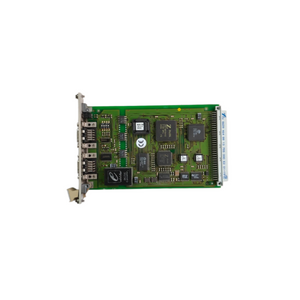

F8621A

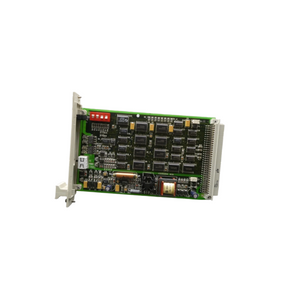

F7553

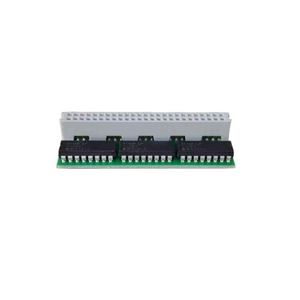

F7546

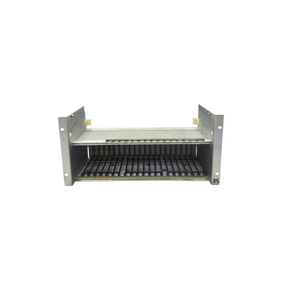

B9302

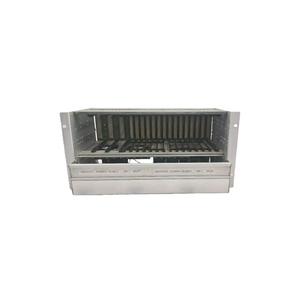

B5233-2
F8612B
F8616
F8623B

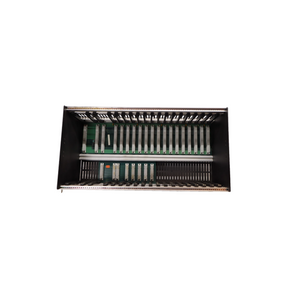

HCR166-0
