Industrial automation systems live or die by their control hardware. The Allen Bradley 1769-L18ER CompactLogix controller paired with the 1769-IA16 digital input module represents one of those combinations that just works—integrated digital I/O, native EtherNet/IP communication, and enough processing headroom for most mid-range applications. Getting the most out of this pairing means understanding how each component functions and how they interact within the broader CompactLogix architecture.

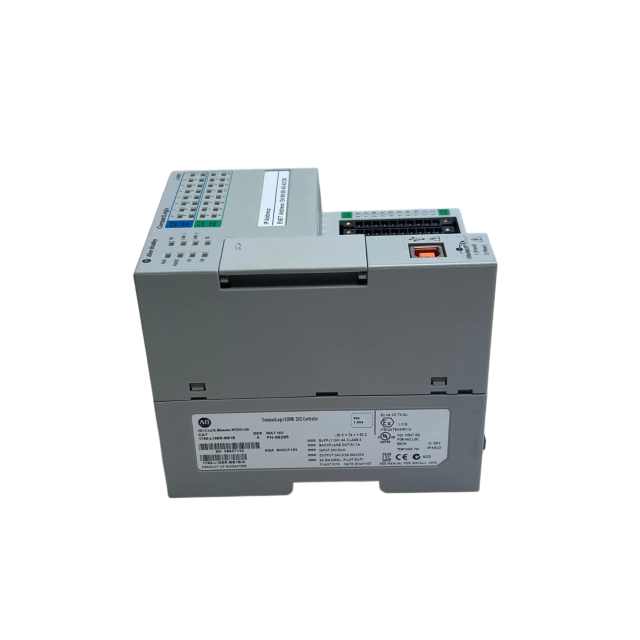

What Makes the Allen Bradley 1769-L18ER CompactLogix Controller Stand Out
The 1769-L18ER CompactLogix controller handles the central processing duties in many industrial automation setups. Part of the CompactLogix 1769 series, this controller packs integrated digital I/O directly into the unit, which eliminates the need for separate base I/O modules in smaller applications. EtherNet/IP communication comes built in, so connecting to HMIs, drives, and other network devices happens without additional communication cards.
Rockwell Automation designed the CompactLogix architecture around modularity. The 1769-L18ER sits at the center, and you expand outward by adding I/O modules as your application grows. This approach keeps initial costs reasonable while leaving room for future expansion. The 0.5 MB of memory handles most ladder logic, structured text, and function block programs without issue. Processing speed keeps up with typical scan time requirements for discrete and some motion applications.
The dual EtherNet/IP ports support device-level ring topology, which adds network redundancy without extra switches. DIN rail or panel mounting options give flexibility during installation. For mid-range applications that need solid performance without the cost of higher-tier controllers, the 1769-L18ER specifications hit a practical sweet spot.
1769-L18ER Technical Specifications
Feature
Specification
Controller Type
CompactLogix
Integrated I/O
Yes (Digital)
Communication
EtherNet/IP
Memory
0.5 MB
Program Language
Ladder Logic, Structured Text, Function Block
Mounting
DIN Rail or Panel Mount
How the 1769-IA16 Digital Input Module Captures Field Signals
The 1769-IA16 digital input module brings 16 channels of AC input capability to your CompactLogix system. Each input detects voltage presence within the 74-132V AC range, converting those physical states into digital values the 1769-L18ER controller can process. This voltage range covers most standard industrial sensors, limit switches, and pushbuttons that operate on 120V AC circuits.
Wiring the 1769-IA16 input module requires attention to the terminal block layout. Each input has a dedicated terminal, and the common terminals need proper connection to complete the circuit. The module draws about 120 mA from the backplane at 5.1V DC, which factors into your power budget when planning chassis configurations with multiple modules.
Diagnostic LEDs on the module face indicate input status and fault conditions. A quick glance tells you which inputs are active and whether the module has detected any problems. This immediate feedback speeds up commissioning and troubleshooting. The 250V continuous isolation rating provides adequate protection between field wiring and the backplane electronics.
System integration with the 1769-L18ER happens through the CompactLogix chassis backplane. The module slides into an available slot, and the controller automatically recognizes it during the I/O configuration process in Studio 5000. Compatible modules across the 1769 series share this same integration approach, making expansion straightforward.
1769-IA16 Input Characteristics
Characteristic
Value
Number of Inputs
16
Input Type
Digital, AC
Voltage Range
74-132V AC, 47-63 Hz
Current Draw
120 mA @ 5.1V DC (backplane)
Isolation Voltage
250V (continuous)
How do I properly install and configure the 1769-IA16 digital input module?
Start by powering down the system completely—never install modules with power applied. Slide the 1769-IA16 onto the chassis rail until the backplane connector seats fully and the latch clicks. Run your field wiring to the terminal block, following the wiring diagrams in the module documentation. In Studio 5000 Logix Designer, add the module to your I/O tree under the appropriate chassis, then assign tag names and configure any input filtering or diagnostic settings. Download the configuration to the controller and verify each input responds correctly to field signals.
Programming the 1769-L18ER System with Studio 5000 Logix Designer
Studio 5000 Logix Designer serves as the development environment for all CompactLogix programming tasks. The software handles everything from I/O configuration to ladder logic development to online monitoring. When you add a 1769-IA16 to your project, Studio 5000 creates the appropriate data structures automatically, giving you immediate access to input status tags in your PLC programming.
Reading inputs from the 1769-IA16 in ladder logic looks like any other digital input operation. The tag structure follows a predictable pattern based on your module naming, so referencing specific inputs becomes intuitive. Structured text and function block programming work equally well for applications that benefit from those approaches.
EtherNet/IP configuration happens within the same environment. Adding remote I/O, HMIs, or drives to the network involves defining their connection parameters and mapping the necessary data exchanges. The 1769-L18ER handles producer/consumer messaging natively, which supports distributed architectures where multiple controllers share data.
Practical applications often combine input monitoring with output control sequences. A typical example reads limit switch states from the 1769-IA16, processes the logic in the controller, then drives outputs to control motors or actuators. Structured programming practices—using subroutines, clear tag naming, and thorough comments—make these programs maintainable over their operational lifetime.
Preventive maintenance catches problems before they shut down production. Regular visual inspections of module status LEDs reveal developing issues. Loose terminal connections cause intermittent faults that frustrate troubleshooting, so periodic torque checks on wiring terminals pay dividends. Environmental factors like heat, dust, and humidity affect module longevity, making enclosure maintenance part of the overall program.
When problems do occur, a systematic troubleshooting guide saves time. Start with the obvious—check power supply voltages and verify they fall within specification. Examine the module LEDs for fault indications. In Studio 5000, the controller diagnostics provide detailed fault information that often points directly to the problem. The 1769-IA16 reports input circuit faults when field wiring opens or shorts, which narrows the search considerably.
Firmware updates occasionally address bugs or add features. Rockwell Automation publishes release notes that describe what each update changes, so you can decide whether the update benefits your application. Module replacement follows a straightforward process: document the configuration, remove the faulty module, install the replacement, and restore the configuration. We provide reliable automation spare parts to support these maintenance activities.
What are common troubleshooting steps for CompactLogix 1769 series modules?
Begin by observing the module status indicators—solid green typically means normal operation, while flashing or red patterns indicate specific faults. Check all wiring connections for proper termination and secure contact. Measure input voltages to confirm they fall within the 74-132V AC range for the 1769-IA16. Open the controller diagnostics in Studio 5000 Logix Designer to read any logged faults or warnings. The combination of physical inspection and software diagnostics usually identifies the root cause.
Finding Genuine Allen Bradley Components for Your System

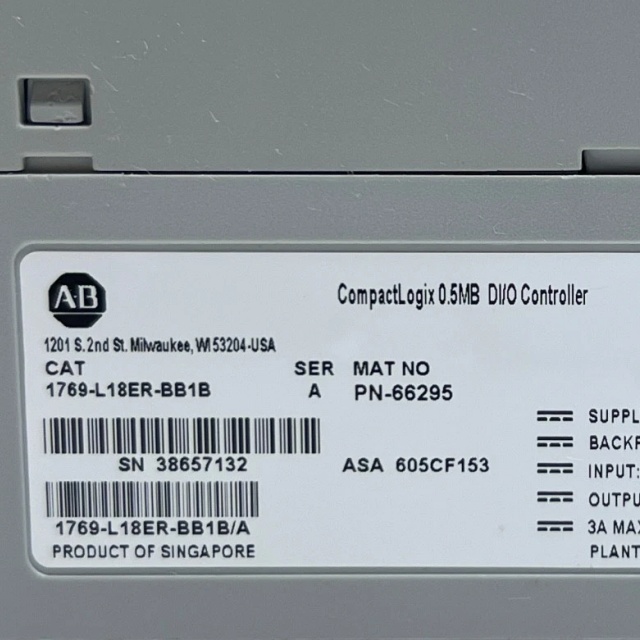

Counterfeit industrial components create real problems. They might work initially, then fail unpredictably under load or environmental stress. Worse, they can damage other system components or create safety hazards. When sourcing parts like the 1769-L18ER-BB1B, working with established suppliers who guarantee authenticity protects your investment and your operations.
Supply chain reliability matters in industrial settings where unplanned downtime carries significant costs. Maintaining relationships with suppliers who stock common and hard-to-find Allen Bradley parts means faster response when you need replacements. Technical support from knowledgeable staff helps when you have questions about compatibility or specifications.
We specialize in providing original PLC module and DCS card pieces from leading manufacturers. Our inventory supports applications across oil and gas, petrochemical, manufacturing, and other demanding industries. Clear warranty policies and fast delivery options minimize the impact when components need replacement.
Checklist for Reputable Component Suppliers
Criteria
Description
Authenticity
Guarantees genuine, original manufacturer parts
Inventory
Extensive stock of common and hard-to-find components
Lead Time
Fast delivery options to minimize downtime
Technical Support
Knowledgeable staff for product inquiries
Warranty
Clear warranty policies for supplied parts
Where the 1769-L18ER Fits Among CompactLogix Options
The CompactLogix 1769 series spans a range of capabilities, and the 1769-L18ER occupies a specific niche. Its integrated digital I/O reduces component count for applications that need basic discrete control without extensive expansion. The dual EtherNet/IP ports handle most connectivity requirements without additional communication modules.
Compared to the 1769-L3x series controllers, the 1769-L18ER trades some memory and processing capacity for a more integrated, cost-effective package. Applications with extensive motion control requirements or very large programs might outgrow the 1769-L18ER, but many discrete manufacturing and process applications fit comfortably within its capabilities.
Controller selection depends on matching specifications to application requirements. The 1769-L18ER works well for packaging machines, material handling systems, and smaller process skids where integrated I/O simplifies the design. Larger systems with distributed I/O requirements might benefit from controllers with more expansion capacity. Understanding these tradeoffs guides the right choice for each project.
What are the key differences between the 1769-L18ER and other CompactLogix controllers?
The 1769-L18ER integrates digital I/O directly into the controller, reducing the need for separate base I/O modules. Higher-end CompactLogix models like the 1769-L3x series offer more memory, faster processing, and greater expansion capacity for complex applications. The 1769-L18ER unique features center on its compact, all-in-one design that simplifies smaller systems. Controller performance scales with the model tier, so matching the controller to the application complexity ensures optimal results.
