X20BT9100 Advantages

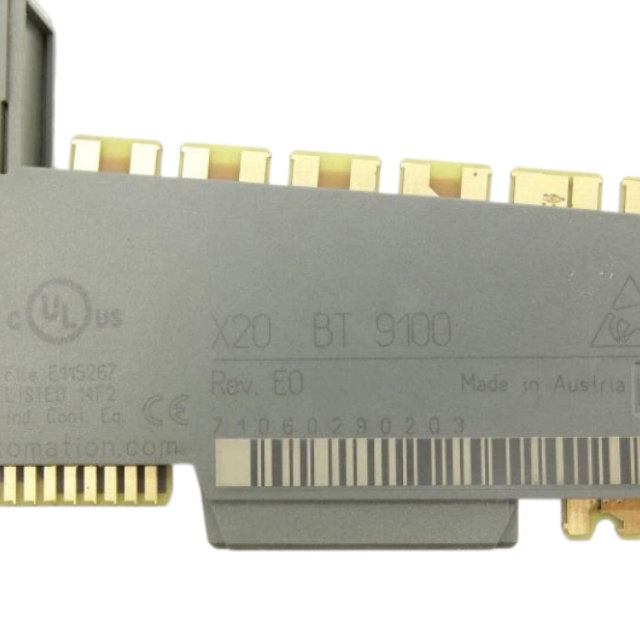

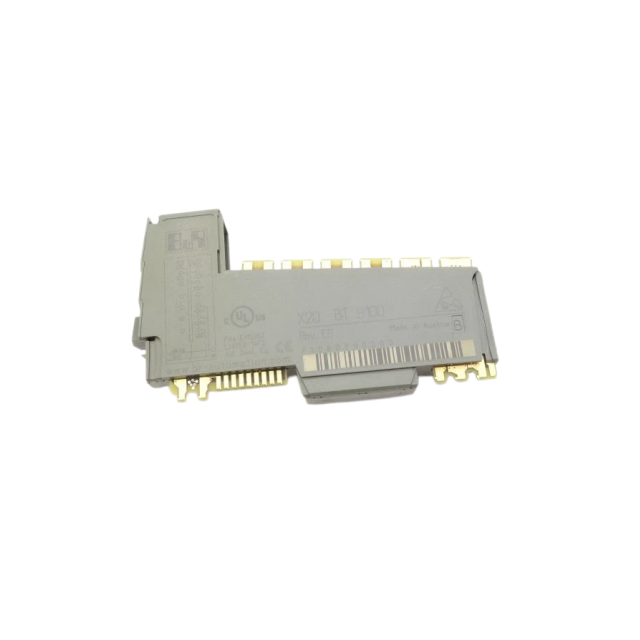

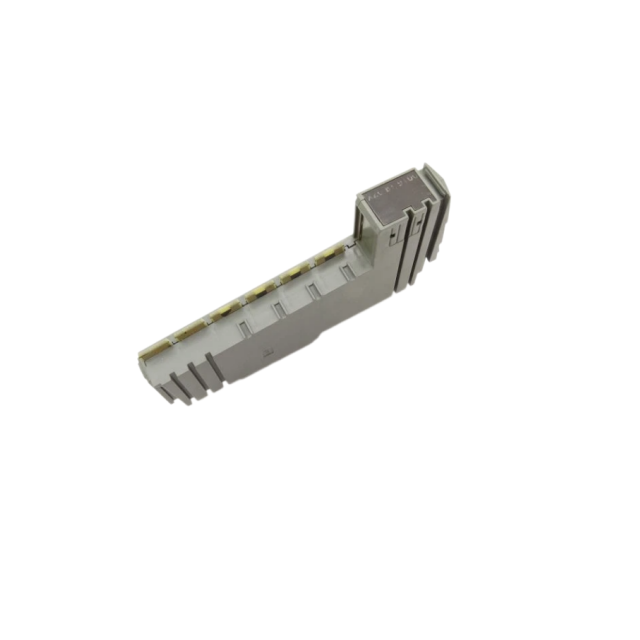

The B&R X20BT9100 Link Bus Transmitter stands out from comparable bus extension modules in several key areas.
Long‑distance X2X‑Link bus extension capability. The B&R X20BT9100 Link Bus Transmitter supports bus segment up to 100 meters, allowing remote X20 I/O stations to be placed away from the main controller cabinet. This capability is critical for large‑scale distributed automation layouts in machinery and power‑plant auxiliary systems.
Integrated I/O power feed function. Besides bus signal transmission, the B&R X20BT9100 Link Bus Transmitter supplies 24 VDC I/O power for remote stations, simplifying field power wiring for distributed I/O installations.
Visible LED status feedback. Front‑panel LEDs display X2X‑Link bus activity, module operating and fault status. Operators can quickly judge bus running conditions on‑site for maintenance work.
Strict slot installation rule. Designed for installation on the far‑right position of an X20 station, ensuring correct X2X‑Link signal termination for stable long‑distance communication.
Wide operating temperature range. The B&R X20BT9100 Link Bus Transmitter performs reliably under variable cabinet thermal conditions for both horizontal and vertical DIN‑rail mounting orientations. No additional cooling or heating protection is required.
Native X20 System integration. As a factory‑original B&R component, the B&R X20BT9100 Link Bus Transmitter directly mates with compatible X20 terminal blocks and X2X‑Link bus hardware. No extra adapters or custom modification are required.
X20BT9100 Applications
Machinery & Industrial Manufacturing. The B&R X20BT9100 Link Bus Transmitter serves as core X2X‑Link extension hardware within B&R X20 automation systems. The B&R X20BT9100 Link Bus Transmitter connects remote distributed I/O stations for large production machinery and automated processing lines.
Thermal Power & Energy Generation. The B&R X20BT9100 Link Bus Transmitter expands X2X‑Link communication for power‑plant BOP auxiliary systems. The B&R X20BT9100 Link Bus Transmitter enables I/O cabinets placed at long distances from main control cabinets to participate in system control loops.
Oil, Gas & Petrochemical Facilities. Hazardous‑location certifications make the B&R X20BT9100 Link Bus Transmitter suitable for cabinet installation inside petrochemical plant Zone 2 classified‑zone control buildings.
Water‑Wastewater Treatment Facilities. The B&R X20BT9100 Link Bus Transmitter realizes long‑distance bus connection for geographically‑scattered water‑treatment I/O stations. Stable bus extension performance from the B&R X20BT9100 Link Bus Transmitter directly affects treatment‑process safety and operation efficiency.
Industrial Process Auxiliary Systems. The B&R X20BT9100 Link Bus Transmitter contributes to critical automation control loops requiring traceable, high‑integrity long‑distance bus extension that meets stringent industrial regulatory and reliability standards.
X20BT9100 Certifications & Compliance
The B&R X20BT9100 Link Bus Transmitter holds the following international safety and compliance approvals:
CE certification for industrial control equipment used in B&R X20 System automation applications.
ATEX Zone 2 (II 3G Ex nA nC IIA T5 Gc), the European certification for non‑incendive equipment in explosive gas atmospheres.
cCSAus Class I Division 2 Groups A‑D, the North‑American hazardous‑location control‑equipment approval.
General industrial safety and EMC specifications for B&R X20 bus printed‑circuit assemblies.
All modules supplied are 100% new original B&R parts. Every B&R X20BT9100 Link Bus Transmitter unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
