X20CP3485 Advantages

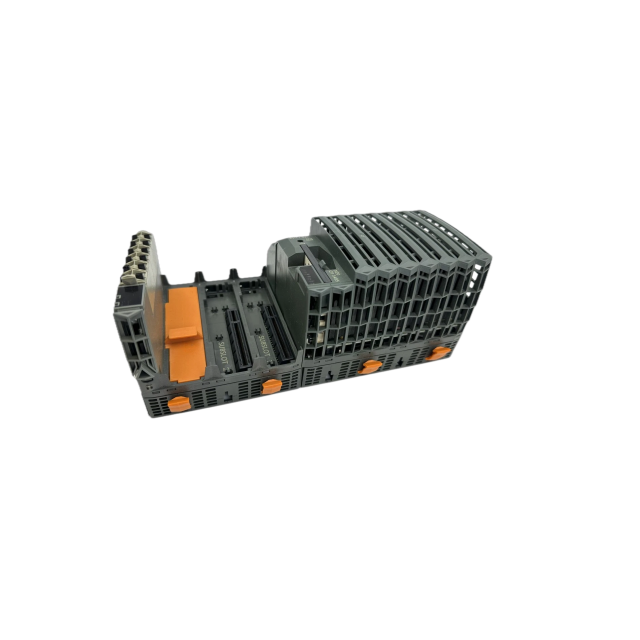

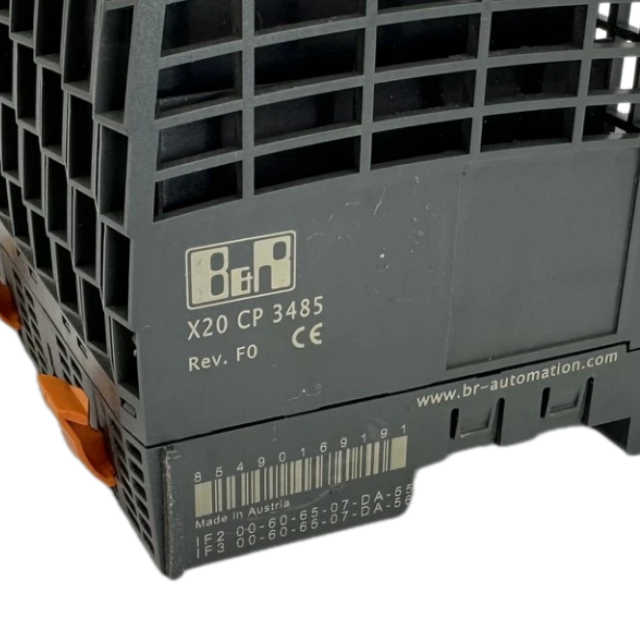

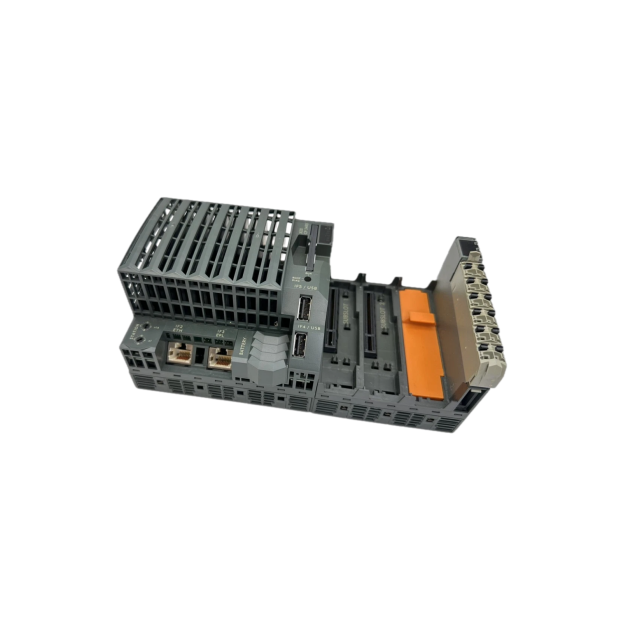

The B&R X20CP3485 Controller module stands out from comparable high-performance compact PLC controller modules in several key areas.
Fan-less high-performance real-time computing architecture. Intel Celeron 400 MHz main processor paired with dedicated background I/O off-load processor, shortest 400 µs task cycle supports complex multi-axis ACOPOS motion control and heavy-load process computing without cooling fans.
Three modular expansion slots. Compared with single-slot CPU models, the B&R X20CP3485 Controller module provides three expansion slots, allowing multiple different fieldbus interface modules to be installed simultaneously for complex multi-vendor system integration.
Rich native multi-protocol communication. Onboard 10/100 Mbit Ethernet, POWERLINK real-time bus, USB1.1 and RS232 reduce reliance on external gateway hardware, suitable for equipment networking and high-speed motion control scenarios.
Removable CompactFlash storage solution. Application programs, firmware and recipe data can be stored on CompactFlash media, convenient for program backup, device cloning and on-site program replacement.
Battery-backed remanent memory and real-time clock. Integrated lithium backup battery preserves remanent variable data and RTC time data during power loss, with built-in battery monitoring function to send early warning for battery aging.
Wide operating temperature range. The B&R X20CP3485 Controller module performs reliably under variable cabinet thermal conditions for both horizontal and vertical DIN-rail mounting orientations. No additional cooling or heating protection is required.
Native X20 System integration. As a factory-original B&R component, the B&R X20CP3485 Controller module directly mates with compatible X20 terminal blocks, I/O and bus hardware. No extra adapters or custom modification are required.
X20CP3485 Applications
Machinery & Industrial Manufacturing. The B&R X20CP3485 Controller module serves as high-end main control core within B&R X20 automation systems. The B&R X20CP3485 Controller module handles complex logic, multi-axis ACOPOS motion control and equipment interlock for sophisticated production machinery and automated processing lines.
Thermal Power & Energy Generation. The B&R X20CP3485 Controller module implements main-controller functions for power-plant BOP auxiliary control systems. The B&R X20CP3485 Controller module manages multi-group distributed X2X-Link I/O stations and executes complex process-control logic for auxiliary equipment protection.
Oil, Gas & Petrochemical Facilities. Hazardous-location certifications make the B&R X20CP3485 Controller module suitable for cabinet installation inside petrochemical plant Zone 2 classified-zone control buildings.
Water-Wastewater Treatment Facilities. The B&R X20CP3485 Controller module acts as high-performance central automation controller for large-scale water-treatment plants, managing multi-group distributed I/O loops, complex sequence control and centralized monitoring. Reliable real-time performance from the B&R X20CP3485 Controller module directly affects treatment-process safety and operation efficiency.
Industrial Process Auxiliary Systems. The B&R X20CP3485 Controller module contributes to critical automation control loops requiring traceable, high-integrity high-performance real-time computing performance that meets stringent industrial regulatory and reliability standards.
X20CP3485 Certifications & Compliance
The B&R X20CP3485 Controller module holds the following international safety and compliance approvals:
CE certification for industrial control equipment used in B&R X20 System automation applications.
ATEX Zone 2, the European certification for non-incendive equipment in explosive gas atmospheres.
cCSAus Class I Division 2 Groups A-D, the North American hazardous-location control-equipment approval.
General industrial safety and EMC specifications for B&R X20 controller printed-circuit assemblies.
All modules supplied are 100% new original B&R parts. Every B&R X20CP3485 Controller module unit is functionally tested before dispatch, packed in professional anti-static packaging, and covered by a one-year warranty from the date of delivery.
