X20DO4322 Advantages
The B&R X20DO4322 Digital Output Module stands out from comparable digital output modules in several key areas.
4‑channel 3‑wire sourcing digital outputs. Each channel supports 0.5 A rated output current with total module current up to 2 A, equipped with separate actuator power supply terminals, suitable for driving solenoid valves, contactors and indicator lights. This capability is critical for machinery sequence logic and auxiliary equipment on‑off control in industrial facilities.
Built‑in comprehensive output protection. Integrated thermal cut‑off responds to short‑circuit and over‑current faults. Internal freewheeling diode absorbs reverse electromotive force when switching inductive loads. This design protects the B&R X20DO4322 Digital Output Module and extends the service life of field actuators.
OSP predefined output state function. When communication between the B&R X20DO4322 Digital Output Module and the X20 CPU is interrupted, the module can execute user‑defined output states to avoid uncontrolled equipment action and improve system safety.
Per‑channel status monitoring and diagnostic feedback. The B&R X20DO4322 Digital Output Module provides channel switching state and fault information via X2X‑Link bus to X20 CPU. This helps operators quickly locate abnormal output channels for maintenance.
Wide operating temperature range. The B&R X20DO4322 Digital Output Module performs reliably under variable cabinet thermal conditions for both horizontal and vertical DIN‑rail mounting orientations. No additional cooling or heating protection is required.
Native X20 System integration. As a factory‑original B&R component, the B&R X20DO4322 Digital Output Module directly mates with compatible X20 terminal blocks and X2X‑Link bus hardware. No extra adapters or custom modification are required.
X20DO4322 Applications
Machinery & Industrial Manufacturing. The B&R X20DO4322 Digital Output Module acts as a core digital control output unit within B&R X20 automation systems. The B&R X20DO4322 Digital Output Module drives solenoid valves, contactors, indicator lamps, and actuators for production machinery and automated processing lines.
Thermal Power & Energy Generation. The B&R X20DO4322 Digital Output Module supports auxiliary‑equipment logic output for power‑plant BOP systems. The B&R X20DO4322 Digital Output Module executes switching commands for fans, valves, and auxiliary relays to prevent equipment abnormal operation.
Oil, Gas & Petrochemical Facilities. Hazardous‑location certifications make the B&R X20DO4322 Digital Output Module suitable for cabinet installation inside petrochemical plant Zone 2 classified‑zone control buildings.
Water‑Wastewater Treatment Facilities. The B&R X20DO4322 Digital Output Module delivers reliable switching control for pumps, valves, and auxiliary execution units in water‑treatment process loops. Stable output performance from the B&R X20DO4322 Digital Output Module directly affects treatment‑process safety and operation efficiency.
Industrial Process Auxiliary Systems. The B&R X20DO4322 Digital Output Module contributes to critical automation control loops requiring traceable, high‑integrity digital switching output. The B&R X20DO4322 Digital Output Module meets stringent industrial regulatory and reliability standards.

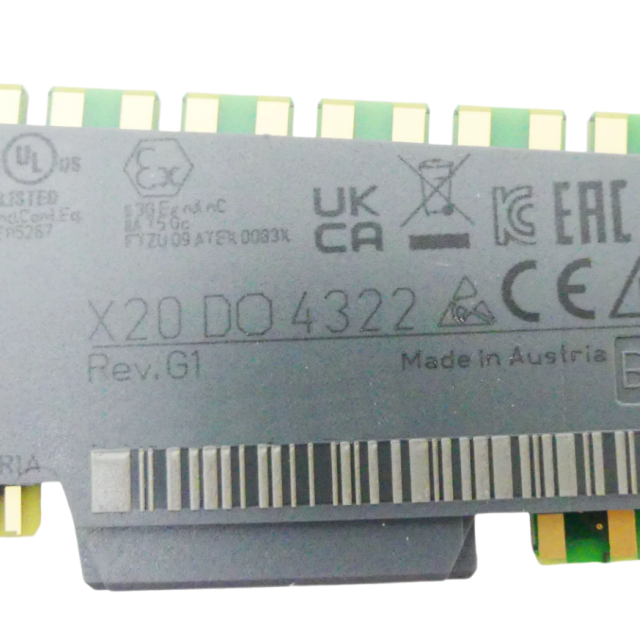

X20DO4322 Certifications & Compliance
The B&R X20DO4322 Digital Output Module holds the following international safety and compliance approvals:
CE certification for industrial control equipment used in B&R X20 System automation applications.
ATEX Zone 2 (II 3G Ex nA nC IIA T5 Gc), the European certification for non‑incendive equipment in explosive gas atmospheres.
cCSAus Class I Division 2 Groups A‑D, the North American hazardous‑location control‑equipment approval.
General industrial safety and EMC specifications for B&R X20 I/O printed‑circuit assemblies.
All modules supplied are 100% new original B&R parts. Every B&R X20DO4322 Digital Output Module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
