X20DO9322 Advantages
The B&R X20DO9322 Digital Output Module stands out from comparable digital output modules in several key areas.
12-channel high-density sourcing digital outputs. Each channel supports 0.5 A rated output current with total module current up to 6 A, capable of driving multiple field solenoid valves, contactors, and indicator lights simultaneously. This capability is critical for machinery sequence logic and auxiliary equipment on-off control in industrial facilities.
Built-in comprehensive output protection. Integrated thermal cut-off responds to short-circuit and over-current faults. Internal freewheeling diode absorbs reverse electromotive force when switching inductive loads. This design protects the B&R X20DO9322 Digital Output Module and extends the service life of field actuators.
Per-channel status monitoring and diagnostic feedback. The B&R X20DO9322 Digital Output Module provides channel switching state and fault information via X2X-Link bus to X20 CPU. This helps operators quickly locate abnormal output channels for maintenance.
1-wire source-type output design. This design simplifies field wiring architecture, reduces wiring workload inside control cabinets, and fits most standard 24 VDC industrial actuator application scenarios.
Wide operating temperature range. The B&R X20DO9322 Digital Output Module performs reliably under variable cabinet thermal conditions for both horizontal and vertical DIN-rail mounting orientations. No additional cooling or heating protection is required.
Native X20 System integration. As a factory-original B&R component, the B&R X20DO9322 Digital Output Module directly mates with compatible X20 terminal blocks and X2X-Link bus hardware. No extra adapters or custom modification are required.
X20DO9322 Applications
Machinery & Industrial Manufacturing. The B&R X20DO9322 Digital Output Module acts as a core digital control output unit within B&R X20 automation systems. The B&R X20DO9322 Digital Output Module drives solenoid valves, contactors, indicator lamps, and actuators for production machinery and automated processing lines.
Thermal Power & Energy Generation. The B&R X20DO9322 Digital Output Module supports auxiliary-equipment logic output for power-plant BOP systems. The B&R X20DO9322 Digital Output Module executes switching commands for fans, valves, and auxiliary relays to prevent equipment abnormal operation.
Oil, Gas & Petrochemical Facilities. Hazardous-location certifications make the B&R X20DO9322 Digital Output Module suitable for cabinet installation inside petrochemical plant Zone 2 classified-zone control buildings.
Water-Wastewater Treatment Facilities. The B&R X20DO9322 Digital Output Module delivers reliable switching control for pumps, valves, and auxiliary execution units in water-treatment process loops. Stable output performance from the B&R X20DO9322 Digital Output Module directly affects treatment-process safety and operation efficiency.
Industrial Process Auxiliary Systems. The B&R X20DO9322 Digital Output Module contributes to critical automation control loops requiring traceable, high-integrity digital switching output. The B&R X20DO9322 Digital Output Module meets stringent industrial regulatory and reliability standards.

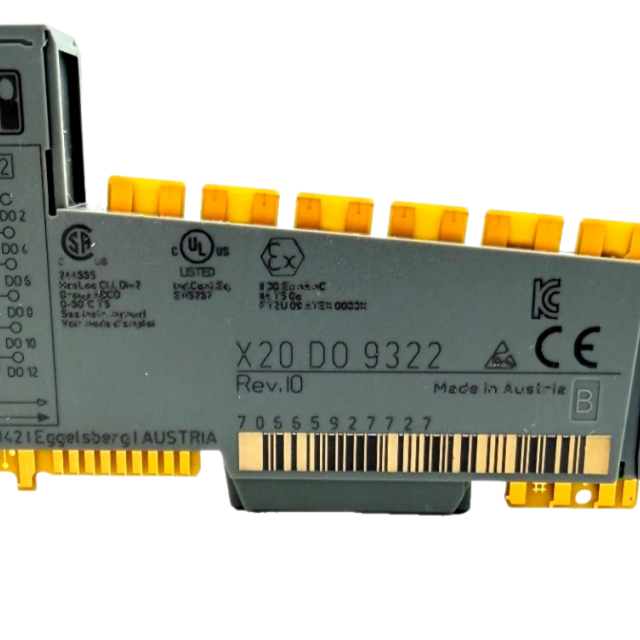

X20DO9322 Certifications & Compliance
The B&R X20DO9322 Digital Output Module holds the following international safety and compliance approvals:
CE certification for industrial control equipment used in B&R X20 System automation applications.
ATEX Zone 2 (II 3G Ex nA nC IIA T5 Gc), the European certification for non-incendive equipment in explosive gas atmospheres.
cCSAus Class I Division 2 Groups A-D, the North American hazardous-location control-equipment approval.
General industrial safety and EMC specifications for B&R X20 I/O printed-circuit assemblies.
All modules supplied are 100% new original B&R parts. Every B&R X20DO9322 Digital Output Module unit is functionally tested before dispatch, packed in professional anti-static packaging, and covered by a one-year warranty from the date of delivery.
