X20PD2113 Advantages
The B&R X20PD2113 Potential Distributor Module stands out from comparable potential distribution modules in several key areas.
Multi‑channel potential distribution terminals. The B&R X20PD2113 Potential Distributor Module offers six independent 24 VDC and six ground terminals, convenient for parallel power supply for multiple field sensors and actuators, reducing additional terminal block usage inside control cabinets.
Replaceable micro‑fuse with fuse‑blow monitoring. The B&R X20PD2113 Potential Distributor Module adopts field‑replaceable 6.3 A slow‑blow micro‑fuse. Once the fuse blows, fault signals can be uploaded to X20 CPU via X2X‑Link bus for alarm notification, supporting quick on‑site maintenance.
External I/O power feed capability. Besides taking power from X20 station backplane, the B&R X20PD2113 Potential Distributor Module accepts external 24 VDC I/O power input, offering flexible potential distribution schemes for special cabinet wiring layouts.
Visual LED status feedback. Front‑panel LEDs indicate module operating state and fuse fault status, allowing operators to rapidly judge power distribution health without extra measuring instruments.
Wide operating temperature range. The B&R X20PD2113 Potential Distributor Module performs reliably under variable cabinet thermal conditions for both horizontal and vertical DIN‑rail mounting orientations. No additional cooling or heating protection is required.
Native X20 System integration. As a factory‑original B&R component, the B&R X20PD2113 Potential Distributor Module directly mates with compatible X20 terminal blocks and X2X‑Link bus hardware. No extra adapters or custom modification are required.
X20PD2113 Applications
Machinery & Industrial Manufacturing. The B&R X20PD2113 Potential Distributor Module acts as core power‑potential distribution unit within B&R X20 automation systems. The B&R X20PD2113 Potential Distributor Module distributes 24 VDC power for proximity switches, solenoid valves and other field components for production machinery and automated processing lines.
Thermal Power & Energy Generation. The B&R X20PD2113 Potential Distributor Module provides potential distribution for sensors and auxiliary actuators of power‑plant BOP auxiliary systems. The B&R X20PD2113 Potential Distributor Module realizes centralized power branching for field‑side I/O devices.
Oil, Gas & Petrochemical Facilities. Hazardous‑location certifications make the B&R X20PD2113 Potential Distributor Module suitable for cabinet installation inside petrochemical plant Zone 2 classified‑zone control buildings.
Water‑Wastewater Treatment Facilities. The B&R X20PD2113 Potential Distributor Module implements power branching for distributed valves, pump auxiliary sensors in water‑treatment process loops. Stable potential distribution performance from the B&R X20PD2113 Potential Distributor Module directly affects treatment‑process safety and operation efficiency.
Industrial Process Auxiliary Systems. The B&R X20PD2113 Potential Distributor Module contributes to critical automation control loops requiring traceable, high‑integrity power‑potential branching that meets stringent industrial regulatory and reliability standards.

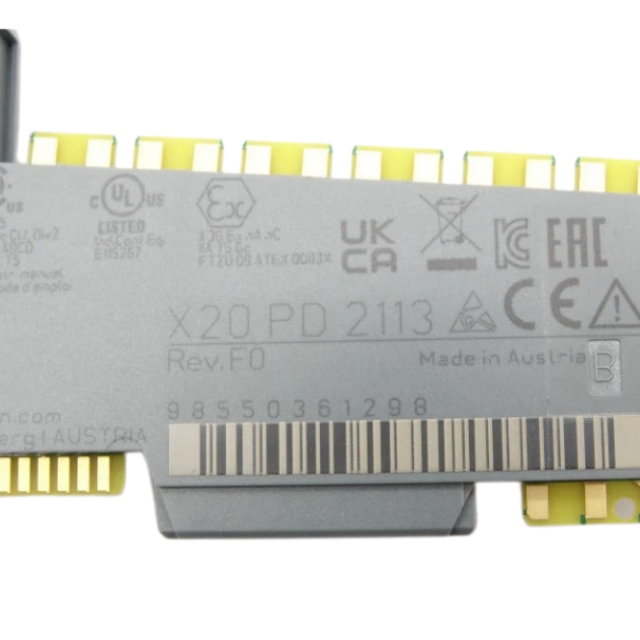

X20PD2113 Certifications & Compliance
The B&R X20PD2113 Potential Distributor Module holds the following international safety and compliance approvals:
CE certification for industrial control equipment used in B&R X20 System automation applications.
ATEX Zone 2 (II 3G Ex nA nC IIA T5 Gc), the European certification for non‑incendive equipment in explosive gas atmospheres.
cCSAus Class I Division 2 Groups A‑D, the North‑American hazardous‑location control‑equipment approval.
General industrial safety and EMC specifications for B&R X20 power‑distribution printed‑circuit assemblies.
All modules supplied are 100% new original B&R parts. Every B&R X20PD2113 Potential Distributor Module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
