X20PS9500 Advantages

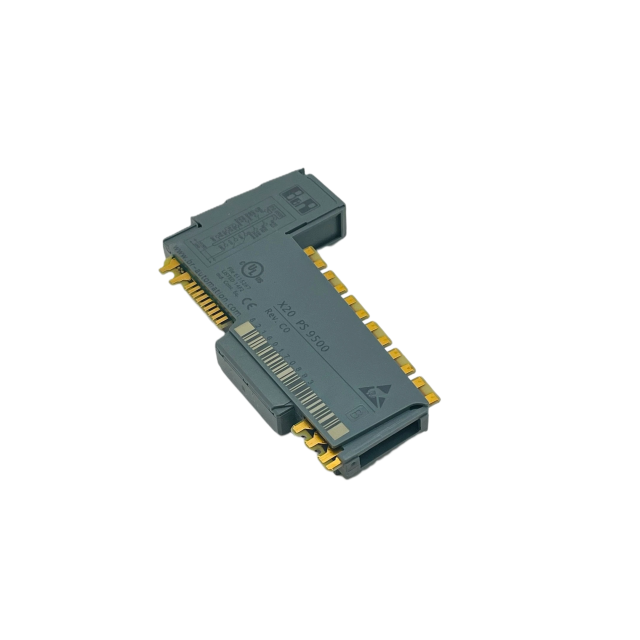

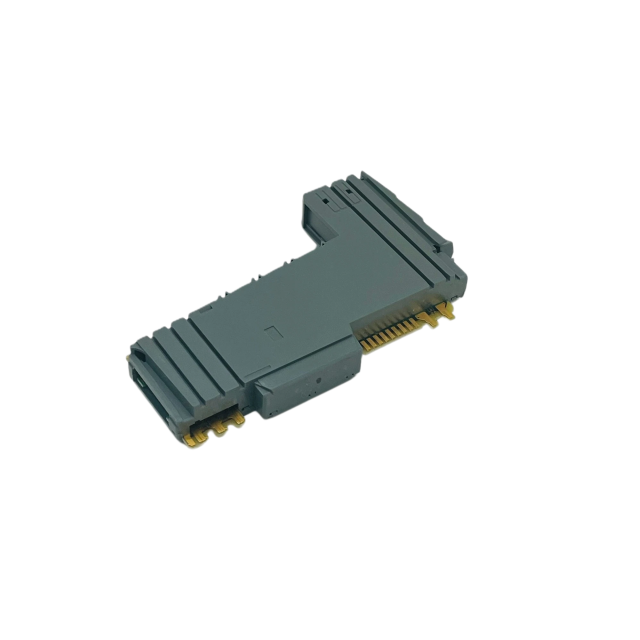

The B&R X20PS9500 24 VDC Power Supply Module stands out from comparable station power supply modules in several key areas.
Multi‑functional all‑in‑one station power unit. The B&R X20PS9500 24 VDC Power Supply Module supplies regulated 7 W X2X‑Link bus power for compact or fieldbus CPU while passing through high‑current 24 VDC I/O power, integrating RS232 and CAN communication ports within single module slice. This capability saves cabinet space and reduces component count for compact automation stations.
Redundancy‑ready X2X‑Link power output. Parallel‑capable X2X‑Link power output allows multiple B&R X20PS9500 24 VDC Power Supply Module units for redundant power configuration, improving system availability for critical industrial control. Short‑circuit‑proof design protects X2X‑Link bus side against field faults.
Comprehensive visual diagnostic feedback. Separate LED indicators display module run status, overload warning, CAN‑bus and RS232 communication activity. Operators can quickly judge power and communication health status on‑site for maintenance work.
Clear protection partitioning. X2X‑Link input has built‑in reverse‑polarity protection and non‑replaceable internal fuse; I/O power path relies on external slow‑blow pre‑fuse, which helps users implement correct protection scheme according to project requirements.
Wide operating temperature range. The B&R X20PS9500 24 VDC Power Supply Module performs reliably under variable cabinet thermal conditions for both horizontal and vertical DIN‑rail mounting orientations. No additional cooling or heating protection is required.
Native X20 System integration. As a factory‑original B&R component, the B&R X20PS9500 24 VDC Power Supply Module directly mates with compatible X20 terminal blocks and X2X‑Link bus hardware. No extra adapters or custom modification are required.
X20PS9500 Applications
Machinery & Industrial Manufacturing. The B&R X20PS9500 24 VDC Power Supply Module acts as core power and communication unit for compact X20 CPU stations within B&R X20 automation systems. The B&R X20PS9500 24 VDC Power Supply Module provides X2X‑Link power, I/O power pass‑through and serial/CAN communication for small‑to‑medium production machinery and automated processing lines.
Thermal Power & Energy Generation. The B&R X20PS9500 24 VDC Power Supply Module serves compact control stations of power‑plant BOP auxiliary systems. The B&R X20PS9500 24 VDC Power Supply Module ensures stable bus power feeding and auxiliary communication links for local I/O cabinets.
Oil, Gas & Petrochemical Facilities. Hazardous‑location certifications make the B&R X20PS9500 24 VDC Power Supply Module suitable for cabinet installation inside petrochemical plant Zone 2 classified‑zone control buildings.
Water‑Wastewater Treatment Facilities. The B&R X20PS9500 24 VDC Power Supply Module delivers station power and auxiliary communication interfaces for distributed compact control cabinets in water‑treatment process loops. Stable power and communication performance from the B&R X20PS9500 24 VDC Power Supply Module directly affects treatment‑process safety and operation efficiency.
Industrial Process Auxiliary Systems. The B&R X20PS9500 24 VDC Power Supply Module contributes to critical automation control loops requiring traceable, high‑integrity station power supply and auxiliary bus interfaces that meets stringent industrial regulatory and reliability standards.
X20PS9500 Certifications & Compliance
The B&R X20PS9500 24 VDC Power Supply Module holds the following international safety and compliance approvals:
CE certification for industrial control equipment used in B&R X20 System automation applications.
ATEX Zone 2 (II 3G Ex nA nC IIA T5 Gc), the European certification for non‑incendive equipment in explosive gas atmospheres.
cCSAus Class I Division 2 Groups A‑D, the North American hazardous‑location control‑equipment approval.
General industrial safety and EMC specifications for B&R X20 power printed‑circuit assemblies.
All modules supplied are 100% new original B&R parts. Every B&R X20PS9500 24 VDC Power Supply Module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
