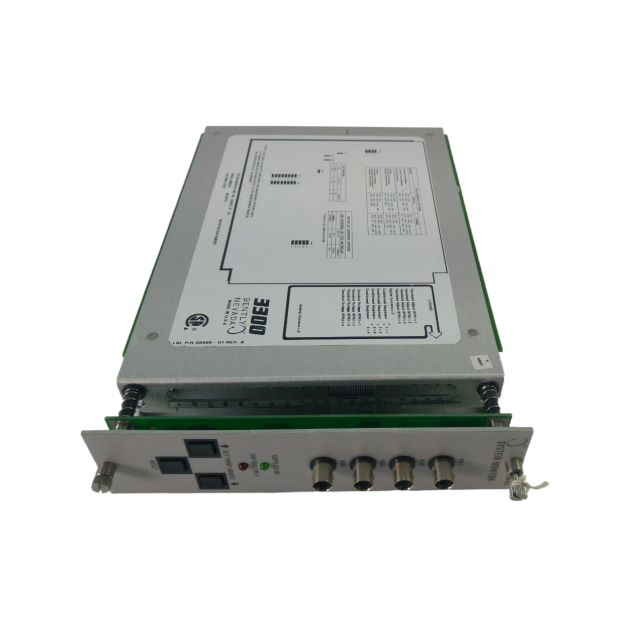

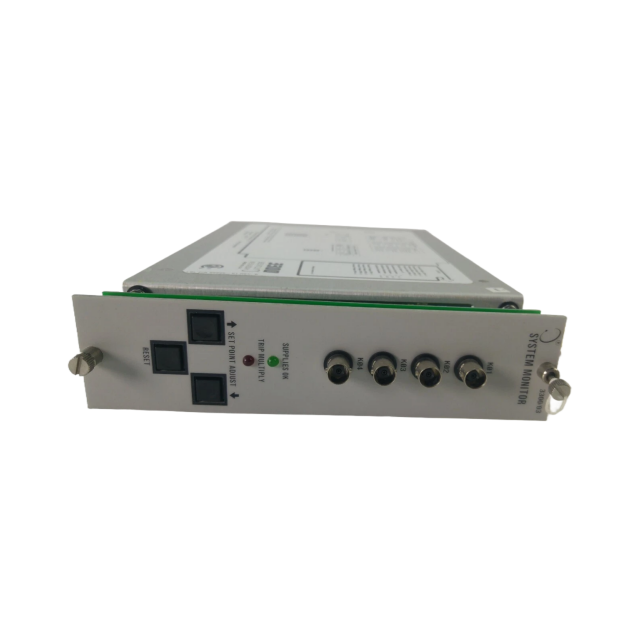

Bently Nevada 3300/03-01-00 System Monitor

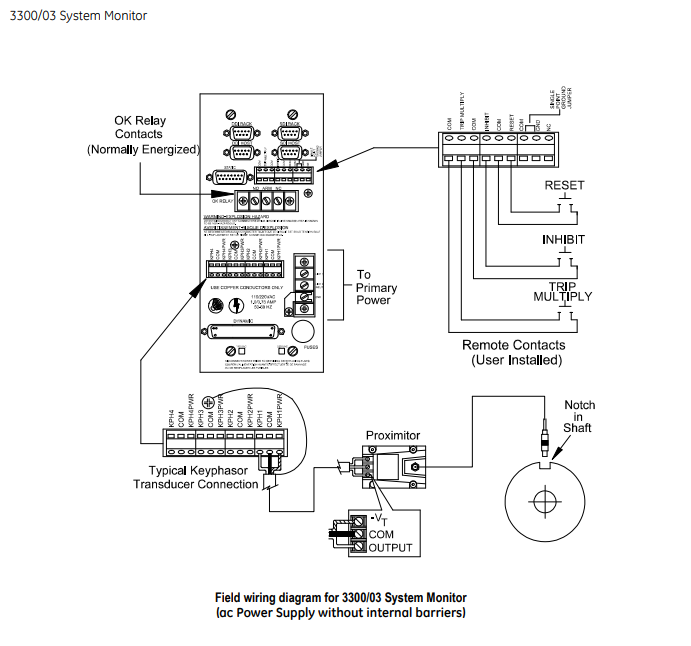

⚠⚠⚠Field wiring failures of the transducer, monitor malfunctions, or loss of primary power can all

lead to the loss of machinery protection. Such a failure may result in property damage and/or bodily

injury. Therefore, we strongly recommend connecting an external annunciator (mounted on the

operator control panel) to the OK Relay terminals to enhance the safety early warning mechanism.

Within a 3300 monitor rack, the 3300/03-01-00 System Monitor fulfills four key roles: first, 3300/03-01-00 delivers functions common to all monitors in the rack, including alarm setpoint adjustment, Keyphasor® power supply, termination, conditioning, and distribution, as well as alarm acknowledgement; second, 3300/03-01-00 enables connection of all installed monitors to an external communications processor (sold separately) via STATIC and DYNAMIC data ports; third, 3300/03-01-00 offers an optional Serial Data Interface (SDI) for transmitting transducer and monitor data to process computers, digital/distributed control systems, programmable controllers, and other control and automation systems; and fourth, 3300/03-01-00 provides an optional Dynamic Data Interface (DDI) that sends transducer and monitor data to compatible Bently Nevada machinery management software—an option that may eliminate the need for an external communications processor depending on the type of data required
