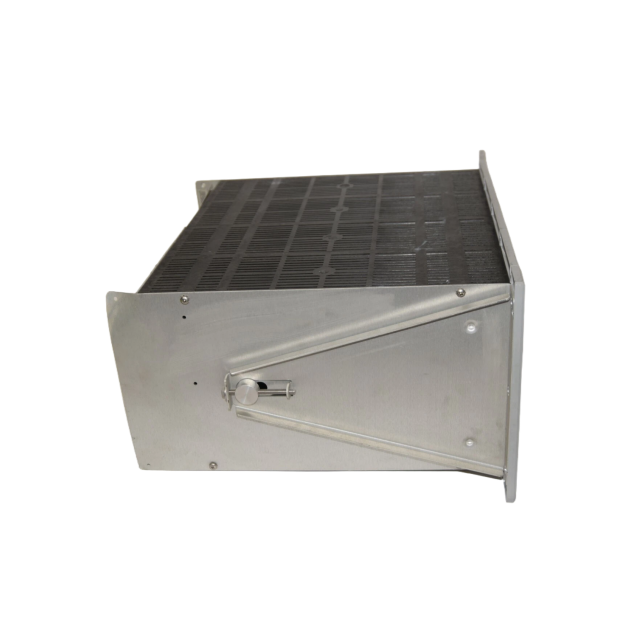

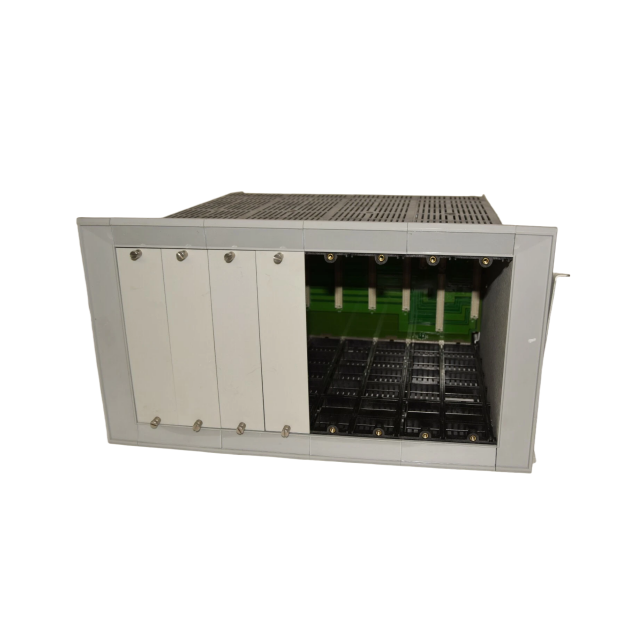

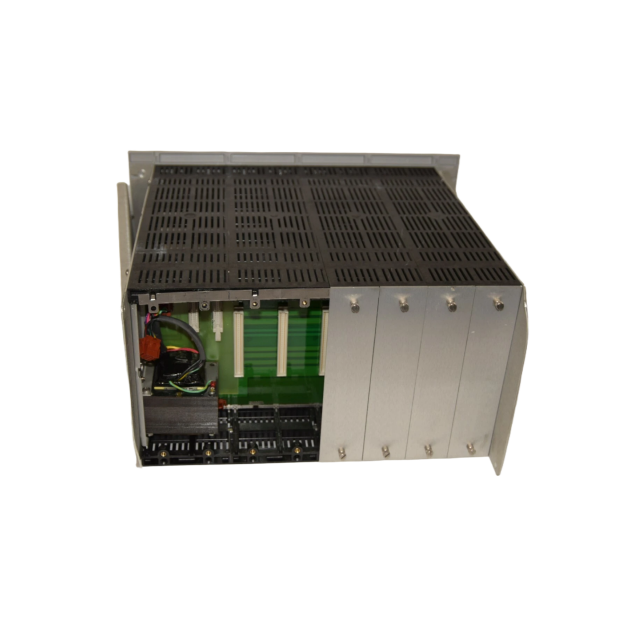

Bently Nevada 3300/05-23-00-00 10 Slot Rack PLC Chassis

⚠⚠⚠

The 3300/05 rack serves as a durable, easily accessible, and expandable mounting solution for the

3300 Monitoring System. It is designed to house a Power Supply, a System Monitor, and various 3300

Monitor models—with each monitor position featuring a dedicated Signal Input/Relay Module slot at

the rack’s rear.

Constructed in modular sections from injection-molded plastic, the rack mainframe uses a conductive

antistatic material to dissipate electrostatic discharge, safeguarding internal components. Its bezel

supports clear identification of machine/monitor points or loop numbers: users can choose between

factory-engraved bezel tags or paper tags protected by transparent plastic strips.

The 3300’s modular design eliminates the need for internal rack wiring and enables hassle-free

expansion to adapt to growing monitoring needs. For optimal setup, the left-most slot (Position 1) is

designated exclusively for the Power Supply, the adjacent slot (Position 2) is reserved for the System

Monitor, and the remaining slots (Positions 3–14) can be configured with any combination of

individual monitors.

Q: What is the earliest time when you can make delivery?

A: We will make delivery once received your payment.

Q: If the product can't work, can it be returned?

A: We provide one year warranty.

Q: How easy is it to obtain items?

A: New are no longer continuously manufactured, and therefore supply is scarce.

However, we specialize in sourcing hard-to-find products, and although

the lead time varies, the average is between 5-7 business days.

Q: What is the typical price for the items?

A: Our company always gives customers excellent service and prices that

are highly competitive. Requirements for delivery and availability do affect pricing.
