Accepts a wide range of AC input voltages (85 to 264 Vac rms, 47 to 63 Hz), making it compatible with global power grids. It conditions raw input power to eliminate voltage fluctuations and noise, ensuring consistent power delivery to the associated 3500/15 Universal AC Power Supply Module.
Power Supply Protection
Incorporates built-in over-voltage protection via a dedicated fuse—triggering fuse opening in case of input over-voltage to prevent damage to the PIM, power supply module, and downstream 3500 system components. Under-voltage conditions are also safeguarded without causing harm to the module or connected equipment.
Redundant Power Architecture Support

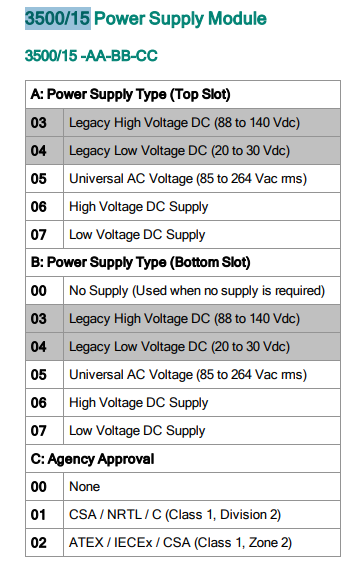

Works seamlessly with dual 3500/15 power supplies (primary in lower slot, backup in upper slot) in the 3500 rack. Supports hot-swapping of power supply modules without disrupting rack operation, ensuring uninterrupted power for critical machinery monitoring applications.
Mechanical & Electrical Integration

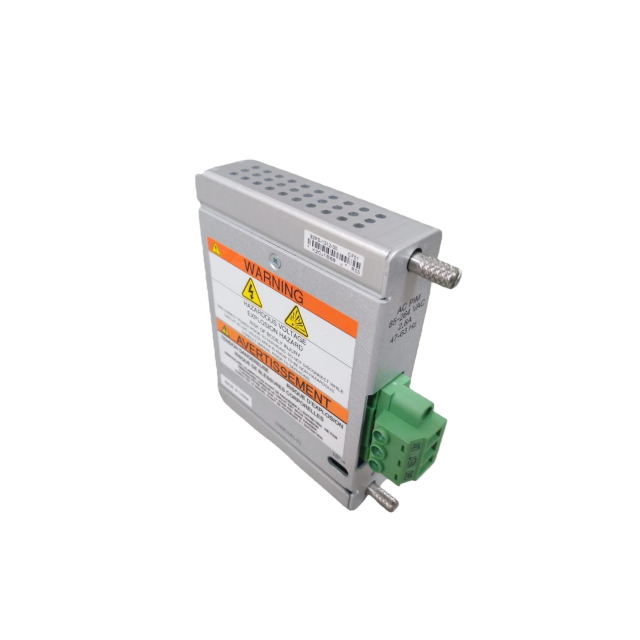

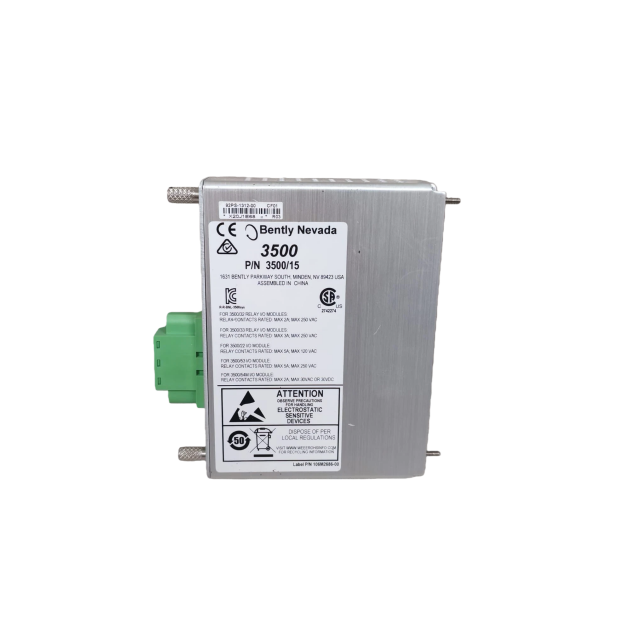

Mounts directly behind the associated 3500/15 Universal AC Power Supply Module in a dedicated half-height slot on the left side of the 3500 rack. Provides secure electrical connectivity between the external AC power source and the power supply module, maintaining signal integrity and system stability.
System Compatibility

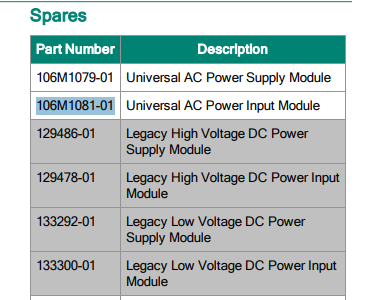

Exclusively paired with the 3500/15 Universal AC Power Supply Module (Part Number: 106M1079-01) and is not compatible with legacy 3500 AC/DC power supplies or PIMs. Ensures compliance with the 3500 system’s power distribution standards for consistent performance.
Characteristics
Operating Temperature Range: -30°C to +65°C (-22°F to +150°F), suitable for extreme
