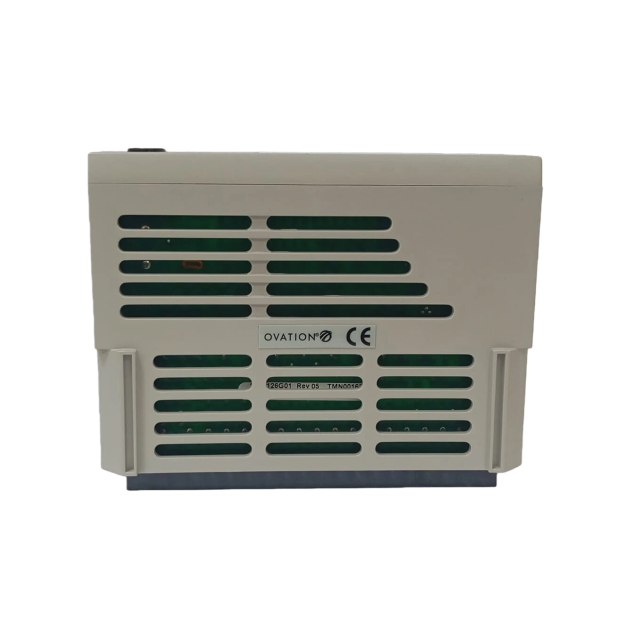

Emerson Ovation 1C31125G01: Personality Module for Digital Output Modules – Technical Overview & Integration Guide
The 1C31125G01 is a dedicated Personality Module engineered exclusively for Emerson’s Ovation Digital Output Modules, serving as the critical interface between the Ovation Electronics Module (1C31122G01) and field wiring. Designed to route field signals, provide surge protection, and enable seamless integration with both direct field devices and relay panels, this module ensures reliable switching of 0–60 VDC loads—essential for industrial applications like power generation, petrochemical processing, and manufacturing. Below is a detailed breakdown of its core functions, specifications, installation, and maintenance, optimized for clarity and search visibility to support efficient integration into Ovation Distributed Control System (DCS) architectures.
1. Core Function & Key Capabilities
The 1C31125G01 acts as the signal-routing and protection hub for Ovation Digital Output Modules, bridging the gap between the module’s electronics and field-connected devices. Its primary capabilities include:
Field Signal Routing: Directly interfaces with the 1C31122G01 Electronics Module to route digital output signals to field devices (e.g., relays, solenoids, lamps) via the base unit’s terminal block, with clear labeling for easy wiring.
Surge Protection: Incorporates passive components to shield the Electronics Module from voltage transients and normal-mode surges, preventing damage to sensitive circuitry during field operation.
Relay Panel Compatibility: Supports integration with Ovation relay panels (e.g., G2R, KUEP, solid-state) when paired with the 1C31122G01 Electronics Module, enabling control of high-current/high-voltage loads beyond the module’s direct 500 mA per channel rating.

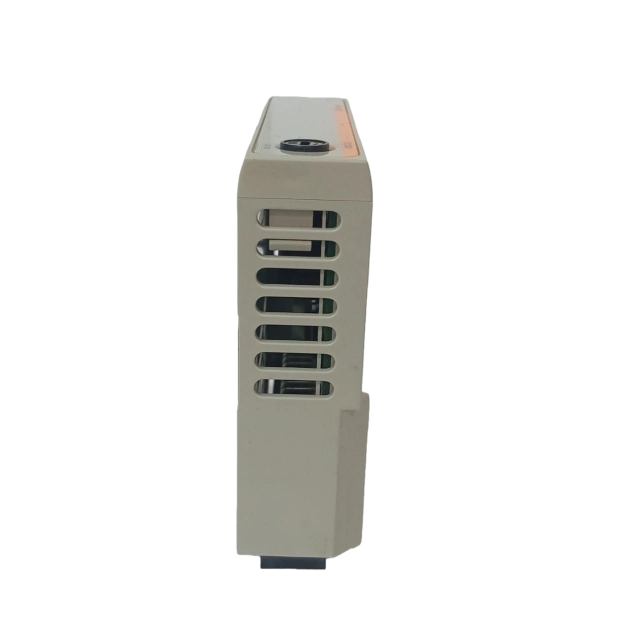

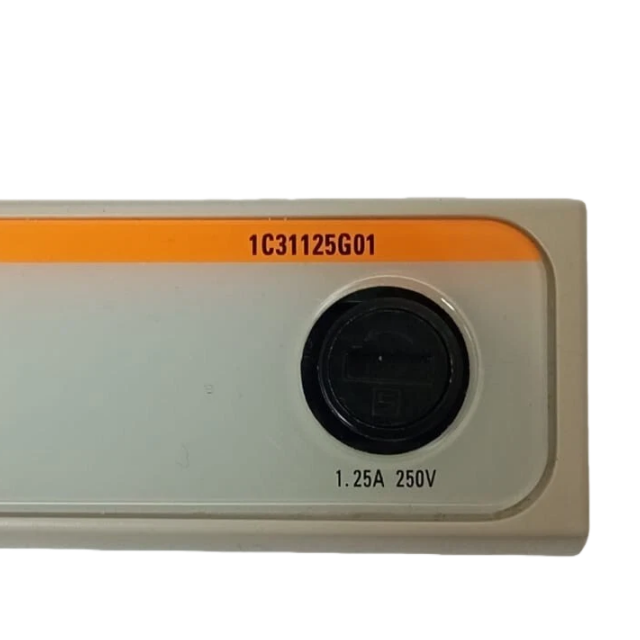

Fuse Protection: Features a user-serviceable fuse (1.25A, 250V fast-acting) to safeguard the auxiliary power supply, preventing overloads from impacting the module or connected field devices.
CE Mark Compliance: Meets EN 61000-4 standards for electromagnetic compatibility (EMC), making it suitable for regulated industrial environments across global markets.
2. Technical Specifications
2.1 Electrical Specifications
Signal Compatibility: Designed exclusively for use with the Ovation 1C31122G01 Digital Output Electronics Module, supporting 16 single-ended digital output channels.
Voltage Range: Optimized for 0–60 VDC field loads, matching the output capabilities of the paired Electronics Module.
Fuse Rating: 1.25A, 250V fast-acting (part number EX06098), user-serviceable and located on the module for easy replacement.
Dielectric Isolation: Ensures 1000 V AC/DC isolation between field terminals and logic circuits, complying with IEC 61010 safety standards to protect operators and equipment from electrical hazards.
Surge Protection: Integrates passive surge suppression components to handle transient voltages, reducing the risk of damage from field wiring-induced spikes.
2.2 Environmental Specifications
Operating Temperature Range: 0–60°C (32–140°F), suitable for installation in industrial cabinets with standard ambient temperature control (no additional cooling required for typical operation).
Storage Temperature Range: -40–85°C (-40–185°F), withstanding extreme conditions during shipping or offline storage.
Humidity Tolerance: 0–95% non-condensing, resistant to moisture in harsh environments like refineries, wastewater treatment plants, or coastal facilities.
Vibration & Shock Resistance: Complies with IEC 60068-2-6 (vibration: 10–500 Hz, 0.15 g) and IEC 60068-2-27 (shock: 100 g, 1 ms), surviving mechanical stress from plant equipment operation or cabinet movement.
2.3 Mechanical & Physical Specifications
Form Factor: Plug-in design, engineered to fit Ovation standard I/O base units (e.g., 1B30035H01) with a dedicated Personality Module cavity.
Dimensions: 12.7 mm (width) × 80 mm (height) × 60 mm (depth), matching the footprint of other Ovation Personality Modules for consistent cabinet spacing.
Terminal Block Compatibility: Interfaces with 18-position terminal blocks in Ovation base units, with clearly labeled connections for “+” (output positive), “-” (output negative), shield (SH), and auxiliary power (PS+, PS-).
Weight: 30 grams, lightweight and easy to install without additional cabinet support.
3. Compatibility & Required Components
The 1C31125G01 is engineered to work seamlessly within Ovation DCS architectures, requiring specific components for full functionality:
3.1 Ovation System Compatibility
Electronics Modules: Exclusively compatible with the Ovation 1C31122G01 Digital Output Electronics Module—no other Electronics Module models are supported.
Base Units: Designed for use with Ovation standard I/O base units (e.g., 1B30035H01), which provide the terminal block for field wiring and DIN rail mounting.
Relay Panels: Works with Ovation relay panels for high-load applications, including:
G2R relay panels (5A22411H01): 16 Form C relays, 10A @ 250 VAC.
KUEP relay panels (5A22412G01/G02): 16 Form C/Form X relays, 10A @ 250 VAC.
Solid-state relay panels (5A22410H01/H02): 16 solid-state outputs, 3.5A @ 250 VAC (note: solid-state panels are not CE Mark certified).
Field Devices: Compatible with all 0–60 VDC field loads, including solenoid valves, contactors, indicator lamps, and small motors (up to 500 mA per channel).
3.2 Required Accessories
Fuse: 1.25A, 250V fast-acting fuse (Emerson part number EX06098) for auxiliary power protection—replace with exact rating only.
Wire Ferrules: 18–22 AWG ferrules (e.g., Emerson part number 1B30047G01) for stranded wire, ensuring secure terminal connections and preventing loose strands.
Torque Screwdriver: For tightening terminal block screws (recommended torque: 0.8 N·m) to avoid over-tightening (which damages terminals) or under-tightening (which causes loose connections).
Shielded Cable: Twisted-pair shielded cable (e.g., Emerson 5A26141) for field wiring, minimizing electromagnetic interference (EMI) and ensuring signal integrity.
4. Installation Guidelines
4.1 Pre-Installation Checks
Power Safety: Ensure the Ovation I/O cabinet is powered off and locked out/tagged out (LOTO) to prevent electrical shock during installation.
Component Inspection: Check the 1C31125G01 for physical damage (e.g., cracked housing, bent pins) and verify the part number matches the project’s bill of materials.
Base Unit Preparation: Confirm the Ovation base unit (e.g., 1B30035H01) is securely mounted on the DIN rail and that the terminal block is clean and free of debris.
4.2 Step-by-Step Installation
Install the Personality Module: Insert the 1C31125G01 into the dedicated Personality Module cavity on the base unit. Align the module’s pins with the base unit’s connector and press firmly until it seats fully—no tools are required for this step.
Install the Electronics Module: Insert the 1C31122G01 Electronics Module on top of the 1C31125G01, ensuring the module’s blue latches snap into place to secure both modules to the base unit. Gently tug on the Electronics Module to confirm it is locked.
Prepare Field Wiring: Strip 6–8 mm of insulation from the ends of field device wires (18–22 AWG) and crimp ferrules if using stranded wire. Label wires with their corresponding channel (e.g., “DO1+,” “DO1-”) to avoid confusion.
Terminate Field Wires: Connect field wires to the base unit’s terminal block, following the labeling on the 1C31125G01’s side panel:
For direct field devices: Connect the device’s positive lead to the “+” terminal and negative lead to the “-” terminal of the corresponding channel.
For relay panels: Use the 25-pin D-connector cable (e.g., 5A26148 for G2R panels, 5A26149 for KUEP panels) to connect the base unit to the relay panel, ensuring alignment with the panel’s “Digital Input” port.
For shielding: Connect the cable shield to the “SH” terminal on the base unit (non-CE Mark systems) or ground the shield at the cabinet entry point (CE Mark systems, per Emerson’s “Cable Guidelines”).
Verify Wiring: Visually inspect all connections to ensure no wires are crossed, exposed, or connected to incorrect terminals. Use a multimeter to check for continuity between the module and field devices (with power off).
Power On & Test: Restore power to the I/O cabinet, then check the module’s diagnostic LEDs (P = power, C = communication, E = external fault, I = internal fault) to confirm no errors. Use the Ovation I/O Builder tool to send test signals to each channel and verify field device response.
4.3 Wiring Best Practices
Signal Segregation: Route digital output wires separately from analog signal wires and high-voltage power wires (e.g., 120/240 VAC) to minimize EMI. Maintain a minimum spacing of 10 cm between digital output wiring and other signal types.
Grounding: For CE Mark systems, ground all cable shields at the cabinet entry point using Emerson’s recommended grounding hardware—do not ground shields at both the module and field device (avoids ground loops).
Cable Length: Keep field wiring lengths under 100 meters for 0–60 VDC signals to prevent voltage drop. For longer distances, use larger-gauge wire (e.g., 18 AWG instead of 22 AWG) to reduce resistance.
5. Maintenance & Troubleshooting
5.1 Routine Maintenance
Monthly Checks: Visually inspect the 1C31125G01 for loose wiring, damaged terminals, or debris. Verify the module’s fuse is intact (no discoloration or breakage) and that diagnostic LEDs show no fault conditions (E and I LEDs should be off).
Quarterly Checks: Clean the module and surrounding base unit with a dry, lint-free cloth to remove dust—avoid compressed air, which can push debris into connectors. Re-tighten terminal block screws to 0.8 N·m if loose.
Annual Checks: Test the fuse for continuity using a multimeter. If the fuse is blown, replace it with an exact 1.25A, 250V fast-acting replacement (EX06098). Inspect surge protection components for signs of damage (e.g., bulging, charring) and replace the module if components are faulty.
5.2 Troubleshooting Common Issues
External Fault LED (E) Lit:
Check the auxiliary power supply (PS+, PS-) for voltage (should be 24–60 VDC). If no voltage is present, verify the base unit’s power connection.
Inspect the 1C31125G01’s fuse—replace if blown.
For relay panel setups, check the panel’s power supply and cable connection (e.g., 5A26148) for damage or loose pins.
No Output to Field Device:
Confirm the 1C31122G01 Electronics Module is properly seated and the “C” (communication) LED is lit—re-seat the module if communication is lost.
Use a multimeter to measure voltage at the terminal block’s “+” and “-” terminals for the affected channel (should be 0–60 VDC when the output is active). If no voltage is present, the Electronics Module may need replacement.
Check the field device for internal faults (e.g., open solenoid coil) and replace if necessary.
EMI-Related Signal Noise:
Ensure field wiring uses shielded twisted-pair cable—replace unshielded cable if present.
Relocate digital output wiring away from high-EMI sources (e.g., motor starters, variable-frequency drives) or add EMI filters to the field device power supply.
6. Application Use Cases
The 1C31125G01 is a critical component for Ovation Digital Output Modules in industrial applications requiring reliable 0–60 VDC switching:
Power Generation: Controls turbine auxiliary systems (e.g., lubrication pump contactors, valve solenoids) and indicator lamps in coal, gas, or nuclear power plants.
Petrochemical Processing: Interfaces with relay panels to control process valves (e.g., isolation valves, control valves) and heater elements in refineries or chemical plants.
Manufacturing: Switches conveyor motor starters, robotic arm solenoids, and packaging machine actuators in automotive or food processing facilities.
Water & Wastewater: Operates pump station contactors and valve gates in municipal water treatment systems, ensuring reliable flow control.
