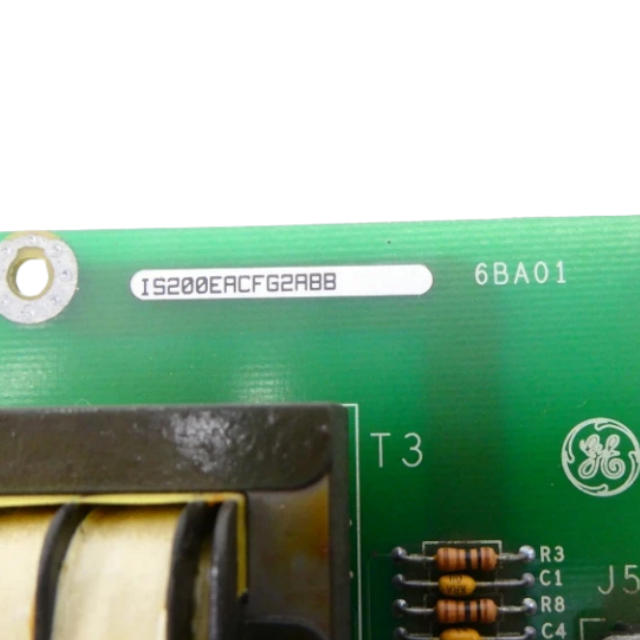

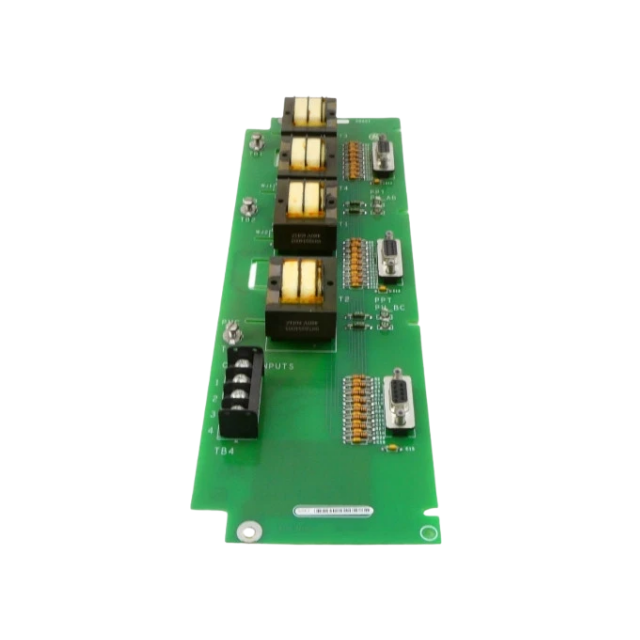

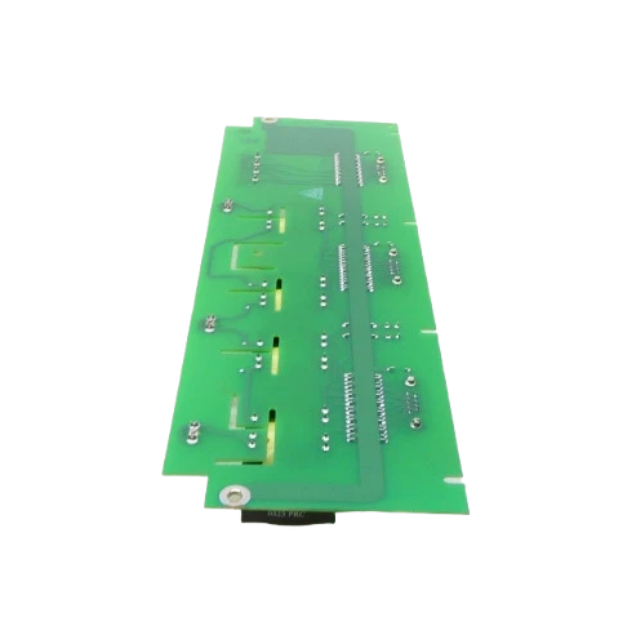

GE IS200EACFG2ABB Exciter AC Feedback board

Technical Deep Dive: What Makes the IS200EACFG2ABB Stand Out?

1. High-Precision AC Signal Acquisition & Processing

At its core, the IS200EACFG2ABB is optimized to capture and refine critical excitation system signals with industry-leading accuracy:

• Broad AC Signal Range Support: Measures AC current (0–500A via current transformers, CT) and AC voltage (0–1000V via voltage transformers, VT) — covering the full spectrum of industrial excitation system requirements, from small backup generators (50kVA) to large power plant generators (1000MVA).

• Ultra-High Sampling & Resolution: Features 16-bit analog-to-digital converters (ADCs) with a 5kHz sampling rate—capturing fast-changing AC signals (e.g., transient excitation current during generator startup) and ensuring signal detail is not lost. Measurement accuracy reaches ±0.1% of full scale, outperforming generic boards (±0.5% accuracy) that can’t meet excitation system precision demands.

• Adaptive Digital Filtering: Integrates GE’s proprietary 5th-order Butterworth filtering algorithm, which suppresses high-frequency noise (from nearby transformers, power cables) and 50/60Hz power line hum without delaying signal transmission—critical for real-time excitation PID (Proportional-Integral-Derivative) regulation.

2. Seamless Integration with Excitation & Mark VIe Ecosystems

The board is not just a signal collector—it’s designed to work in perfect synergy with GE’s excitation controllers and DCS:

• Dual Interface for Excitation Control: Connects directly to GE excitation controllers (e.g., EX2100, EX2100e) via GE’s proprietary Excitation Bus, and to Mark VIe DCS via VMEbus—enabling two-way data flow (feedback signals to control system, setpoints to excitation controller) with <1ms latency.

• Industrial Protocol Compatibility: Natively supports Modbus TCP and Ethernet/IP, allowing integration with third-party monitoring tools (e.g., Siemens SCADA, ABB Power Management Systems) for plant-wide data visualization.

• Plug-and-Play Configuration: Auto-detected by GE Mark VIe Configuration Studio and Excitation Control Software, with pre-loaded signal calibration templates for common generator ratings (e.g., 300MW, 600MW). This cuts setup time from 8 hours (for generic boards) to 1 hour—accelerating excitation system commissioning.

3. Industrial-Grade Durability for High-Voltage Environments

Excitation systems are often installed near high-voltage equipment (e.g., generator stator windings, step-up transformers), making durability and EMI resistance critical:

• Wide Operating Temperature Range: Operates reliably from -40°C to 70°C (-40°F to 158°F), suitable for unconditioned generator rooms or outdoor excitation cabinets.

• Enhanced EMI/RFI Protection: Features 3kV AC channel-to-ground isolation and a Faraday cage shield around signal acquisition circuits—blocking electromagnetic interference from high-voltage cables and ensuring signal integrity even in electrically noisy power plants.

• Conformal-Coated PCB & Rugged Housing: The circuit board is coated with IPC-CC-830B Class 3 conformal material (resists oil, dust, and humidity), while the aluminum alloy housing withstands 5g vibration (5–500Hz, per IEC 61131-2) and 30g shock—preventing damage during generator maintenance or system transport.

4. Diagnostics & Maintenance: Minimizing Excitation System Downtime

The IS200EACFG2ABB includes proactive diagnostic features to keep excitation systems running without interruption:

• Real-Time Fault Detection: Automatically identifies signal anomalies such as CT/VT disconnection, current imbalance, or signal loss. Alerts are sent to the Mark VIe HMI and excitation controller via color-coded LEDs (green = normal, amber = signal degradation, red = fault) for instant troubleshooting.

• Signal Health Monitoring: Logs key metrics (signal amplitude, harmonic distortion, sampling error) and transmits data to GE Proficy Historian—enabling technicians to track long-term signal stability and predict potential issues (e.g., CT degradation) before they cause system trips.

• Hot-Swappable Design: In redundant excitation system configurations, the board can be replaced without shutting down the generator or excitation controller—reducing maintenance downtime from hours to <20 minutes, critical for 24/7 power generation.
