GE IS200EISBH1A is an Exciter ISBus Board for Mark VIe systems, acting as a communication bridge between exciter control modules and the ISBus network. It enables stable data transmission, supports real-time control signal exchange, has isolation and diagnostics, operates at -40°C to +70°C, meets UL/CE, ensuring reliable exciter system communication.

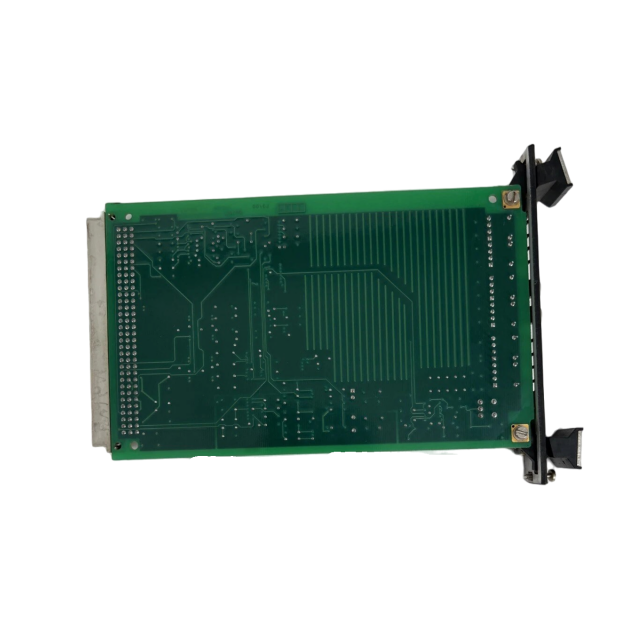

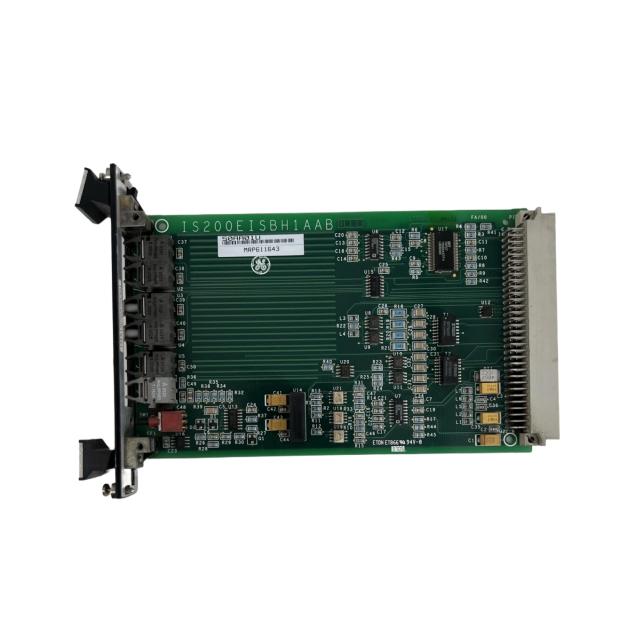

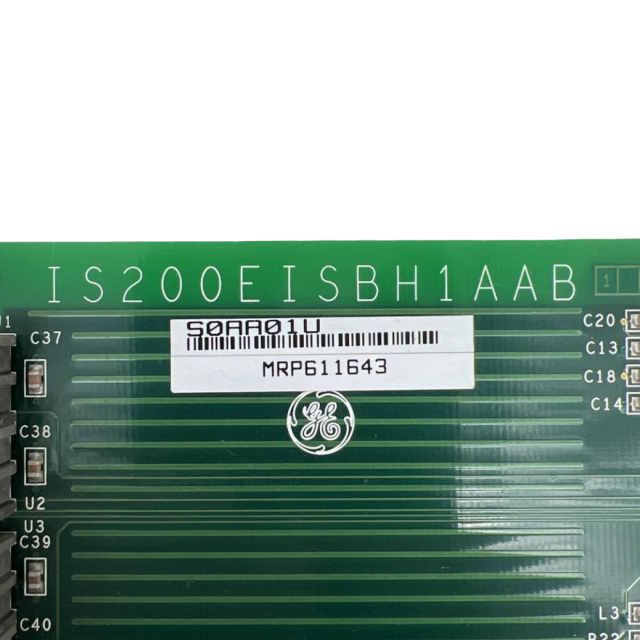

GE IS200EISBH1A Exciter ISBus Board: Comprehensive Product Overview
The GE IS200EISBH1A is a mission-critical Exciter ISBus (EISB) Communication Board engineered as
the central data exchange hub of GE’s EX2100 excitation control system, responsible for seamless
signal transmission and controller coordination in generator/motor excitation systems. Its core role is
to act as a "neural switchboard"—receiving high-speed fiber-optic feedback signals (e.g., generator
field current/voltage from EDCF feedback boards) and relaying them to the DSPX master controller,
while enabling bidirectional communication between the DSPX, human-machine interface (HMI)
tools, and protective modules like ground detectors .
Designed as a compact single-slot, 3U form factor module, it mounts strategically in the control rack
beneath the DSPX controller for optimized connectivity . A key advantage is its support for GE’s
proprietary ISBus interface, which facilitates real-time data transfer among the system’s M1 (Master
1), M2 (Master 2), and C (Controller) units—critical for redundant excitation setups that demand zero
communication latency . It also integrates an RS-232C drive for tool/keypad communication (data
rates: 1200–38.4 KBaud) and front-panel fiber-optic connectors to accept signals from
generator/exciter fields, ensuring immunity to electromagnetic interference (EMI) in high-voltage
industrial environments . With no external LEDs or jumpers, it relies on system-level diagnostics to
monitor health, while its rugged construction (compatible with -20°C to 70°C operating temperatures)
ensures reliability in power plants, steel mills, and petrochemical facilities .
Detailed Specification Table
Category
Details
Core Function
Acts as the communication hub for EX2100 excitation systems; transmits fiber-optic feedback signals to DSPX controller, enables ISBus data exchange between M1/M2/C units, and facilitates RS-232C-based tool/keypad communication .
Mechanical Specifications
Single-slot, 3U form factor; dimensions optimized for EX2100 control racks (mounts beneath DSPX controller); front-panel fiber-optic connectors and recessed reset switch .
Electrical Parameters
Power supply: +24V DC (from system backplane); RS-232C data rate: 1200–38.4 KBaud; integrated signal conditioning for fiber-optic/serial interfaces .
Environmental Ratings
Operating temperature: -20°C to 70°C; EMI-resistant fiber-optic communication; designed for dust/moisture-tolerant industrial environments .
Communication & Control
GE proprietary ISBus interface (for M1/M2/C controller data transfer); fiber-optic input (accepts generator/exciter current/voltage from EDCF boards); RS-232C drive (tool/keypad ports) .
System Compatibility
GE EX2100 excitation control system; DSPX master controller; EDCF feedback boards; ground detection modules (e.g., IS200EGDMH1A); simplex/redundant excitation configurations .
Installation & Maintenance
Hot-swappable in redundant setups; recessed front-panel reset switch; no external jumpers/LEDs (diagnostics via system HMI) .
Key Applications
Thermal/hydropower generator excitation control; industrial motor excitation systems; petrochemical captive power plants; grid stabilization systems .
Compliance & Documentation
Aligns with GE EX2100 series standards; technical details referenced in GE’s excitation system maintenance manuals .
Our Advantages
1.100% Origin goods
2.In stock
3.1-year warranty
4.Timely delivery (1-3working days)
5.Competitive price.
Great benefits
1. lower your support costs
2. Provide on-going availability of automation replacement parts
3. Large number of inventory
4. Support door-to-door inspection
Service
Q1.Quality Guarantee
we give 1 year guarantee to ensure your business.
Q2.MOQ
1 piece
Q3.Payment terms
T/T
Q4.Currency
USD,RMB,EUR,GBP
Q5.Package
Shipment port: we export from Xiamen
Q6.Customer Service
24 hours by email
FAQs
What is the Exciter ISBus Board?
The Exciter ISBus Board (EISB) is a specialized communication board used with the M1, M2, and C controllers. It facilitates the reception and transmission of fiber-optic feedback signals and communicates between the DSPX controller and various ports using RS-232C.
What does the EISB board do?
The EISB board handles communication for exciter systems by receiving and transmitting fiber-optic feedback signals, sending data to the DSPX controller, and facilitating communication between the DSPX and tool/keypad ports. It also manages signals for redundant exciters and connects to the Ground Detection module.
Where is the EISB board located?
The EISB board is a single-slot, 3U-high module located in the control rack beneath the DSPX controller.
