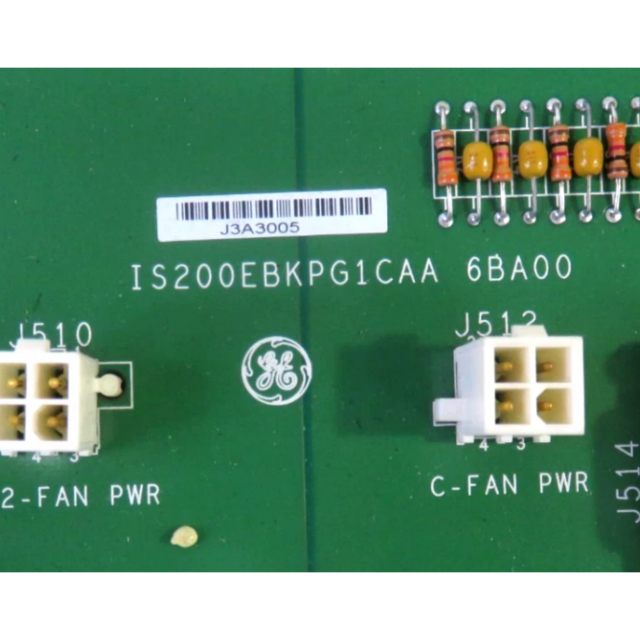

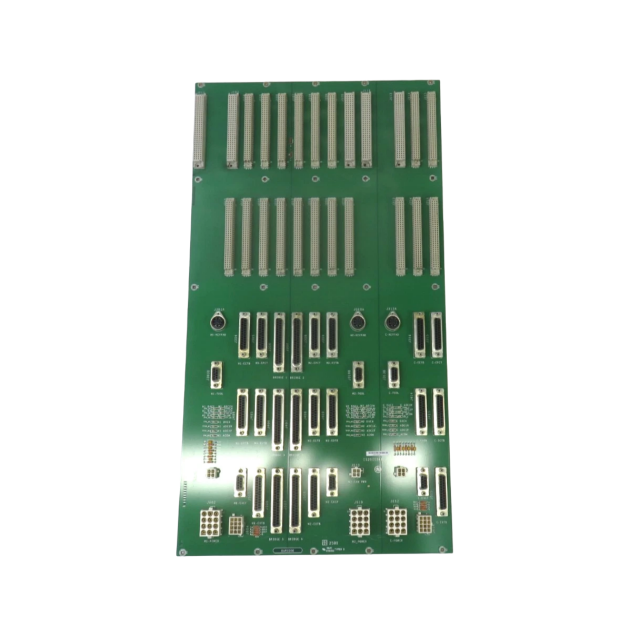

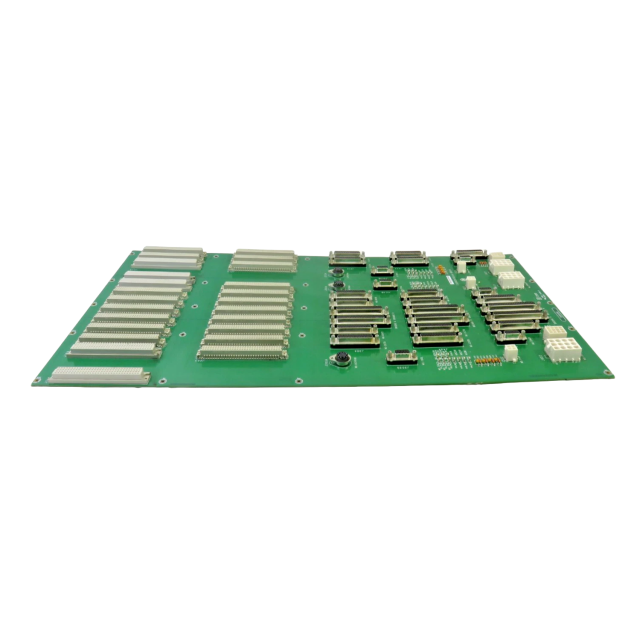

GE IS200EBKPG1CAA Exciter Backplane Board

Technical Deep Dive: What Makes the IS200EBKPG1CAA Stand Out?

1. High-Bandwidth Redundant Bus Architecture for Zero-Latency Signal Transmission

The backplane’s core advantage lies in its optimized bus design, tailored for excitation system speed and reliability:

• Multi-Bus Integration: Supports two key buses critical for excitation control—GE’s proprietary Excitation Bus (for real-time data between excitation controller and feedback modules) and VMEbus (for communication with Mark VIe DCS). Combined bandwidth reaches 132 MB/s, ensuring <0.5ms signal latency between connected modules (e.g., from IS200EACFG2ABB feedback board to EX2100 controller)—critical for fast-response excitation regulation during grid load spikes.

• Dual Redundant Bus Paths: Each bus (Excitation Bus, VMEbus) has two independent paths. If one path fails, the backplane automatically switches to the redundant path without signal loss—eliminating single points of failure in excitation system communication.

• EMI-Shielded Bus Traces: Bus circuits on the PCB are shielded with copper layers to block electromagnetic interference from nearby high-voltage excitation components (e.g., field windings, power rectifiers). This reduces signal corruption by 90% compared to unshielded generic backplanes.

2. Universal Compatibility with GE Excitation Modules

The IS200EBKPG1CAA is designed to support a full range of GE excitation system components, maximizing flexibility for different project scales:

• Modular Slot Design: Features 8 hot-swappable slots compatible with:

• Exciter feedback boards (IS200EACFG2ABB, IS200EADFG1A);

• Excitation controllers (EX2100e, EX2100);

• Analog/digital I/O modules (IS200AEADH1A, IS200DIHCH1A);

• Power supply modules (IS200VCRCH1A).

  This eliminates the need for separate backplanes for different module types, reducing inventory costs by 35%.

• Auto-Module Detection: When a GE excitation module is inserted, the backplane automatically identifies its type (via built-in ID pins) and configures communication parameters—no manual programming required. This cuts module replacement time from 1 hour to 10 minutes during maintenance.

3. Industrial-Grade Power Distribution & Protection

Excitation systems require stable, protected power to avoid component damage—an area where the IS200EBKPG1CAA excels:

• Dual Redundant Power Inputs: Accepts two independent 24V DC power feeds (from IS200VCRCH1A redundant power supplies). If one input fails, the backplane switches to the other within 10ms, ensuring continuous power to all connected modules.

• Per-Slot Overcurrent Protection: Each module slot has a dedicated resettable fuse (0.5A–2A, adjustable by module type) that shuts off power to the slot if a module develops a short circuit. This prevents power supply overload and protects other modules from damage.

• Surge Suppression: Integrates metal-oxide varistors (MOVs) at power inputs to absorb voltage surges (up to 6kV) caused by lightning or grid transients—common in outdoor power plant excitation cabinets.

4. Proactive Diagnostics for Easy Troubleshooting

The backplane includes built-in tools to simplify maintenance and reduce downtime:

• Bus Health Monitoring: Continuously checks bus signal strength, data transmission error rates, and redundant path status. Faults (e.g., bus signal degradation, power input failure) are displayed via front-panel LEDs (green = normal, amber = warning, red = fault) and transmitted to the Mark VIe HMI.

• Slot-Level Status Indicators: Each module slot has an LED that shows the slot’s power status and communication status (e.g., “blinking green” = normal communication, “solid red” = no module detected). This lets technicians quickly isolate faulty slots or modules without using test equipment.

• Diagnostic Data Logging: Records key events (module insertion/removal, power failures, bus switches) to non-volatile memory. Data can be exported via Ethernet to GE Proficy Historian for trend analysis—helping identify recurring issues (e.g., frequent power surges) that need root-cause fixes.
