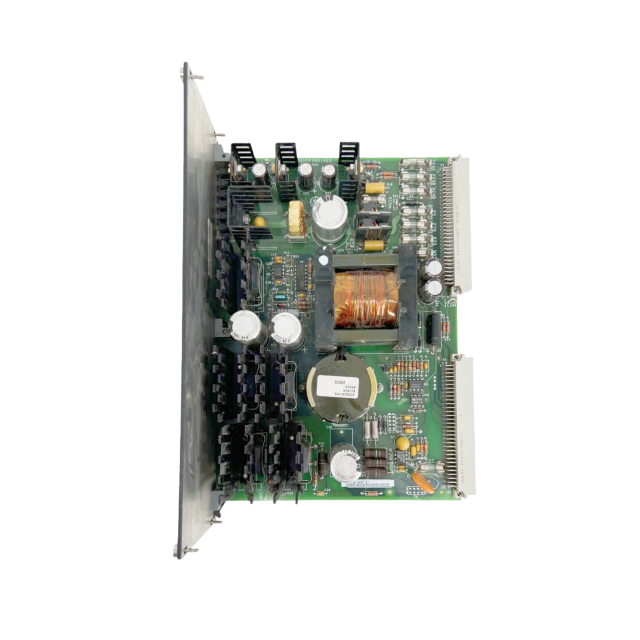

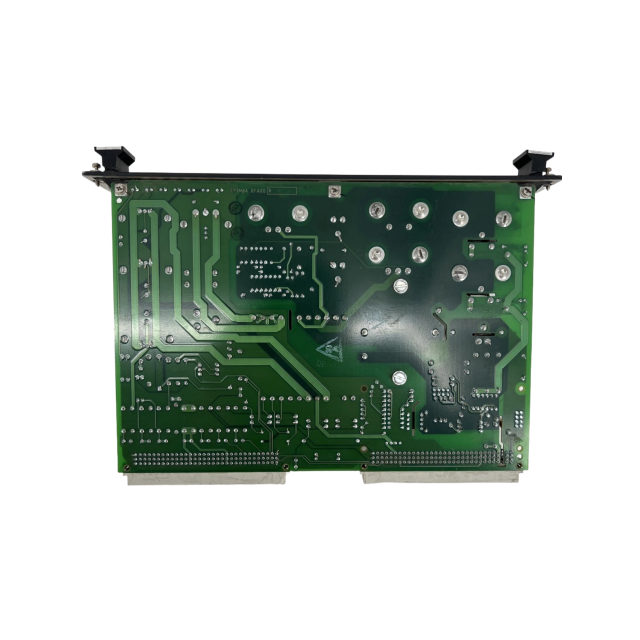

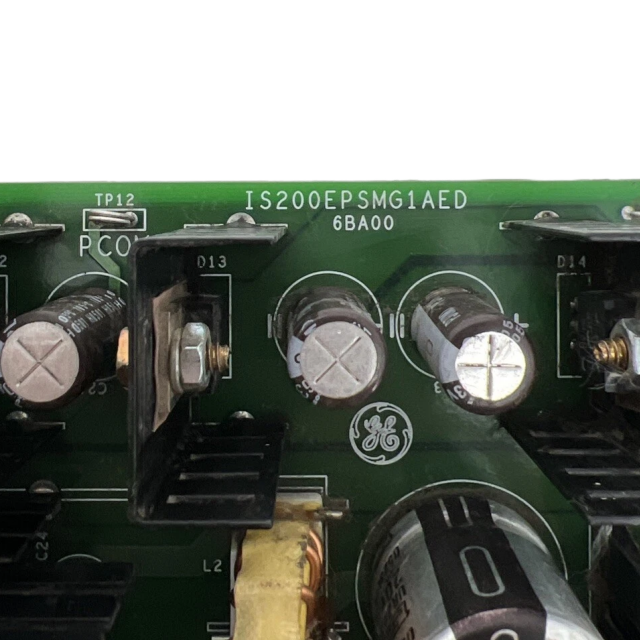

The GE IS200EPSMG1AED Exciter Power Supply Module serves as the critical power hub for GE’s
EX2100 excitation control system, primarily functioning to convert unregulated AC input power
(120V/240V AC ±10%, 50/60Hz, with auto-switching to adapt to global grids) into stable, isolated DC
power—delivering two dedicated output channels (24V DC ±0.5% at 10A max for powering I/O
modules like IS200EMIOH1A and ground detectors such as IS200EGDMH1A, and 15V DC ±0.5% at 5A
max for sensitive feedback boards including IS200EDCFG1ADC). It integrates robust protection
mechanisms, including 3kV AC input-output isolation to block EMI/RFI interference from high-voltage
generator components, resettable overcurrent fuses (0.5–10A) to prevent damage from short circuits,
and auto-recovery over-temperature shutdown (triggered at 85°C) to avoid burnout during high-load
operation. Additionally, the module supports N+1 redundancy with <10ms auto-failover via the EISB
(Exciter Internal Serial Bus), enabling seamless power transition to a backup unit in mission-critical
setups to eliminate excitation system downtime. It also facilitates real-time diagnostics by
transmitting output voltage, current, and internal temperature data to the EX2100’s DSPX controller,
supporting predictive maintenance via HMI tools like GE CIMPLICITY. Built with IPC-CC-830B Class 3
conformal coating, it operates reliably in harsh industrial environments (-40°C to 70°C, 5%–95% non-
condensing humidity), ensuring consistent performance in power plants, offshore wind farms, and
steel mills while maintaining full compatibility with the EX2100 ecosystem for plug-and-play
integration.
Technical Specifications
| Parameter Category | Details |
| Input Power | Voltage: 120V AC ±10% / 240V AC ±10% (auto-switching, no manual jumper required); Frequency: 50Hz / 60Hz (auto-adaptive) |
| Output Power | Channel 1: 24V DC ±0.5% (maximum current: 10A, suitable for I/O modules and ground detectors); Channel 2: 15V DC ±0.5% (maximum current: 5A, designed for sensitive feedback boards) |
| Isolation Performance | Input-to-output isolation: 3kV AC (prevents EMI/RFI interference); Channel-to-channel isolation: 2kV AC (avoids ground loops between channels) |
| Environmental Ratings | Operating temperature: -40°C to 70°C (-40°F to 158°F); Storage temperature: -55°C to 85°C (-67°F to 185°F); Relative humidity: 5%–95% (non-condensing, no moisture-induced damage) |
| Mechanical Specifications | Form factor: Single-slot, 3U Eurocard (compatible with EX2100 standard control racks); Weight: 1.2 kg (2.65 lbs); Mounting: Front-panel screw fixation (torque requirement: 2.5 Nm) |
| Protection Features | Overcurrent protection: 0.5A–10A resettable fuses (per output channel, no need for fuse replacement); Over-temperature protection: Auto-shutdown at 85°C (auto-recovery after cooling); Surge protection: MOV-based (20kA surge handling for input side) |
| Communication Interface | Protocol: EISB (Exciter Internal Serial Bus); Function: Transmits real-time data (output voltage, current, internal temperature) to EX2100 DSPX controller; Supports redundancy sync (<10ms failover) |
| Certifications & Compliance | Safety certifications: UL 61010-1, IEC 61800-5-1, CE; Coating standard: IPC-CC-830B Class 3 (conformal coating, resists salt spray, dust, and oil) |
| Compatibility | Ecosystem: Exclusive to GE EX2100 excitation control system; Compatible modules: IS200EMIOH1A (I/O), IS200EDCFG1ADC (feedback), IS200EGDMH1A (ground detector), IS200EBKPG1CAA (backplane) |
