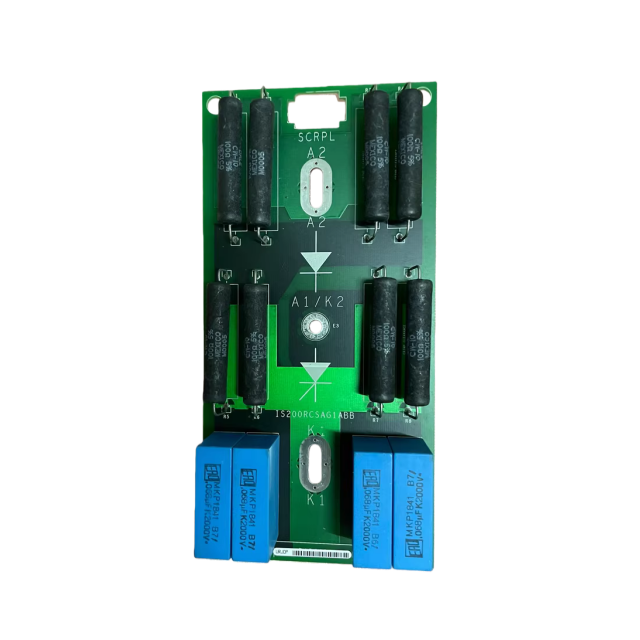

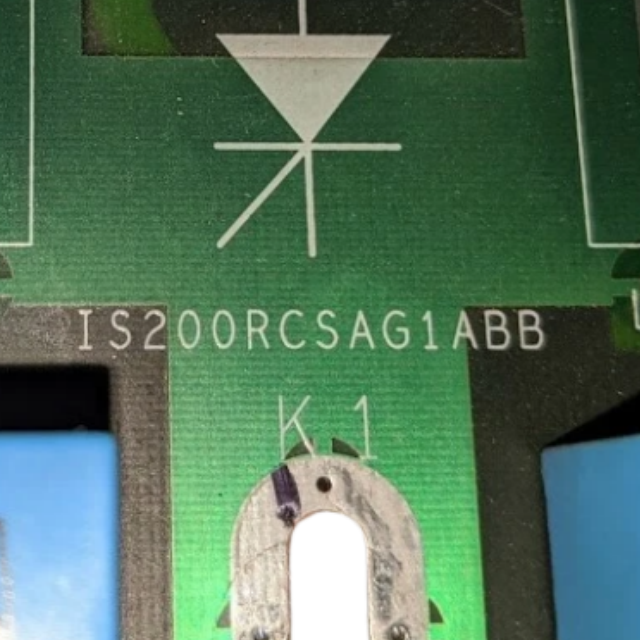

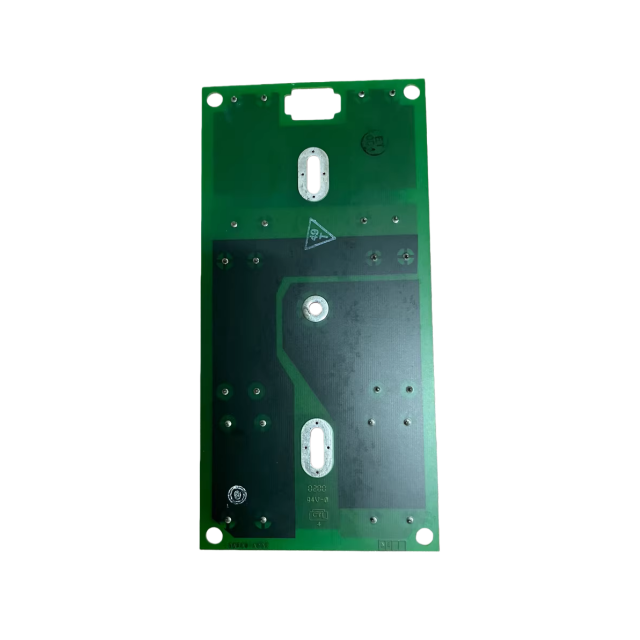

GE IS200RCSAG1ABB RC Snubber Assembly

1. Basic Information

• Brand: GE

• Model:IS200RCSAG1ABB

• Type: RC (Resistor-Capacitor) Snubber Assembly

• Primary Application:Voltage transient suppression and EMI (Electromagnetic Interference)

  reduction in GE Mark VIe/EX2100 control system power circuits, protecting semiconductors

  (thyristors, IGBTs) and power modules

2. Electrical Specifications

• Resistor (R) Parameters:

• Resistance Value: 100Ω ±5% (tolerance)

• Power Rating: 2W (continuous operating power)

• Temperature Coefficient: ±100 ppm/°C (stable resistance across temperature changes)

• Material: Metal Oxide Film (high heat resistance)

• Capacitor (C) Parameters:

• Capacitance Value: 0.1μF ±10% (tolerance)

• Voltage Rating: 1000V DC (maximum continuous operating voltage)

• Dielectric Material: Polypropylene (low dielectric loss, high temperature stability)

• Insulation Resistance: ≥100MΩ (at 500V DC, 25°C)

• Operating Voltage Range: 24V DC – 800V DC (compatible with Mark VIe/EX2100 power circuits)

• Transient Suppression Performance: Clamps voltage spikes to ≤120% of rated circuit voltage (response time <1μs)

3. Mechanical Specifications

• Form Factor: Compact modular design

• Dimensions: 50mm (Length) × 30mm (Width) × 20mm (Height)

• Mounting Type: Screw-fixed (M3 threaded mounting holes, 2-hole configuration)

• Connectors: 2× crimp terminals (compatible with 14–16 AWG stranded wire)

• Weight: 35g (net weight, excluding wiring)

• Housing Material: Flame-retardant ABS plastic (UL 94 V-0 rating)

4. Environmental Ratings

• Operating Temperature: -40°C to 85°C (-40°F to 185°F)

• Storage Temperature: -55°C to 105°C (-67°F to 221°F)

• Relative Humidity: 5%–95% (non-condensing, no fogging)

• Vibration Resistance: IEC 60068-2-6 (5g acceleration, 10–500Hz, 3 axes)

• Shock Resistance: IEC 60068-2-27 (30g peak, 11ms duration)

• Protection Coating: Epoxy resin coating (resists dust, oil mist, and mild industrial chemicals)

5.Compatibility

• Compatible GE Systems: GE Mark VIe Turbine Control Systems, GE EX2100 Excitation Control Systems

• Compatible Components: GE power modules (e.g., IS200RAPAG1BBA), thyristor stacks, IGBT inverters, and power distribution boards in control racks

6.Safety & Compliance

• Flame Retardancy: UL 94 V-0 (prevents flame spread)

• EMI Compliance: EN 55011 Class A (meets industrial EMI emission standards)

• Dielectric Strength: 2500V AC for 1 minute (between terminals and housing, no breakdown)

• RoHS Compliance: RoHS 3 (2015/863/EU) – free of lead, mercury, and other restricted substances

• Service Life: 10,000 hours (at rated voltage and temperature)
