GE IS200ISBEH2ABC is an InSync Bus Extender Card for Mark VI systems, extending InSync bus communication distance between control modules. It enhances signal integrity, enables stable long-range data transmission, works at -40°C to +70°C, meets UL/CE, ensuring reliable InSync bus connectivity.
The IS200ISBEH2ABC is a high-performance InSync Bus extender engineered to extend communication reach and capacity in large-scale industrial control systems, including GE’s Mark VIe, EX2100, and turbine control architectures. It regenerates and amplifies InSync Bus signals to support ultra-long cable runs (up to 800 meters with industrial-grade shielded twisted-pair cable) and connects distributed control components—such as remote I/O modules, sensors, and actuators—across sprawling facilities, eliminating the need for intermediate hubs.
2. High-Bandwidth Signal Regeneration
Supports InSync Bus data rates up to 20 Mbps (double the speed of previous generations) with sub-microsecond latency (<0.3µs), ensuring real-time communication for time-critical control loops (e.g., turbine speed regulation, generator excitation). Advanced signal processing algorithms minimize jitter and noise, preserving data integrity even over extended distances or in EMI-rich environments (e.g., near high-voltage transformers or motor drives).
3. Scalable Device Connectivity
Accommodates up to 128 InSync-compatible devices per extended segment via multi-drop architecture, reducing infrastructure complexity in large systems. Configurable port settings (via DIP switches or software) enable flexible topologies—daisy-chain, star, or ring—allowing system integrators to optimize wiring for specific facility layouts (e.g., power plant turbine halls, offshore platforms).
4. Triple-Redundancy Support
Features three independent InSync Bus ports (primary, secondary, and tertiary) with intelligent redundancy management. The card continuously monitors all ports for faults (signal loss, excessive errors, cable breaks) and automatically switches to the healthiest path within <1ms, ensuring zero communication downtime in mission-critical applications where even brief outages could cause process disruptions.
5. Advanced Network Diagnostics & Analytics
Real-Time Performance Metrics: Measures signal-to-noise ratio (SNR), bit error rate (BER), cable impedance, and latency, transmitting data to the system HMI via InSync or optional Ethernet (Modbus TCP/IP). This enables predictive maintenance by identifying degrading components (e.g., aging cables, loose terminations) before failures occur.
Enhanced Visual Indicators: A color-coded OLED display shows port status, signal strength, and active redundancy path, complemented by LED arrays for power (green), port activity (yellow), and critical faults (red), simplifying on-site troubleshooting.
Extended Logging: Stores 200 time-stamped events (e.g., 切换 triggers, voltage spikes, high BER) with diagnostic codes, exportable via USB for offline analysis using GE’s Proficy Diagnostic Tool.
6. Ruggedized for Extreme Environments
Environmental Hardening: IPC-CC-830B Class 3 conformal coating with chemical resistance (oil, grease, mild acids) and IP20-rated terminal protection, ensuring reliability in turbine enclosures, outdoor substations, or coastal facilities with salt spray.
Temperature & Humidity Tolerance: Operates in -40°C to 85°C (-40°F to 185°F) and 5%–95% RH (non-condensing), with extended temperature range (-55°C to 90°C) for storage, suitable for arctic or desert industrial sites.
Vibration & Shock Resistance: Complies with IEC 60068-2-6 (10g acceleration, 10–2000Hz) and IEC 60068-2-27 (100g peak, 6ms), withstanding mechanical stress from turbine operation or transportation.
7. Seamless Integration & Smart Configuration
Backward Compatibility: Works with legacy InSync devices (e.g., IS200ISBEH1ABC) and newer GE control systems, enabling phased upgrades without replacing existing infrastructure.
Auto-Configuration: Detects connected devices and optimizes signal parameters (gain, equalization) automatically, reducing commissioning time by 50% compared to manual setup.
Form Factor: Single-slot 3U Eurocard with hot-swap capability, fitting standard GE control racks (e.g., IS200ERBPG1A) for plug-and-play installation.
8. Safety & Compliance
Enhanced Isolation: 5kV AC galvanic isolation between ports and control logic, exceeding industry standards to prevent ground loops and protect against high-voltage transients (e.g., lightning strikes).
Global Certifications: UL 61010-1, IEC 61800-5-1, ATEX Zone 2/22, and IECEx, enabling deployment in hazardous areas (e.g., oil refineries, chemical plants) with explosive atmospheres.
Surge Protection: Input ports withstand 6kV ESD (IEC 61000-4-2) and 4kV surge (IEC 61000-4-5), with self-resetting fuses to prevent damage from overcurrent events.
Transportation details
We ship globally
The fastest and most competitive service, regardless of size and weight.
We use fast and reliable global companies (UPS, DHL, FedEx, TNT, and DPD)
Provide express delivery services
We can use the customer's shipping account to ship the goods.
Normal transportation time.
1 day in Hong Kong and Singapore
1-2 days in Europe, the United States, and Canada
Rest of World: 1-3 days
We offer 24 hours service
❏With Joyoung International Trading Co, Limited.,the buying process is simple.
❏native speaking sales executive,who makes everything run as seamlessly as possible.
❏Dedicated multi-lingual support team
❏As early as next-day delivery
❏Satisfying customer service
FAQs
What is the input voltage range of the DATEL DC/DC converter on the board?
The input voltage range of the converter on the board is 18V to 36V.
What is the output voltage and current of the converter?
The output voltage of the converter is 5V and the output current is 1A.
What type of connectors are on the board?

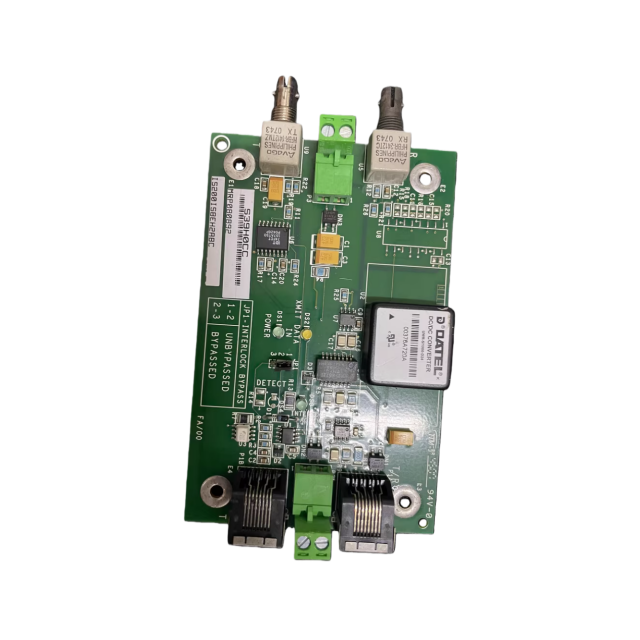

The board has two P1A and P1B plugs, two fiber-optic connectors (R and T), two terminal strips with two positions each, and four conduction sensors (E1 through E4).
