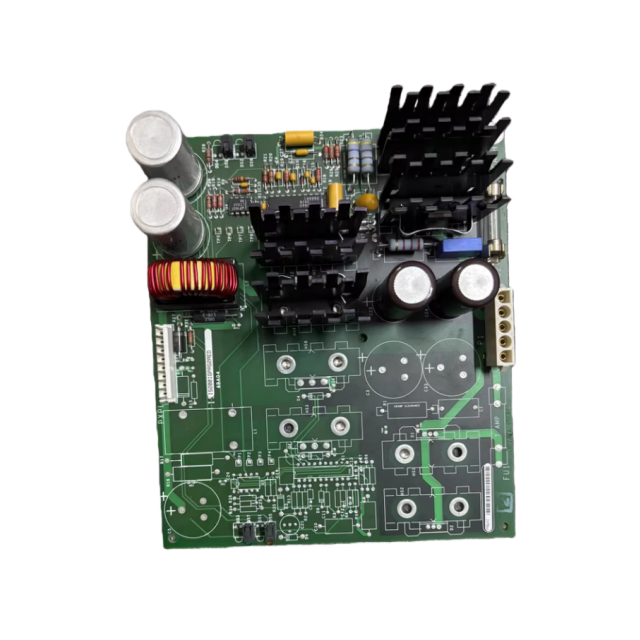

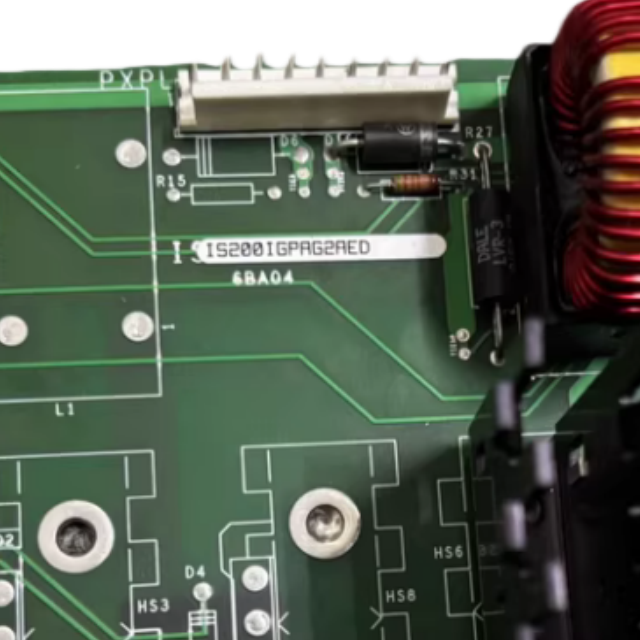

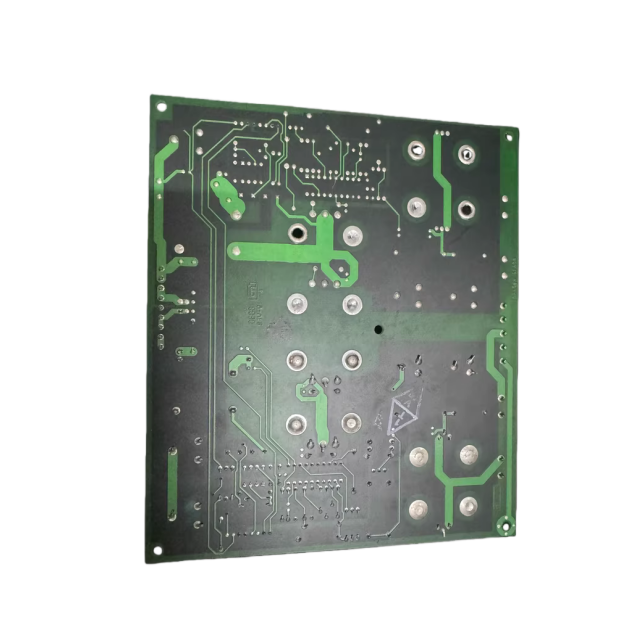

GE IS200IGPAG2AED is a Gate Drive Power Supply Board for Mark VIe systems, supplying stable power to gate drive circuits of exciter power components (e.g., IGBTs). It has overload/short-circuit protection, electrical isolation, fault diagnostics, operates at -40°C to +70°C, meets UL/CE, ensuring reliable gate drive power for exciter control.
The IS200IGPAG2AED is engineered to deliver highly regulated, isolated DC power specifically optimized for gate drive circuits in power electronics (e.g., IGBTs, SCRs) within turbine and excitation control systems. It converts input power (typically 24V DC from the system backplane) into multiple isolated output channels (e.g., ±15V DC, +20V DC) with tight voltage regulation (±0.5%), ensuring consistent switching performance of power semiconductors—critical for preventing voltage spikes or misfiring in high-current circuits.
2. High-Isolation Design
Incorporates robust galvanic isolation (≥5kV AC) between input and output channels, as well as between individual output channels. This isolation eliminates ground loops, blocks electromagnetic interference (EMI) from high-voltage power stages, and protects sensitive control logic from voltage transients—essential for reliable operation in harsh industrial environments with high noise levels (e.g., turbine enclosures, power converter cabinets).
3. Multi-Channel Output Flexibility
Features multiple independent output channels (typically 4–6) to power parallel gate drives, allowing simultaneous operation of multiple IGBT/SCR modules in a converter assembly. Each channel provides stable current output (up to 2A per channel) to support gate drive requirements, with dedicated overcurrent protection to prevent damage from short circuits in individual gate circuits.
4. Fast Transient Response
Designed with low output impedance and high-speed regulation, enabling rapid response to dynamic load changes (e.g., during IGBT switching transitions). This minimizes voltage droop during high-current gate pulses, ensuring consistent turn-on/turn-off times for power semiconductors and reducing switching losses in the converter system.
5. Comprehensive Protection Mechanisms
Overcurrent Protection: Resettable fuses on each output channel limit current to safe levels during short circuits, preventing damage to the board or connected gate drives.
Overvoltage Clamping: Transient voltage suppressors (TVS diodes) protect outputs from voltage spikes caused by inductive kickback in gate drive circuits.
Thermal Shutdown: Built-in temperature sensors trigger automatic shutdown if the board exceeds 85°C, with auto-recovery once cooled to 70°C, preventing overheating in enclosed cabinets.
6. Ruggedized for Industrial Reliability
Conformal Coating: IPC-CC-830B Class 3 coating resists moisture, dust, and chemical contaminants, ensuring durability in turbine halls, outdoor substations, or environments with oil mist.
Wide Operating Temperature: Functions reliably in -40°C to 70°C (-40°F to 158°F), withstanding extreme temperature fluctuations common in power generation facilities.
Vibration Resistance: Complies with IEC 60068-2-6 (5g acceleration, 10–500Hz) to endure mechanical stress from turbine operation or nearby equipment.
7. Seamless System Integration
Backplane Compatibility: Fits 3U Eurocard slots in GE turbine/excitation control racks (e.g., EX2100), with plug-and-play connectivity to system backplanes (e.g., IS200ERBPG1A).
Diagnostic Signals: Provides discrete status outputs (e.g., "power good" signals) to the main controller, enabling real-time monitoring of supply health via the EISB (Exciter Internal Serial Bus).
LED Indicators: Front-panel LEDs for each output channel (green = normal, red = fault) and overall power status, facilitating quick visual troubleshooting.
8. Redundancy and Hot-Swap Support
Redundant Configuration: Compatible with 1:1 redundancy setups, allowing a standby board to automatically take over if the primary unit fails, ensuring uninterrupted gate drive power.
Hot-Swap Capability: Supports replacement without powering down the control system, minimizing downtime during maintenance or fault recovery in critical applications (e.g., generator excitation systems).
Transportation details
We ship globally
The fastest and most competitive service, regardless of size and weight.
We use fast and reliable global companies (UPS, DHL, FedEx, TNT, and DPD)
Provide express delivery services
We can use the customer's shipping account to ship the goods.
Normal transportation time.
1 day in Hong Kong and Singapore
1-2 days in Europe, the United States, and Canada
Rest of World: 1-3 days
We offer 24 hours service
❏With Joyoung International Trading Co, Limited.,the buying process is simple.
❏native speaking sales executive,who makes everything run as seamlessly as possible.
❏Dedicated multi-lingual support team
❏As early as next-day delivery
❏Satisfying customer service
FAQs
What is IS200IGPAG2AED?
It is a Gate Drive Power Supply Board developed by GE under the EX2100 series.
What power options does the exciter system offer?
It supports power from potential, compound, or auxiliary sources, allowing configurations with single or multiple bridges, warm backup bridges, and simplex or redundant controls.
How is power supplied to the exciter?
Power is drawn either from a power potential transformer connected to the generator terminals or from an excitation transformer linked to an auxiliary bus.
What are the key feedback mechanisms for the exciter?
Primary feedback sources include generator line current and stator output voltage. The exciter system adjusts DC voltage and current to control the exciter field based on this feedback.
