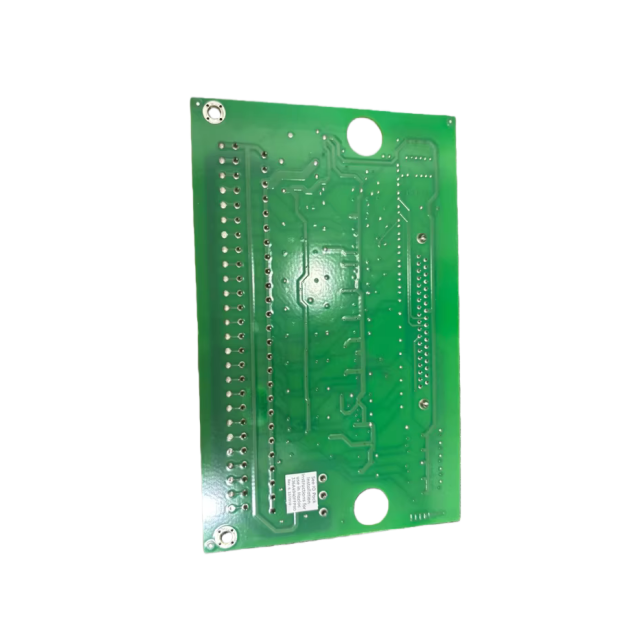

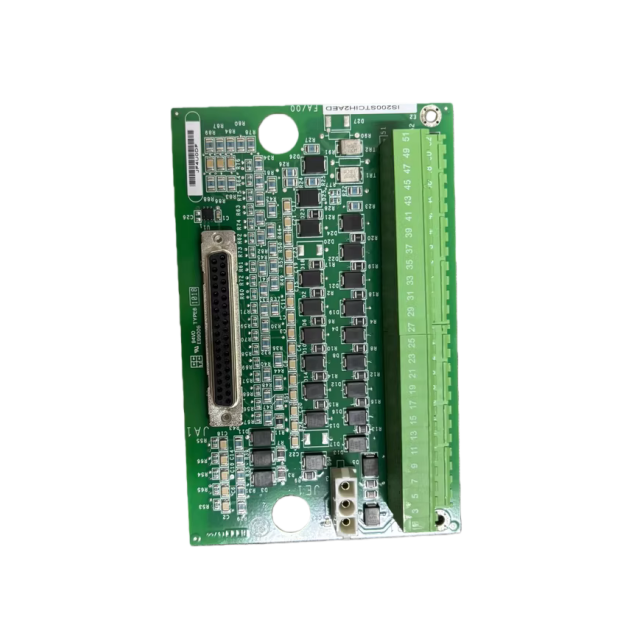

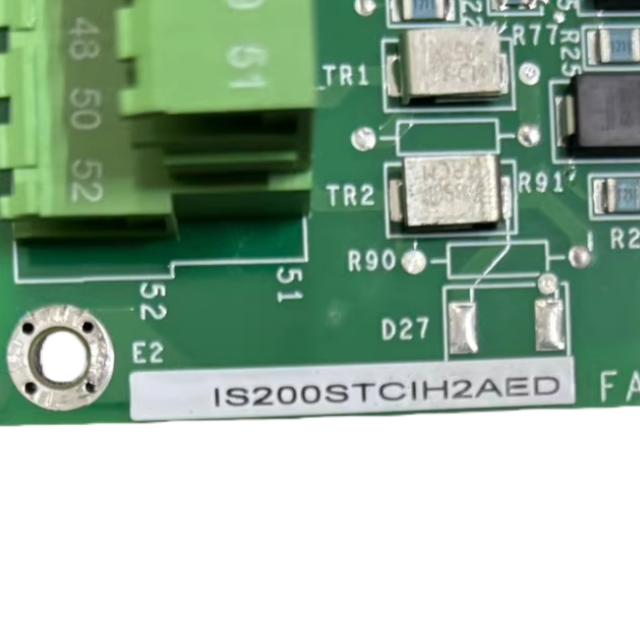

GE IS200STCIH2AED Terminal Board

1. Basic Information

• Brand: GE

• Model:IS200STCIH2AED

• Type: Industrial Terminal Board

• Primary Application:Secure signal termination, distribution, and wiring management for sensors, actuators, and control modules in GE Mark VIe/EX2100 control systems (power generation, industrial, marine scenarios)

2. Electrical Specifications

• Terminal Configuration: 40 spring-clamp terminals (compatible with 14–24 AWG stranded/solid wire, tool-free wiring)

• Rated Voltage: 400V AC/DC (max continuous operating voltage)

• Rated Current: 12A per terminal (25A per terminal bank)

• Insulation Resistance: ≥200MΩ (at 500V DC, 25°C, low signal loss)

• Dielectric Strength: 3000V AC for 1 minute (between terminals, no breakdown)

3. Mechanical & Environmental

• Form Factor: 3U Eurocard (100mm W × 150mm H × 22mm D)

• Mounting: Screw-fixed to Mark VIe/EX2100 control rack backplanes (compatible with standard GE rail spacing)

• Terminal Material: Phosphor bronze (tin-plated, anti-corrosion + low contact resistance)

• Housing Material: FR4 epoxy circuit board (UL 94 V-0 flame retardant)

• Operating Temperature: -40°C to 75°C

• Conformal Coating: IPC-CC-830B Class 3 (resistant to dust, moisture, oil mist)

4.Compatibility

• Compatible Systems: GE Mark VIe Turbine Control Systems, GE EX2100 Excitation Control Systems

• Compatible Devices: GE control modules (IS200SCNVG1ADC, IS200SRLYH2AAA),

  temperature/pressure sensors, solenoid valves, and motor actuators
