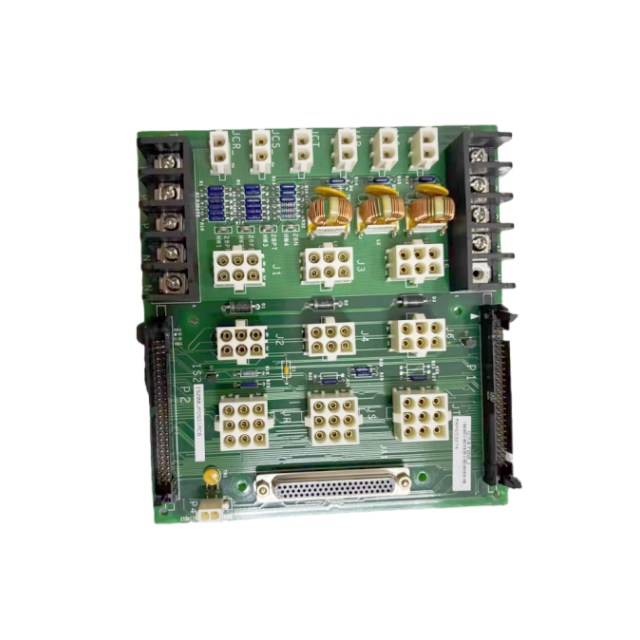

GE IS200JPDSG1ACB is a Power Distribution Board for Mark VIe systems, distributing stable power to multiple exciter or turbine control modules. It has overload/short-circuit protection, fault diagnostics, works at -40°C to +70°C, meets UL/CE, ensuring reliable power supply for control components.
1. Versatile DC Power Distribution for Control Systems
The IS200JPDSG1ACB is a multi-purpose power distribution module designed to deliver stable, centralized DC power to GE industrial control systems—including Mark VIe and EX2100 platforms. It accepts a single 24V DC input (compatible with system backplanes or external power supplies) and distributes it to up to 16 connected devices, such as I/O modules, communication cards, and auxiliary sensors. This versatile design eliminates the need for multiple standalone power supplies, streamlining cabinet layout and reducing wiring complexity.
2. Per-Output Circuit Protection
Equips each power output channel with independent overcurrent protection—using resettable polyfuses (PTC) instead of traditional one-time fuses. These fuses automatically limit current during short circuits or overloads (e.g., due to faulty connected devices) and self-recover once the fault is resolved. This feature protects sensitive control components from damage and eliminates the need for manual fuse replacement, minimizing maintenance downtime.
3. Modular and Scalable Design
Supports parallel stacking of multiple IS200JPDSG1ACB boards via shared power rails, enabling scalable power distribution for systems with growing device counts. The modular form factor (single-slot 3U Eurocard) fits standard GE control racks, allowing seamless integration with existing infrastructure without requiring rack redesign or additional space.
4. Secure, Vibration-Resistant Connectivity
Uses heavy-duty terminal blocks and locking connectors for power input/output, ensuring secure connections that withstand mechanical vibration (common in turbine halls, pumps, or industrial machinery). The connectors feature polarization to prevent reverse wiring, reducing the risk of damage from installation errors and enhancing long-term reliability.
5. Ruggedized for Industrial Environments
Environmental Protection: Coated with IPC-CC-830B Class 2 conformal coating, providing resistance to dust, moisture, and mild chemical contaminants (e.g., oil mist in manufacturing facilities).
Temperature Tolerance: Operates reliably in a wide range of -40°C to 70°C (-40°F to 158°F), adapting to extreme thermal conditions in indoor and outdoor control cabinets.
EMI Immunity: Complies with IEC 61000-6-2, resisting electromagnetic interference from nearby high-voltage equipment (e.g., motors, transformers) to maintain stable power delivery.
6. Intuitive Status Monitoring
Features front-panel LED indicators for real-time status tracking:
A green LED confirms overall input power presence.
Red LEDs for each output channel signal overcurrent/fault conditions.
This visual feedback allows operators to quickly identify issues (e.g., a tripped PTC fuse) and troubleshoot without specialized tools, speeding up fault resolution.
7. Safety and Compliance
Safety Certifications: Meets UL 61010-1 (industrial control safety) and IEC 61800-5-1 (drive system compatibility), ensuring adherence to global industrial safety standards.
Grounding and Isolation: Incorporates reinforced ground paths and 1kV AC isolation between input and output circuits, preventing ground loops and protecting control logic from voltage transients.
8. Low Power Consumption and Efficiency
Designed with high-efficiency voltage regulation (≥95% efficiency at full load), minimizing power loss and heat generation. This reduces the load on system cooling solutions and lowers long-term energy costs, making it suitable for 24/7 operation in mission-critical applications (e.g., power generation, oil refining).
