VF702 Advantages

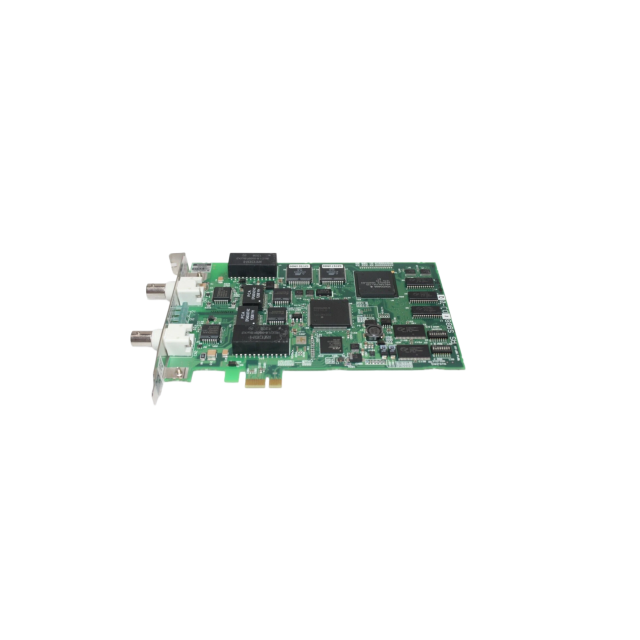

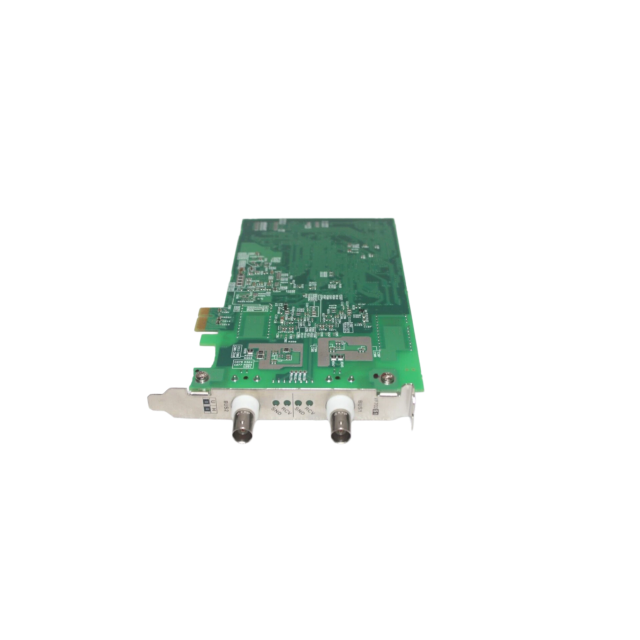

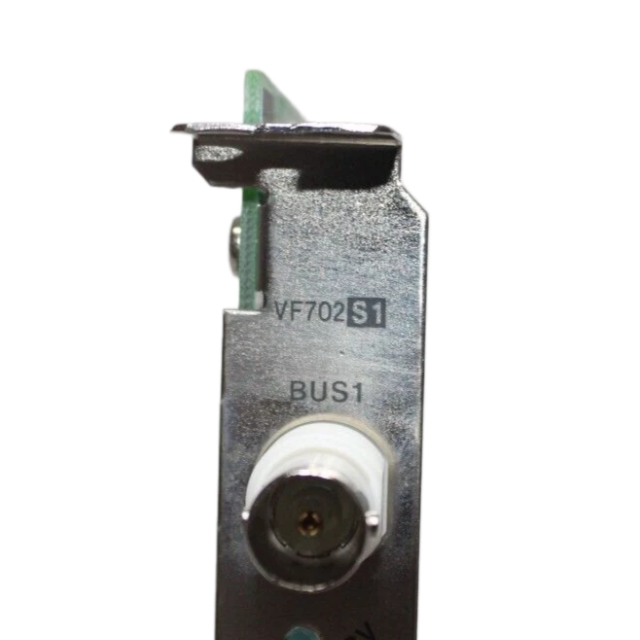

Yokogawa VF702 provides stable dual-redundant Vnet coaxial bus communication solutions for Yokogawa Centum VP human-machine stations. Stable operating performance. Dual independent BNC coaxial channels support seamless automatic redundant switching without HMI screen freezing, 10BASE-2 coaxial transmission reaches maximum 185m communication distance, low-latency dedicated communication chip ensures real-time synchronization of millisecond-level process data, built-in bus segment fault isolation function cuts off abnormal equipment to protect the whole Vnet network, fully meeting long-term uninterrupted large-scale plant centralized monitoring and operation demands. Strong environmental adaptability. Reinforced industrial PCB substrate and built-in multi-stage isolation circuits support 24-hour continuous operation under humid, dusty, high-temperature and strong electromagnetic interference central control room scenarios. Excellent anti-interference capability. Complete channel-to-channel galvanic isolation structure blocks power grid surge and cable crosstalk interference, coaxial transmission fundamentally avoids electromagnetic noise interference from frequency converters and large motors, effectively eliminates data jitter, screen stalling and intermittent network disconnection. Perfect system compatibility. Standard PCIe x1 host interface fully matches all mainstream Centum VP series supporting hardware including FCS CPU boards, AIP series optical transceivers, various I/O modules and Vnet bus couplers, realizing seamless bidirectional process data interaction between operator stations and all field control stations. Convenient maintenance design. Compact PCIe plug-in structure equipped with RDY running, RCV receiving and SND sending status indicator lights on the panel, supports dual redundant online replacement without workstation shutdown, simplifies on-site YCB146 coaxial cable wiring inspection, bus communication troubleshooting and rapid spare parts replacement. Industrial durable reliability. Manufactured strictly in accordance with Yokogawa industrial DCS communication card production standards, built-in full-time bus link self-diagnosis function, fully satisfying long-term stable Vnet control bus communication operation demands of field Centum VP control systems.
VF702 Applications
Power industry. Used as core Vnet communication interface for thermal power plant Centum VP HIS operation and engineering workstation equipment, connecting central control room multiple FCS control stations. Petrochemical industry. Applied to human-machine station Vnet bus communication access of large oil refining, coal chemical and storage tank area production facilities equipped with Centum VP distributed control system. Industrial automation. Suitable for multi-station process data interaction of pharmaceutical, metallurgical and semiconductor factory central control room Centum VP operation workstations. Energy equipment control. Acts as core Vnet bus interface component to guarantee real-time plant-wide process monitoring and operation for thermal power, oil & gas and renewable energy facilities with Centum VP configuration. Factory process control. Cooperates with various Yokogawa Centum VP FCS CPU boards, RIO optical link transceivers and remote FIO node units to build complete multi-station industrial control Vnet communication network.
VF702 Certifications & Compliance
Yokogawa VF702 conforms to international industrial control safety and quality standards. It passes EMC electromagnetic compatibility test and industrial performance certification, and complies with RoHS environmental protection regulations as well as power, petrochemical and chemical industry application specifications. All Control Bus Interface Cards are 100% New & Original genuine parts. Each product undergoes strict Vnet communication stability and dual redundant switching aging testing before delivery, equipped with anti-collision shockproof packaging and one-year global warranty service.
