Maintenance teams running Woodward MicroNet turbine control systems know that locating the correct spare part is not a simple catalog lookup. When a 5464-331 CPU module faults or a 5464-334 power supply drops offline, the part number is only the starting point. Sourcing genuine Woodward MicroNet spare parts means confirming revision compatibility, verifying stock availability, and securing delivery within a window that does not extend plant downtime. I have over ten years of experience supplying industrial automation spares, and I have seen a single mismatched module delay a restart by two weeks because the replacement carried an incompatible firmware revision. This article covers the 5464-331, 5464-213, and 5464-334 modules, what each does inside the MicroNet chassis, and which questions to ask before committing to a purchase.
What Makes the Woodward MicroNet Platform Different for Spare Parts Sourcing
The Woodward MicroNet is a configurable digital control platform widely installed across gas turbine, steam turbine, and compressor applications. Unlike single-function controllers where one part number maps to one fixed role, the MicroNet chassis accepts multiple I/O and CPU modules in various slot configurations. This flexibility means two plants running the same turbine model may carry different module revisions in their MicroNet racks.
From a procurement standpoint, this creates a sourcing problem that catalog-style part listings do not solve. You need to know not just the base part number but the revision level, firmware version, and slot compatibility before placing an order. I have worked with customers who ordered a 5464-331 CPU only to find that their system required an earlier firmware build because the replacement module would not handshake with the existing I/O backplane. That distinction does not appear on a standard datasheet.
Woodward has also revised internal components within the same part number family over the product lifecycle. A 5464-331 manufactured in 2010 may use different internal board revisions than one produced in 2018, even though both carry the same base part number. For procurement teams managing aging turbine fleets, this means sourcing is not just about finding stock. It is about matching the right revision to the right chassis generation.
Woodward MicroNet 5464-331 CPU Module Specifications and Sourcing Requirements

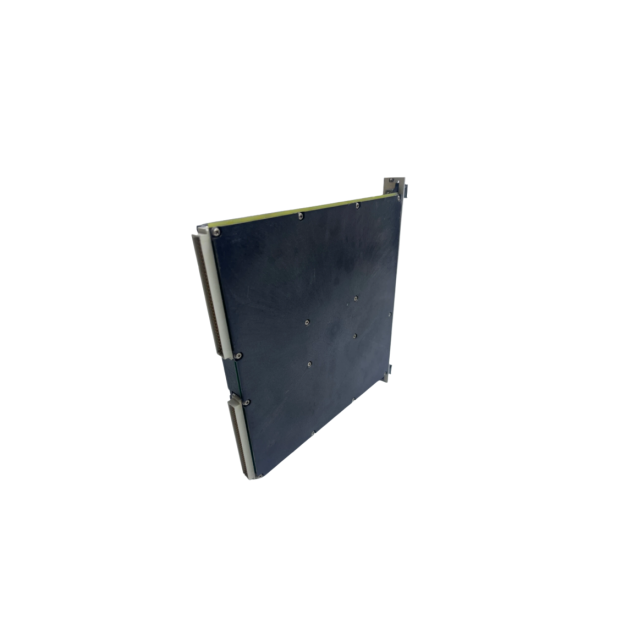

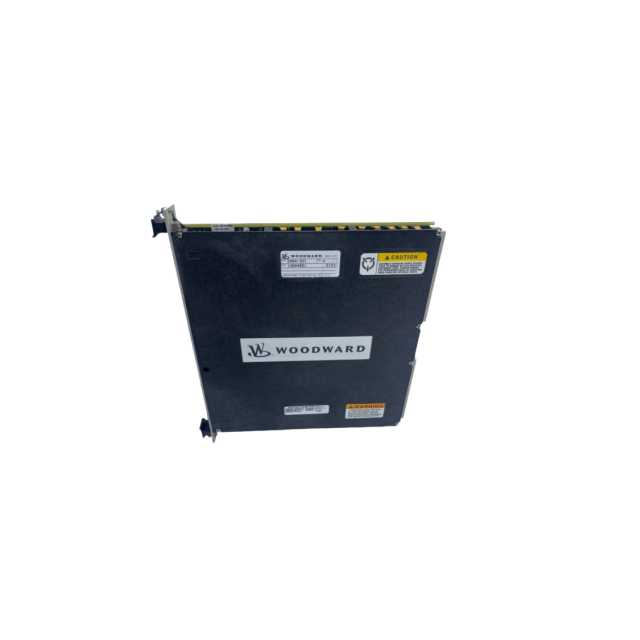

The 5464-331 serves as the central processing unit within the MicroNet chassis, executing control algorithms, managing I/O communication, and coordinating system diagnostics. It is the module most likely to be flagged as critical in a plant’s BOM because a CPU failure typically brings the entire control loop down.
When I source 5464-331 modules for clients, I verify three things before quoting availability. First, the exact part number including any suffix or revision code on the existing unit. Second, the firmware level running on the current system. Third, whether the chassis is populated with original Woodward I/O modules or third-party equivalents, because I have encountered compatibility issues when a third-party I/O module expects a different backplane communication timing than what the replacement CPU provides.
For clients running legacy MicroNet installations that are fifteen years or older, I also recommend confirming whether the existing 5464-331 has ever been repaired or reworked. Reballed BGA packages or replaced capacitors can alter the module’s electrical characteristics, and a new replacement may behave differently in the same slot if the chassis backplane has aged around the reworked unit’s tolerances. This is not a specification Woodward documents. It is a field observation from supporting multiple turbine fleets over time.
5464-213 I/O Module and 5464-334 Power Supply: Function, Failure Modes, and Sourcing

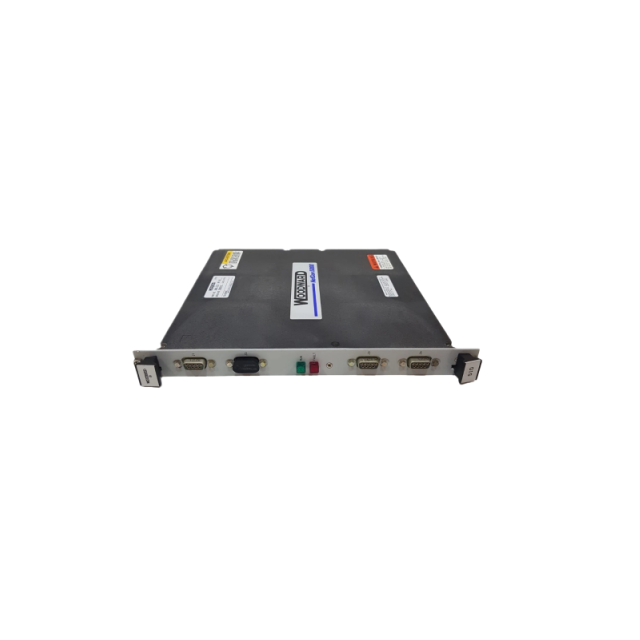

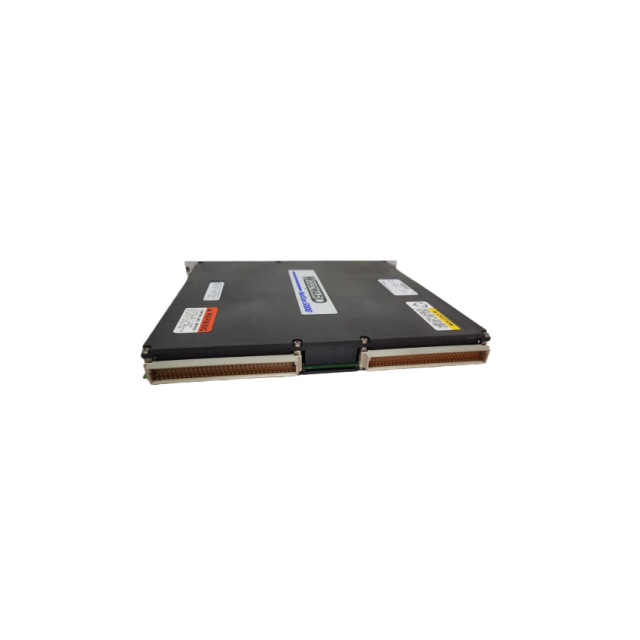

The 5464-213 handles signal input and output within the MicroNet system, bridging field devices to the control logic. The 5464-334 provides regulated power to the chassis backplane and connected modules. While neither carries the same immediate criticality as the CPU, either failing creates a cascading problem. A degraded power supply can produce intermittent voltage drops that manifest as I/O errors long before the supply itself triggers an alarm.
Below is a comparison of the three Woodward MicroNet modules covered in this guide.
Part Number
Module Type
Primary Function
Common Failure Indicator
5464-331
CPU Module
Control algorithm execution, I/O coordination
System watchdog timeout, loss of communication
5464-213
I/O Module
Analog and digital signal interface
Channel dropout, erratic readings
5464-334
Power Supply
Chassis backplane power distribution
Intermittent resets, undervoltage faults
In practice, I tell maintenance teams to treat the 5464-334 as a preventive replacement item rather than waiting for failure. Power supply electrolytic capacitors have a finite service life, and in turbine enclosures where ambient temperatures run high, that life shortens considerably. Keeping one tested 5464-334 on the shelf is a low-cost decision compared to troubleshooting a system reset that occurs only under load.
For the 5464-213, channel count and signal type matter when confirming the replacement. Some 5464-213 variants support different input voltage ranges or output drive capacities depending on the production batch. If your existing module drives a high-current field device, confirm the replacement can handle the same load before accepting the shipment.
If your MicroNet system mixes 5464-213 modules across different slots with different signal types, it is worth confirming I/O channel mapping against the replacement module’s configuration before finalizing your BOM. Reach out at chen@htechplc.com with your chassis layout and we can verify compatibility.
How to Confirm Genuine Woodward MicroNet Spare Parts Before Purchase
Genuine Woodward modules carry specific label formats, PCB silkscreen markings, and serial number encoding that distinguish them from reworked or relabeled units. I have handled enough MicroNet modules to recognize the difference between a factory-original label and one that has been reprinted, but procurement teams without that familiarity should focus on a few practical checks.
Request a photo of the module label showing the full part number, revision, and serial number before payment. The serial number can often be referenced against Woodward’s production records to confirm build date and original configuration. If the seller cannot provide a clear label photo, treat that as a red flag.
Also check the connector condition. Genuine new-old-stock Woodward modules typically have clean gold-plated contacts with no insertion wear. Modules pulled from decommissioned systems may work electrically but show visible contact abrasion. That wear is not always a problem, but it should be disclosed and reflected in the price. I have seen relabeled used modules sold as “new” at full market price because the buyer did not ask for contact photos.
For customers sourcing through Joyoung International, every module is inspected and tested before shipment. We provide high-resolution photos of the actual unit, including label, connector condition, and PCB revision markings, so you know exactly what you are receiving before it leaves our facility.
What Lead Times to Expect When Sourcing Woodward MicroNet Components
Lead time for Woodward MicroNet spare parts varies significantly based on whether the module is in active production, in limited support, or discontinued. The 5464-331, 5464-213, and 5464-334 fall into different availability tiers depending on their revision and the current Woodward production schedule.
For modules still in active supply, standard lead times from Woodward direct channels typically range from four to eight weeks, though I have seen certain revisions stretch to twelve weeks when production slots are full. For discontinued revisions, lead time becomes a function of market availability. Some revisions sit on independent distributor shelves for months. Others move within days of listing.
What I recommend to clients managing critical MicroNet systems is maintaining at least one tested spare per module type on site. I understand that budget constraints do not always support that approach across every part number, so I suggest prioritizing the CPU module and power supply first. Communication modules and discrete I/O modules can often be sourced or substituted more quickly than a processor or power regulation unit.
Questions Maintenance Teams Ask About Woodward MicroNet Spare Parts
Is a 5464-331 from one MicroNet chassis interchangeable with another?
In most cases, yes, provided the firmware revision and backplane generation match. I have seen a 5464-331 pulled from a gas turbine MicroNet rack work correctly in a steam turbine installation when both systems ran the same firmware major version. The risk comes when moving a module across different MicroNet chassis generations, where backplane timing differences can cause intermittent faults that do not trigger an immediate alarm but degrade control loop performance over hours of operation.
How do I know if my 5464-334 power supply is failing or if the problem is upstream?
Intermittent resets that occur only under load or after several hours of operation point toward the power supply rather than the upstream feed. A failing 5464-334 often produces clean output at no load but drops voltage under current draw when internal capacitors cannot sustain the required output. If you have a spare, swap it in and run the system under load for a full shift. If the problem disappears, the power supply was the root cause.
Can I use a third-party equivalent for the 5464-213 I/O module?
It depends on what the third-party module was designed to replicate. Some third-party modules match Woodward’s signal timing and backplane protocol faithfully. Others approximate the interface and work under steady-state conditions but introduce timing skew under fast signal changes. In programs we have supported, mixing third-party I/O with original Woodward CPU modules has occasionally produced communication faults that cleared only after switching back to genuine Woodward I/O. If you choose a third-party alternative, test it under transient conditions before relying on it in production.
What documentation should I request when buying a used 5464-331?
Request a photo of the original Woodward label showing the full part number, revision, and serial number. Ask for a close-up of the backplane connector to check contact wear. If the seller offers a test report, confirm what parameters were tested and whether the report references the serial number of the specific module being sold. For modules we supply at Joyoung International, we include our own inspection documentation with every shipment. Share your part number and chassis revision at chen@htechplc.com or call +86-181-5013-7565, and we can confirm stock availability and provide module photos before you commit.
