A failed Woodward 505E governor part can stall a turbine in hours, and the financial damage starts piling up the moment rotation stops. Sourcing replacement spare parts such as the 9907-162 actuator module or 8200-224 speed control unit quickly and with certainty is the difference between a planned maintenance window and an uncontrolled outage. Over a decade of supporting gas turbine and steam turbine operators globally, I’ve found that the most damaging downtime almost never comes from a part that is truly unavailable—it comes from receiving a part that looks right but isn’t, or from a supplier that doesn’t move fast enough after the order is placed. The following guidance focuses on making the 505E spare parts supply chain work in your favour.
Know What Each 505E Governor Part Does
The Woodward 505E is a digital governor built for steam, gas, and hydro turbines. It handles speed control, load sharing, and valve positioning, and when a component degrades the machine often loses precision well before it sets off a fault alarm. The three part numbers in front of most procurement teams are:

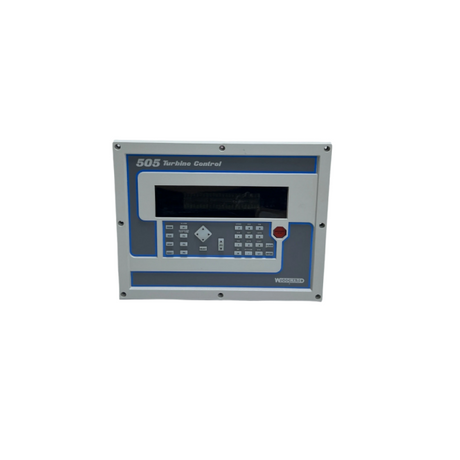

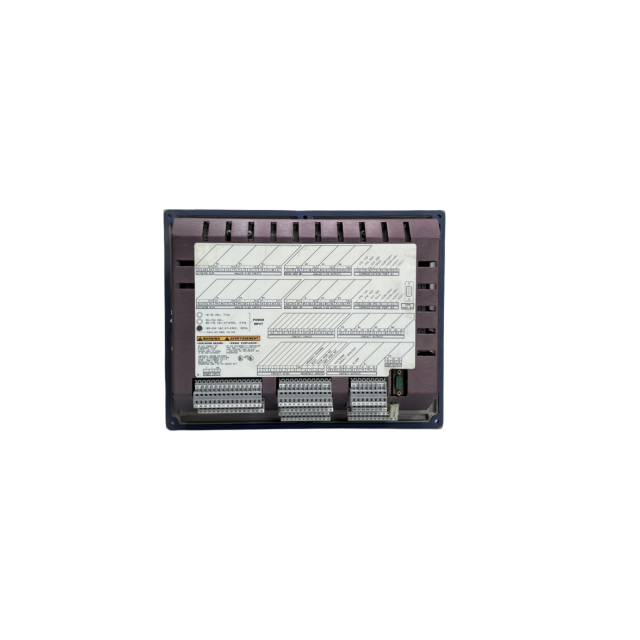

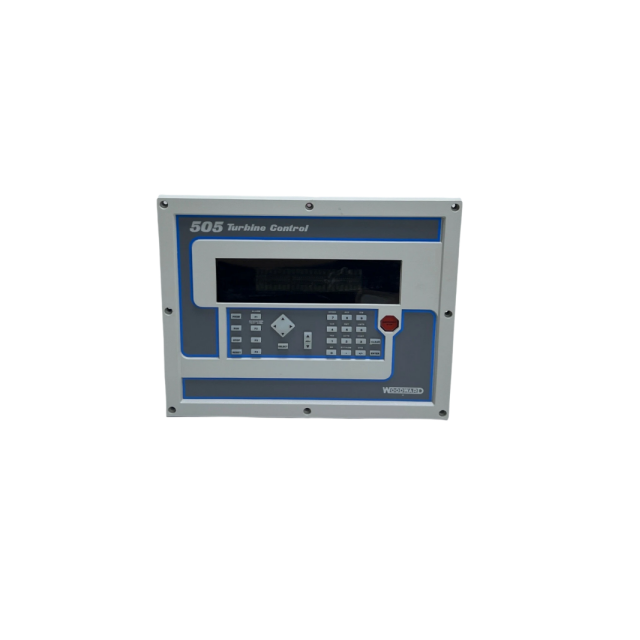

9907-162 – actuator driver or output module responsible for converting the control signal into actionable valve movement.

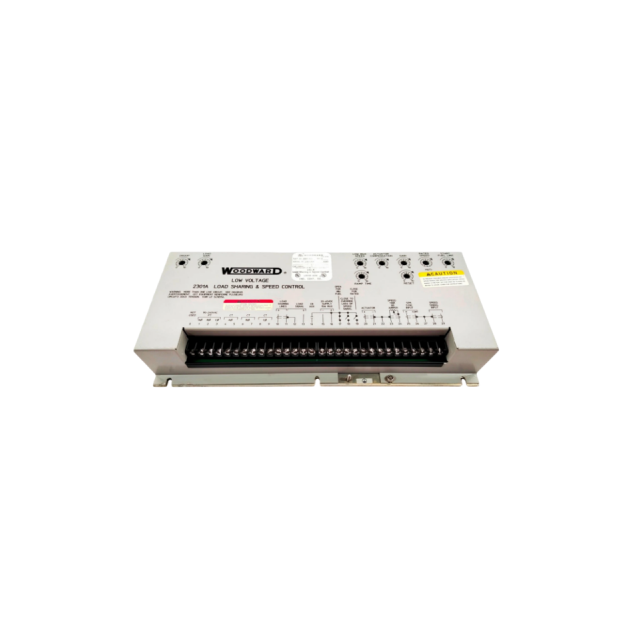

9907-018 – another actuator or interface module, often paired with the 9907-162 for redundancy or specific turbine configurations.

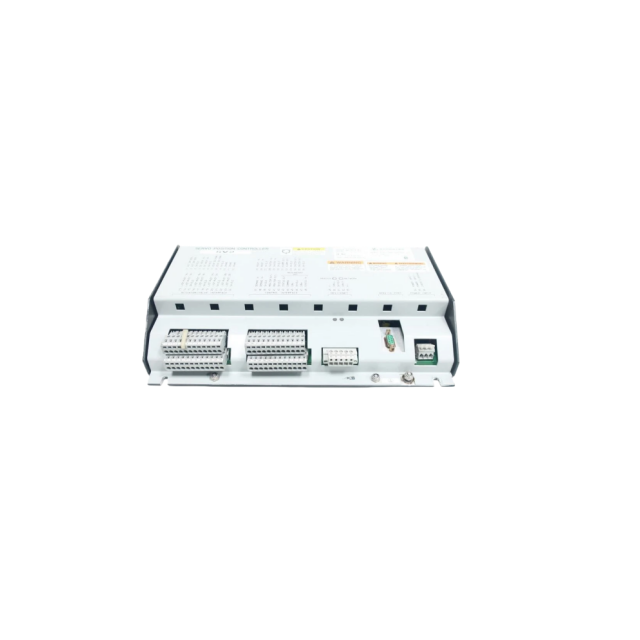

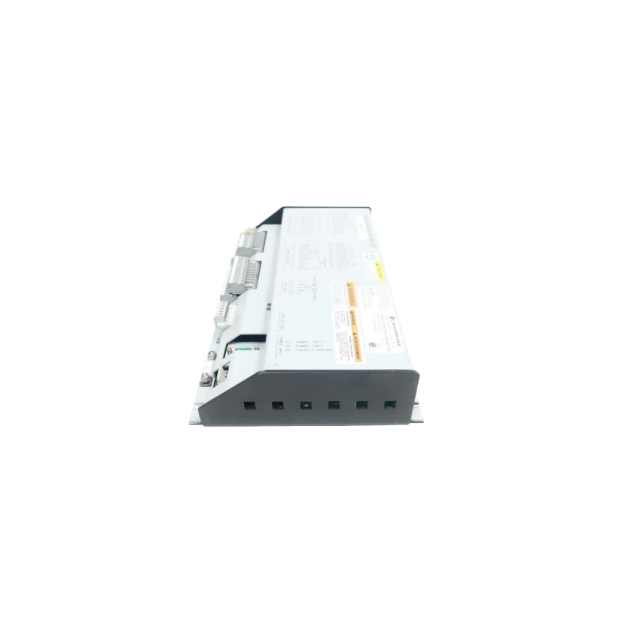

8200-224 – a speed control or CPU-related board that reads turbine RPM and synchronizes output to the actuator chain.
These are not interchangeable with generic industrial I/O cards. Each has proprietary calibration and firmware that Woodward associates with the specific turbine frame. In supply terms that means a visually similar part from another system can install, run for a few days, then trip on a protection override because the timing loops don’t match. I’ve seen that exact scenario on a Frame 6 gas turbine where the plant replaced a failing 9907-162 with an “equivalent” sourced from a non-authorized distributor. The unit ran for 72 hours, then tripped on overspeed during a load swing.
Risks You Run When Sourcing Outside Authorized Channels
Price pressure makes non-OEM and surplus channels attractive, but the 505E governor tolerates very little deviation. The risks break into three layers.
First, physical authenticity. A re-labelled part with a fresh sticker is hard to spot in a warehouse photo. The internal PCB may be an earlier revision with different gain values, or it may carry firmware that the 505E wasn’t qualified with. Counterfeit components inside the module—voltage regulators, DSP chips—fail under the thermal cycling that a turbine governor enclosure sees every day.
Second, storage and handling. A genuine part that sat in uncontrolled humidity for two years can have corrosion on the edge connectors that doesn’t show in a visual inspection but will cause intermittent signal drops once the turbine reaches operating temperature and the card edge expands.
Third, lead time fiction. Many surplus listings say “in stock” when the reality is the seller expects to locate a unit from a partner. That gap—sometimes 3-5 business days before real shipping—pushes a quick maintenance window into an extended outage. For a turbine generating 40 MW, one extra day of downtime burns more cash than any spare parts cost difference.
How to Verify 9907-162 and 8200-224 Parts Before Payment
The verification sequence that has worked across hundreds of turbine control part shipments follows three steps. It takes 15-20 minutes but prevents the two-week nightmare of diagnosing a misbehaving governor after start-up.
Step 1 — Series and revision check. Request a photo of the part label with the full alphanumeric string, not just the catalog number. Woodward uses revision letters (e.g., 9907-162 Rev C) to track design changes. A Rev A actuator substituted for a Rev D will have different torque limits, and the 505E can fail to detect the mismatch until it commands a travel that the older revision can’t handle.
Step 2 — Connector and pin-out visual comparison. If you still have the failed module, compare the card-edge fingers and any ribbon cable sockets pin by pin with a high-res image of the replacement. Even one factory-populated jumper in a different position can shift the actuator feedback loop.
Step 3 — Store and ship condition. Require the supplier to confirm in writing the module was stored in an anti-static bag within a temperature- and humidity-controlled environment. This is not paperwork theatre; we’ve opened boxes where the desiccant had turned pink and the card showed chloride spotting on the ground plane.
| Verification Step | What It Catches | Risk If Skipped | |——————|—————-|—————-| | Series & revision letter | Firmware/calibration mismatch | Overspeed trip, valve hunting | | Connector pin-out photo | Wrong jumper configuration | Actuator feedback loop failure | | Storage condition confirmation | Corrosion, latent ESD damage | Intermittent signal drops under heat |
Choosing a Supplier That Keeps Your Governor Running
The supplier evaluation framework that matters for 505E parts isn’t about glossy datasheets—it’s about three measurable capabilities.
First, actual physical stock. A supplier that can provide a same-day photo with your name and today’s date handwritten next to the unit is demonstrating real inventory, not a database listing. When a turbine is down, that’s the single most valuable piece of evidence. At Joyoung International Trading Co., we maintain live inventory of Woodward spare parts including the 8200-224 and both 9907-162, 9907-018 variants, with same-day photos available before any payment.
Second, speed to aircraft. For a turbine governor part, standard courier economy routing adds a day of transit that costs the plant operator tens of thousands in lost generation. The supplier should offer DHL or FedEx Priority as the default, not an add-on, and should be able to hand over the package to the courier within four hours of cleared payment. We ship globally from our bonded warehouse and routinely reach Houston, Singapore, and Rotterdam within 48-72 hours door-to-door.
Third, post-delivery technical availability. Even a “plug-and-play” 505E module may need guidance on first-time calibration or a health-check sequence after installation. A supplier that can connect you with an engineer who has worked on these systems—not just a sales desk—turns a parts transaction into a restart acceleration.
If your current supplier can’t meet all three, it’s worth confirming whether the gap is persistent or just a one-time bottleneck. Email us the part number and your required delivery window and we’ll give you a realistic timeline before you place an order.
From Order to Installation: The Delivery Checklist
When time pressure is extreme, the logistics plan matters as much as the part itself. Here’s the sequence that has proven reliable.
Documentation before dispatch. The shipment should include a commercial invoice that lists the exact part number and revision code, a packing list with the serial number, and, if the part passed any bench test, a test report with pass/fail parameters. This paperwork is what your site electrical lead and maintenance planner need before they will sign off installation—having it arrive with the part saves hours of email ping-pong.
Customs clearance. Woodward spare parts fall under various HS codes depending on whether they are classified as electrical control boards or governor accessories. A shipment stuck in customs for two days because the HS code was misclassified defeats the purpose of fast air freight. Our logistics team pre-clears using the turbine classification scheme for the destination country, not a generic electronics code.
On-site inspection upon arrival. Before the part goes into the panel, take five minutes to: – Compare the label against the documentation and the original order. – Check the edge connector under bright light for oxidation or mechanical damage. – Verify the anti-static packaging seal hasn’t been opened in transit.
Those five minutes have prevented at least three turbine trips that I know of, where a swapped label or a loosened component during shipping would have caused a governor fault hours after re-energization.
Getting Answers Before the Governor Trips
Is an aftermarket 9907-162 just as reliable as the OEM part?
It depends on who manufactured it and the revision level required. In programs we’ve supported, an aftermarket unit that is functionally identical with the same PCB layout and component ratings can perform well, provided it was built using the same Gerber files and calibration procedure. The risk arises when the aftermarket part is a “similar” design that doesn’t replicate the exact gain staging or feedback loop timing. If you must go aftermarket, insist on a documented test report comparing it against the OEM spec sheet—not just a visual match.
How fast can I realistically get an 8200-224 from a China-based supplier?
With our standard procedure, the module can be in a courier’s hands within four hours of final order confirmation, arriving in Europe or North America in 48-72 hours. The main variable is whether the destination airport has weekend customs clearance. We can route through hubs with 24/7 clearance to minimize that delay.
Can Joyoung provide documentary proof that the part is original Woodward?
Yes. We supply only parts sourced directly from Woodward authorized channels or from known, verified OEM allocations. For any 505E part we ship, we include a certificate of origin and, where available, the original manufacturer’s packing slip. We also encourage the buyer to inspect the part on arrival and will accept a return if any discrepancy is identified before installation.
How do I know if my governor needs a 9907-162 or a different actuator?
Start by reading the full part number from the existing failed module label, including the revision letter. If the label is missing or damaged, photograph the connector pin-out and the mounting footprint—our technical support team can cross-reference that against Woodward’s actuator matrix. Because the 505E was frequently customized for different turbine OEMs, there is no universal substitution table, but the mounting pattern and connector type narrow it down quickly.
What happens if the part I receive doesn’t solve the problem?
If the new 9907-162 or 8200-224 is installed and the governor fault persists, the issue may lie deeper in the 505E’s internal bus or in the field wiring. We support return-and-replacement within our warranty window, and our engineers can help review fault codes remotely at no additional cost. Share your turbine configuration and the fault history and we’ll advise which direction to investigate next.
