1746-NIO4I Advantages
The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module stands out from comparable analog I/O modules in several key areas.
Compact mixed‑signal 2AI+2AO integrated design. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module combines two multi‑range analog input channels and two 0‑20 mA analog current output channels within one single slot, saving valuable SLC‑500 rack slot resources for small‑scale closed‑loop process control applications.
Multi‑range analog input flexibility. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module supports both ±10 V voltage and ±20 mA current input signals, adapting to different types of field process transmitters without additional signal conversion hardware.
High‑precision A‑D/D‑A conversion performance. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module adopts 16‑bit ADC for input sampling and 14‑bit DAC for current output, providing high‑accuracy measurement and fine regulating output for process‑loop control.
Field‑to‑backplane galvanic isolation protection. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module provides 500V AC /710V DC isolation between field instruments and PLC internal backplane, suppressing ground‑loop noise and protecting SLC‑500 CPU and other modules against field‑side surges and faults.
Native Allen‑Bradley 1746 SLC‑500 integration. As a factory‑original Allen‑Bradley 1746 series component, the Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module plugs directly into standard SLC‑500 chassis slots without additional conversion adapters.
Removable screw terminal block design. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module is equipped with detachable screw‑type terminals, simplifying pre‑wiring, module replacement and field maintenance work without re‑crimping field instrument cables.
1746-NIO4I Applications
Discrete Manufacturing & Process Automation Production Lines. Main mixed analog I/O interface within Allen‑Bradley 1746 SLC‑500 PLC systems, executing small‑scale closed‑loop control by reading process transmitter signals and outputting regulating commands to analog valves.
Material Handling & Conveyor Systems. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module collects analog speed‑feedback signals and outputs analog set‑point control for variable‑speed drive equipment inside material‑handling control cabinets.
Water Treatment & Wastewater Control Plants. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module completes parameter acquisition and regulating output for liquid‑level, pressure and flow closed‑loop control inside auxiliary water‑process control cabinets.
Petrochemical & Chemical Processing Facilities. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module handles local process variable acquisition and analog regulating‑valve output for SLC‑500‑based small‑scale chemical‑workshop automation cabinets.
General Industrial PLC‑based Control Systems. The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module serves as original spare mixed analog‑input‑output hardware for existing Allen‑Bradley 1746 SLC‑500‑based distributed automation systems.

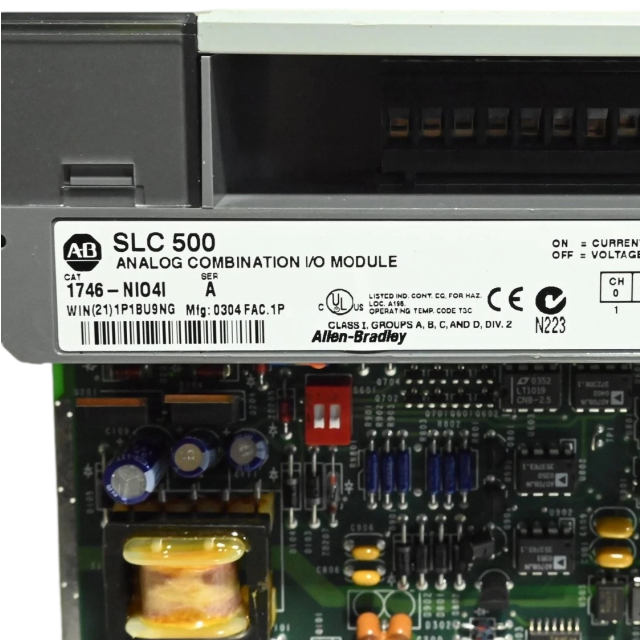

1746-NIO4I Certifications & Compliance
The Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module holds the following international safety and compliance approvals:
• UL listed — North‑American industrial control equipment safety approval.
• CE certification — European industrial control equipment safety and EMC compliance.
• C‑Tick marked — EMC compliance for Australian and New Zealand markets.
• Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All modules supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1746‑NIO4I SLC 500 Analog Output Module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
