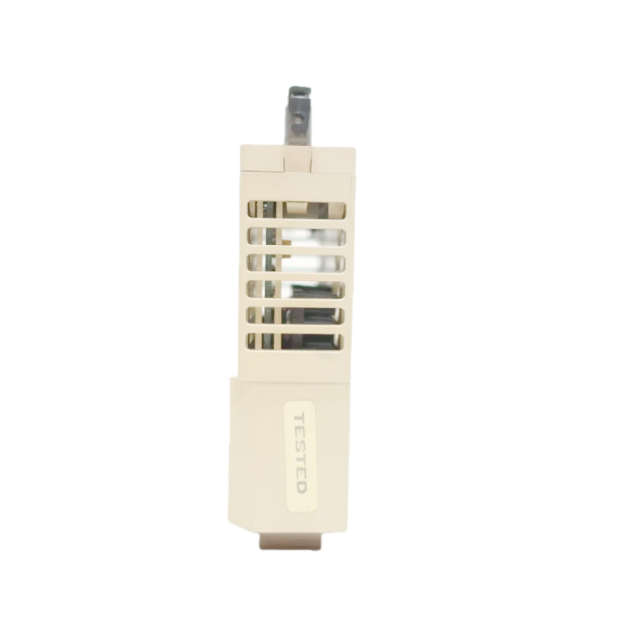

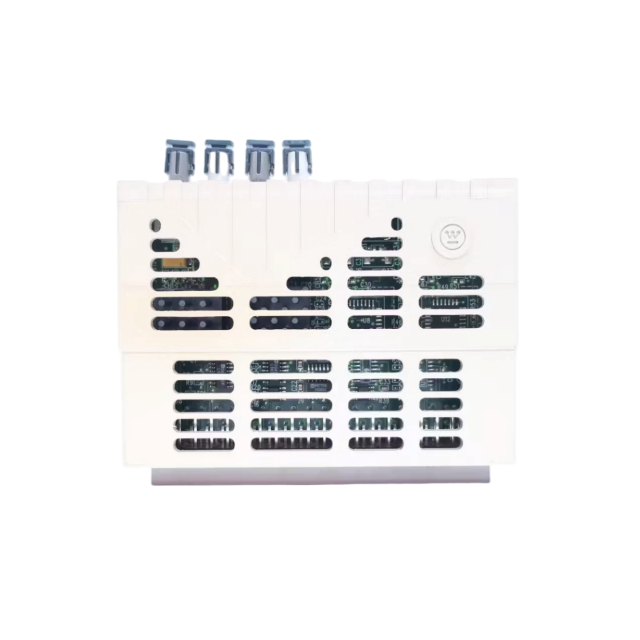

Emerson Ovation 1C31181G01: Remote I/O Module – Technical Overview & Integration Guide
The 1C31181G01 is a critical Remote I/O (RIO) module engineered for Emerson’s Ovation Distributed Control System (DCS), enabling seamless communication between remote I/O nodes and the central Ovation Controller. Designed to extend the reach of the Ovation system to distant plant areas—such as offshore platforms, remote pump stations, or large manufacturing facilities—this module ensures reliable data transmission, robust fault tolerance, and compliance with industrial environmental standards. Below is a detailed breakdown of its core functions, specifications, installation, and use cases, optimized for clarity and search visibility to support efficient deployment in distributed industrial control architectures.
1. Core Function & Key Capabilities
The 1C31181G01 serves as the communication and control hub for Ovation Remote I/O nodes, bridging the gap between local controllers and geographically dispersed field devices. Its primary capabilities include:
Remote Node Communication: Facilitates high-speed data exchange between the central Ovation Controller and remote I/O cabinets via fiber-optic or copper cabling, supporting real-time transmission of input/output signals (analog, digital, HART) with minimal latency.
Fault Tolerance: Incorporates built-in redundancy features, including dual communication paths and automatic failover, to ensure uninterrupted operation if a primary link or component fails—critical for mission-critical processes like power generation or chemical refining.
Signal Conditioning: Buffers and conditions signals from remote field devices (e.g., sensors, valves, motors) to maintain signal integrity over long distances, reducing errors caused by EMI (electromagnetic interference) or voltage drop.
Diagnostic Monitoring: Provides real-time status updates and fault alerts via the Ovation Controller, including link health, power supply status, and module internal errors, enabling proactive maintenance and minimizing downtime.
CE Mark Compliance: Meets EN 61000-4 standards for electromagnetic compatibility (EMC) and EN 61010 for safety, making it suitable for regulated industrial environments across Europe and global markets.
2. Technical Specifications
2.1 Electrical Specifications
Communication Interface: Supports Ovation’s proprietary serial I/O bus, with compatibility for fiber-optic (via Media Attachment Unit, MAU) or copper cabling (AUI cable) to connect to remote nodes.
Data Rate: Operates at a baud rate of 1 Mbps, ensuring fast signal transmission for time-sensitive applications (e.g., turbine speed control, emergency shutdown systems).
Power Requirements: Draws 24 VDC ±5% from the Ovation remote I/O cabinet’s auxiliary power supply, with a typical current consumption of 0.5 A (max 0.8 A) for module electronics and communication circuits.
Dielectric Isolation: Provides 1000 V AC/DC isolation between communication lines and module logic circuits, preventing ground loops and protecting against electrical surges from field wiring.
Surge Protection: Integrates metal-oxide varistors (MOVs) to suppress transient voltage spikes up to 2 kV, safeguarding internal components from damage caused by lightning or switchgear transients.
2.2 Environmental Specifications
Operating Temperature Range: 0–60°C (32–140°F), suitable for installation in remote cabinets with ambient temperature control (no additional cooling required for standard operation).
Storage Temperature Range: -40–85°C (-40–185°F), withstanding extreme conditions during shipping or offline storage in harsh environments (e.g., desert or arctic locations).
Humidity Tolerance: 0–95% non-condensing, resistant to moisture in coastal, offshore, or wastewater treatment applications.
Vibration & Shock Resistance: Complies with IEC 60068-2-6 (vibration: 10–500 Hz, 0.15 g) and IEC 60068-2-27 (shock: 100 g, 1 ms), surviving mechanical stress from pump vibration or cabinet movement.
EMI Immunity: Meets EN 61000-4-3 (radiated field immunity: 10 V/m) and EN 61000-4-6 (conducted RF immunity: 10 V rms), ensuring stable operation in high-EMI environments (e.g., near motors or transformers).
2.3 Mechanical & Physical Specifications
Form Factor: DIN rail-mountable design, compatible with standard 35 mm DIN rails in Ovation remote I/O cabinets (e.g., Emerson 1B30035H01 base units).
Dimensions: 279 mm (length) × 127 mm (width) × 165 mm (height), matching the footprint of other Ovation I/O modules for consistent cabinet spacing and easy integration.
Weight: 450 grams (empty), lightweight enough for secure mounting without additional cabinet reinforcement.
Housing Material: Flame-retardant polycarbonate (UL 94 V-0 rating) to prevent fire spread in case of electrical faults, with a corrosion-resistant aluminum heatsink for thermal management.
3. Compatibility & Required Components
The 1C31181G01 is engineered to integrate seamlessly with Ovation’s Remote I/O ecosystem, requiring specific components for full functionality:
3.1 Ovation System Compatibility
Controllers: Works with all Ovation Controllers (e.g., Ovation 1C31227G01) equipped with a PCRR IOIC card (Ovation’s remote I/O interface card) to establish communication with remote nodes.
Remote I/O Nodes: Compatible with Ovation Remote Node Controller (RNC) modules (e.g., 1C31192G01) and MAU (Media Attachment Unit) modules (e.g., 1C31193G01) for fiber-optic/copper signal conversion.
I/O Modules: Supports all Ovation I/O module types in remote cabinets, including analog input (1C31224G01), digital output (1C31122G01), HART (5X00058G01), and relay output (1C31219G01) modules.
Field Devices: Interfaces with all industrial field devices supported by Ovation I/O modules, such as pressure sensors, flow transmitters, solenoid valves, and motor starters.
3.2 Required Accessories
MAU Module: 1C31193G01 Media Attachment Unit for fiber-optic communication, converting electrical signals from the 1C31181G01 to optical signals for long-distance transmission (up to 2 km over multimode fiber).
AUI Cable: 5A26147 AUI cable (Attachment Unit Interface) to connect the 1C31181G01 to the PCRR card in the central controller cabinet (for copper-based remote I/O setups).
Fiber-Optic Cable: 3A98763-Green (multimode) or 3A98764-Yellow (singlemode) fiber-optic cable for long-distance remote node connections (recommended for distances >100 meters).
Terminal Blocks: Ovation standard 18-position terminal blocks (integrated in base units like 1B30035H01) for field wiring termination, with clearly labeled connections for power, communication, and signal lines.
Torque Screwdriver: For tightening terminal block screws (recommended torque: 0.8 N·m) to ensure secure connections and prevent signal loss.
4. Installation Guidelines
4.1 Pre-Installation Checks
Power Safety: Ensure both the central Ovation cabinet and remote I/O cabinet are powered off and locked out/tagged out (LOTO) to prevent electrical shock during installation.
Component Inspection: Check the 1C31181G01 for physical damage (e.g., cracked housing, bent pins) and verify the part number matches the project’s bill of materials. Inspect cables (AUI, fiber-optic) for cuts, kinks, or connector damage.
Cabinet Layout Review: Confirm the remote I/O cabinet has sufficient space for the 1C31181G01 (allow 2 cm of clearance from adjacent modules for airflow) and that the DIN rail is securely mounted.
4.2 Step-by-Step Installation
Mount the Module: Snap the 1C31181G01 onto the 35 mm DIN rail in the remote I/O cabinet, aligning it with the cabinet’s backplane connectors. Push firmly until the rail clips lock into place—pull gently to confirm stability.
Connect Communication Cables:
For Fiber-Optic Setup: Plug one end of the fiber-optic cable into the MAU module (1C31193G01), then connect the MAU to the 1C31181G01’s “FIBER IN/OUT” port. Route the other end of the fiber-optic cable to the central controller’s MAU module.
For Copper Setup: Connect the 5A26147 AUI cable to the 1C31181G01’s “AUI” port and the PCRR card’s AUI port in the central cabinet. Ensure the cable is routed away from high-voltage power lines to minimize EMI.
Connect Power: Plug the remote I/O cabinet’s 24 VDC auxiliary power cable into the 1C31181G01’s “PS+” and “PS-” terminals. Verify the polarity is correct (PS+ = positive, PS- = negative) to avoid module damage.
Wire Remote I/O Modules: Connect Ovation I/O modules (e.g., 1C31224G01 analog input) in the remote cabinet to the 1C31181G01 via the cabinet’s backplane. Follow the Ovation I/O Builder tool’s node mapping to assign each module to a unique address.
Configure the Controller: Use the Ovation I/O Builder tool to define the remote node (assign an address, select communication type: fiber/copper) and map the remote I/O modules to the central controller. Save the configuration and download it to the controller.
Power On & Verify: Restore power to the remote and central cabinets. Check the 1C31181G01’s diagnostic LEDs:
“P” (Green): Lit if 24 VDC power is present.
“C” (Green): Lit if communication with the central controller is established.
“E” (Red): Off if no external faults (e.g., cable loss) are detected.
“I” (Red): Off if no internal module errors (e.g., memory fault) are present.
4.3 Installation Best Practices
Fiber-Optic Handling: Avoid bending fiber-optic cables beyond their minimum bend radius (10 cm for multimode) to prevent signal loss. Use fiber-optic connectors with dust caps when not in use to protect against contamination.
Grounding: Ground the remote I/O cabinet to earth ground at a single point, and connect the 1C31181G01’s “GND” terminal to the cabinet’s ground bus. This prevents ground loops that can disrupt communication.
Cable Labeling: Label all communication and power cables at both ends (e.g., “1C31181G01 → PCRR Card, Node 2”) to simplify maintenance and troubleshooting.
Weather Protection: For outdoor remote cabinets, ensure cables enter the cabinet through weatherproof glands and that the cabinet is rated for NEMA 4X (or equivalent) to resist rain, dust, and corrosion.
5. Maintenance & Troubleshooting
5.1 Routine Maintenance
Monthly Checks: Visually inspect the 1C31181G01 for loose cables, damaged terminals, or debris. Verify the diagnostic LEDs show normal status (P and C green, E and I off) and that the remote I/O modules are communicating with the central controller (check via Ovation Operator Station).
Quarterly Checks: Clean the module and cabinet with a dry, lint-free cloth to remove dust—avoid solvents or compressed air, which can damage components. Test the fiber-optic/copper communication link using an Ovation diagnostic tool to confirm signal strength (minimum -15 dBm for fiber).
Annual Checks: Inspect the power supply connections for corrosion and re-tighten terminal screws to 0.8 N·m. Replace the AUI or fiber-optic cables if they show signs of wear (e.g., cracked insulation, bent pins).
5.2 Troubleshooting Common Issues
Communication LED (C) Not Lit:
Check the AUI/fiber-optic cable connections at both the 1C31181G01 and central PCRR/MAU modules—re-seat cables if loose.
Use a multimeter to verify 24 VDC power is reaching the 1C31181G01’s PS+ and PS- terminals. If no power is present, inspect the remote cabinet’s power supply fuse.
For fiber-optic setups, use a fiber-optic tester to check for signal loss. Replace the fiber cable or MAU module if signal strength is below -20 dBm.
External Fault LED (E) Lit:
Check the Ovation Controller’s fault logs for details (e.g., “Remote Node 2 Link Loss”). This may indicate a broken cable or failed MAU module.
Inspect the remote I/O modules for faults (e.g., blown fuses in 1C31122G01 digital output modules). A faulty I/O module can disrupt communication with the 1C31181G01.
Reset the 1C31181G01 by powering off the remote cabinet for 30 seconds, then restoring power. If the fault persists, replace the module.
Intermittent Signal Errors:
Check for EMI sources near the communication cables (e.g., motor starters, transformers) and re-route cables away from these sources.
Verify the remote cabinet’s grounding is secure—loose ground connections can cause signal interference.
For copper cables, replace the AUI cable with a shielded version (e.g., 5A26147-Shielded) to improve EMI resistance.
6. Application Use Cases
The 1C31181G01 is ideal for Ovation DCS deployments requiring remote I/O connectivity, including:
Offshore Oil & Gas: Connects I/O modules in offshore platform cabinets to onshore Ovation Controllers via fiber-optic cable, enabling control of wellhead sensors, choke valves, and emergency shutdown systems.
Power Plants: Extends the Ovation system to remote boiler houses or turbine auxiliary buildings, supporting analog input modules (e.g., 1C31224G01) for pressure/temperature monitoring and digital output modules for pump control.
Water & Wastewater: Links remote pump stations and treatment plant I/O (e.g., flow meters, valve actuators) to a central Ovation Controller, ensuring consistent monitoring and control of distribution networks.
Large-Scale Manufacturing: Connects I/O modules in distant production lines (e.g., automotive assembly, food processing) to the central DCS, enabling synchronized control of conveyors, robotic arms, and quality sensors.
