Product Description

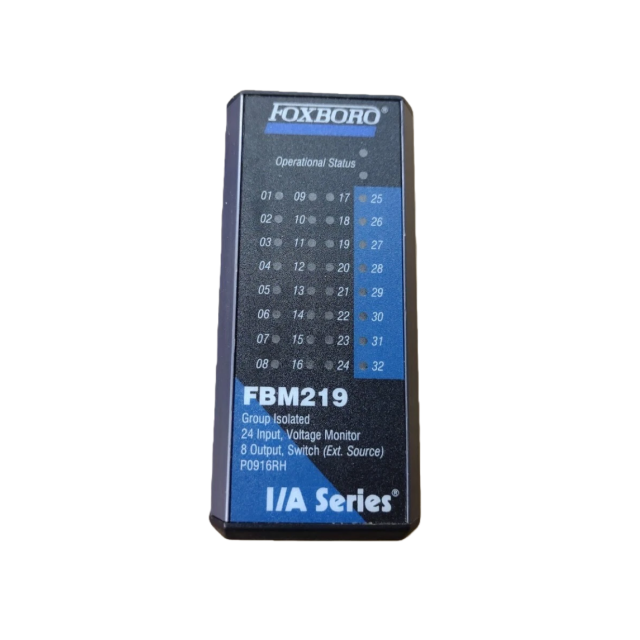

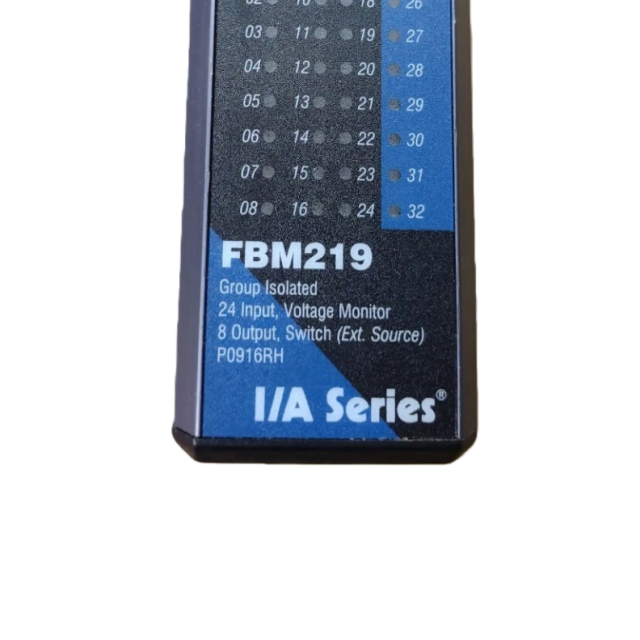

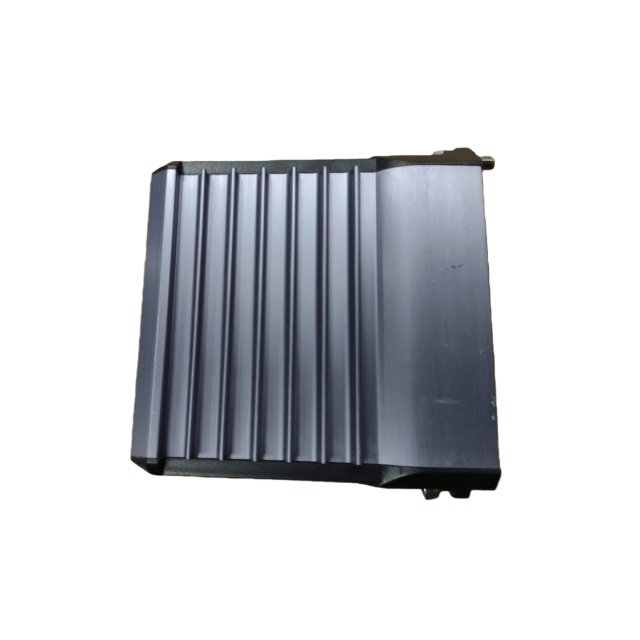

▷Brand：Foxboro
▷Number ：FBM219
▷Description：Discrete I/O Module
▷Lead Time ：In Stock
▷Core Function: Integrates 24 discrete input channels and 8 discrete output channels, supports
voltage signals including 15–60 V dc, 120 V ac/125 V dc, 240 V ac, and enables configurable functions
such as input filter time, fail-safe settings, and sustained/momentary outputs.
▷Key Features: Group/channel isolation, rugged design for Class G3 harsh environments, hot-
swappable, optical isolation for inputs, fuse protection and relays in termination assemblies (TAs), and
compatibility with Foxboro Evo process automation systems.
▷Application Scope: Industrial process automation (e.g., manufacturing, process control) requiring
bidirectional discrete signal processing, suitable for upgrading 100 Series FBM systems.
Technical Specifications
| I/O Parameters |
Channel Configuration: 24 group/channel-isolated input channels; 8 group/channel-isolated output channels. Input Signal: Voltage monitor: 15–30 V dc (on-state), 0–5 V dc (off-state); 79–132 V ac/75–150 V dc (on-state), 0– 20 V ac/dc (off-state); 164–264 V ac (on-state), 0–40 V ac (off-state). Contact sense: Internal (24 V dc/48 V dc) or external power supply. Input Current: 2.2 mA (typical at 30 V dc); 2.5 mA (typical at high voltage). Source Resistance Limits: 1 kΩ max (on-state); 100 kΩ min (off-state). Output Signal: Switch output (external source): Up to 60 V dc (0.25 A max) or 240 V ac (5 A max per channel). Relay output (SPDT): 5 A max at 30 V dc/240 V ac; 12 A max total per TA. Off-state Leakage Current: 0.25 mA max (low-voltage output). Filter/Debounce Time: Configurable (no filtering, 4/8/16/32 ms). |
| Isolation & Protection |
Isolation: Group isolation (600 V ac for 1 minute between channels/ground) or channel isolation (RH917LL/RH917LP/RH917LS TAs). EMC Compliance: Meets EN61326-1:2013 Class A; complies with European EMC Directives 2004/108/EC and 2014/30/EU. Protection: Input current limited to 2.5 mA; output fusing (0.4 A/3.15 A) and relay protection for inductive loads. |
| Power Requirements |
Voltage Range: 24 V dc ±5% (redundant power). Power Consumption: 5 W max (24 V dc). Heat Dissipation: 6 W max (24 V dc). |
