GE IS200EISBH1AAB Exciter ISBus Board

GE IS200EISBH1AAB Exciter ISBus Board: Comprehensive Product Overview

The GE IS200EISBH1AAB is a specialized Exciter ISBus (EISB) Communication Board engineered as a critical data exchange hub within GE’s Speedtronic Mark VI turbine control system and EX2100 excitation control ecosystem. Its core function is to serve as the "communication backbone" for excitation systems, enabling synchronized signal transmission between the M1 (Master 1), M2 (Master 2), and C (Controller) units, while relaying high-speed feedback data to the DSPX master controller.

Unlike generic communication boards, IS200EISBH1AAB integrates dual signal-handling capabilities: IS200EISBH1AAB processes fiber-optic feedback signals (e.g., generator field current/voltage from EDCF modules) and facilitates low-latency data exchange via GE’s proprietary ISBus interface—critical for maintaining excitation system stability in redundant configurations.

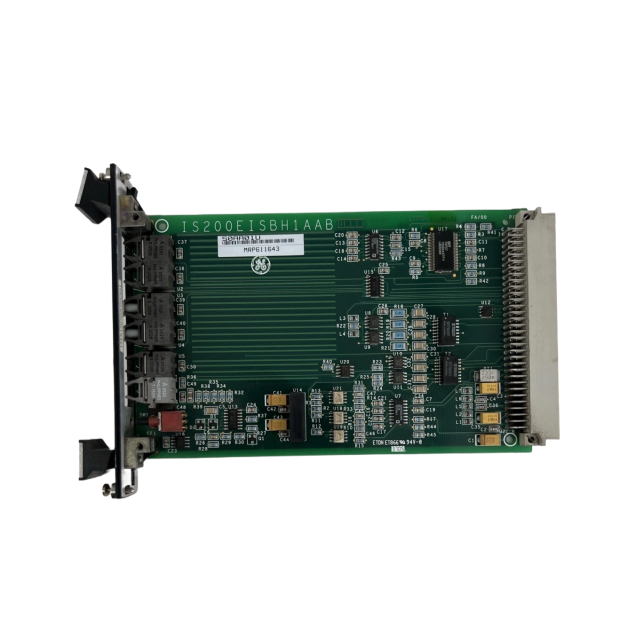

Designed as a compact single-slot, 3U form factor module, IS200EISBH1AAB mounts strategically in Mark VI VME card racks (13 or 21-slot configurations) beneath the DSPX controller for optimized connectivity. The front panel features six fiber-optic connectors to accept EMI-immune signals from generator fields and exciter components, plus a recessed reset switch for on-site troubleshooting. Internally, IS200EISBH1AAB integrates transformers, relays, and high-precision signal conditioning circuits to scale and process 4–20 mA inputs (e.g., compressor stall detection, fuel pressure) and ±10V DC vibration signals, with hardware jumpers (J1/J2, J5/J6) enabling customization of output current ranges (20 mA or 200 mA).

IS200EISBH1AAB features rugged construction (conformal-coated PCB, -30°C to 65°C operating temperature range) that ensures reliability in harsh industrial environments like power plants and steel mills, while compatibility with RS-232C tool/keypad interfaces simplifies on-site configuration and diagnostics.

Detailed Specification Table

Key Functional Features

Centralized Signal Routing: Eliminates complex point-to-point wiring by consolidating analog/digital signals from multiple exciter modules into a single interface. This simplifies installation, reduces wiring errors, and eases maintenance.

EMI & Transient Protection: Isolation circuits and EMI filters prevent interference from nearby high-voltage exciter cables or generator magnetic fields—ensures accurate signal transmission even in harsh industrial environments.

Fault Detection & Alarming: Monitors signal integrity (e.g., open wires, overcurrent) and triggers localized LEDs + Mark VI HMI alarms. Enables technicians to quickly identify issues (e.g., a broken analog wire vs. a module fault) without manual troubleshooting.

High-Speed Data Transmission: Fiber-optic ports support 100 Mbps data transfer to DSPX modules—ensures real-time synchronization of exciter status with the Mark VI control system (critical for fast shutdown responses to faults).

Industrial Durability:

Circuit boards feature conformal coating (per ISA-S71.04 G3) to resist moisture, dust, and corrosive gases (suitable for coastal or chemical plant environments).

Vibration resistance (0.15 mm peak-to-peak, 5–150 Hz) and shock resistance (15 g half-sine wave, 11 ms) – stable performance near rotating turbomachinery.
