| Availability: | |
|---|---|
IS200ESELH2AAA
GE
Functional description

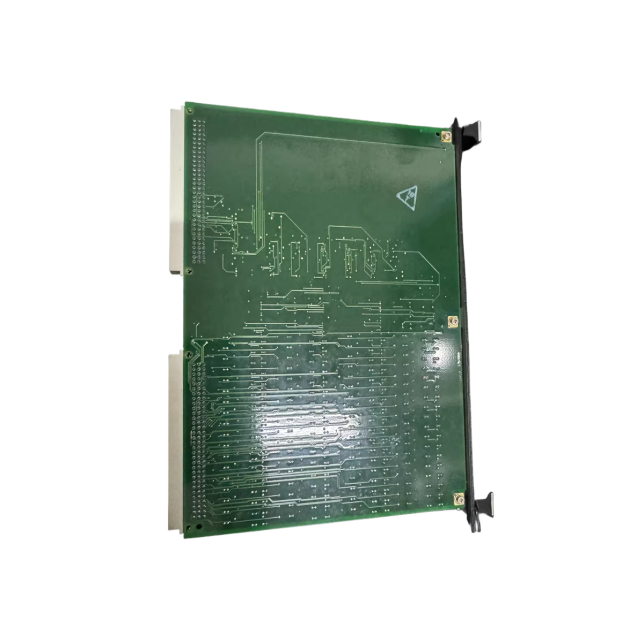

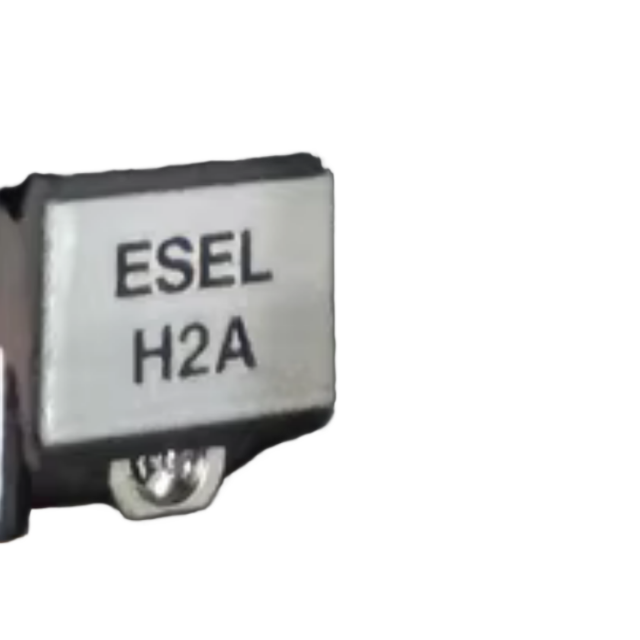

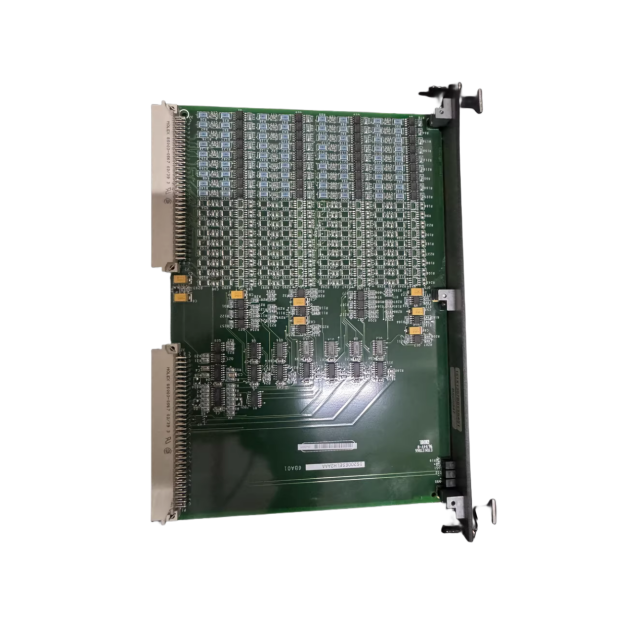

The GE IS200ESELH2AAA Exciter Selector Board functions as the redundancy management core in
GE’s EX2100 excitation control system, responsible for orchestrating seamless between primary,
secondary, and backup excitation control channels to maintain uninterrupted generator excitation. Its
primary role is to monitor the health and performance of redundant regulator modules (e.g.,
IS200DSPX) by continuously evaluating key parameters—including output signal consistency,
communication status via the EISB bus, and power supply integrity. When anomalies are detected in
the active channel (such as loss of field current regulation or communication failure), the board
automatically triggers a failover to the standby channel within 8ms, a speed critical for preventing
generator terminal voltage fluctuations or trips. It also supports manual via front-panel switches or
remote commands from the EX2100 HMI, enabling planned maintenance without system downtime.
Additionally, the board aggregates and transmits real-time status data (e.g., active channel identifier,
fault codes, history) to the system controller, with front-panel LEDs providing at-a-glance visibility of
operational states (active/standby/fault). Built with rugged components and IPC-CC-830B Class 3
conformal coating, it withstands harsh industrial environments (vibration, temperature extremes, and
electromagnetic interference) and integrates seamlessly into EX2100 racks, supporting hot-swap
capabilities to maximize system availability.
Key Functional Features
Safety-Critical Shutdown Logic: Executes predefined shutdown sequences (e.g., de-energizing the excitation field) within milliseconds of detecting faults—prevents turbine damage from conditions like overspeeding (caused by loss of excitation) or insulation breakdown (from overexcitation).
Configurable Thresholds: Via GE ToolboxST software, users can adjust fault thresholds (e.g., maximum excitation voltage, minimum excitation current) and time delays to match specific turbomachinery requirements (e.g., gas turbine vs. steam turbine excitation systems).
Comprehensive Diagnostics:
Self-diagnostics: Monitors module power, internal logic circuits, and input/output connections—alerts the Mark VIe/VI system to module faults (e.g., power loss, broken input wires).
Fault logging: Records shutdown events (timestamp, fault type, pre-fault parameters) for post-incident analysis, aiding in maintenance and root-cause identification.
Redundancy Support: Can be configured in 1+1 redundant pairs for high-availability applications (e.g., critical power plants). Redundant modules synchronize data to ensure seamless failover if the primary module malfunctions.
GE Ecosystem Integration: Tightly integrated with GE’s Mark VIe/VI human-machine interface (HMI) and PlantPAx DCS—enables real-time monitoring of excitation system status, shutdown triggers, and module health via a centralized operator station.
| Parameter Category | Details |
|---|---|
| Core Function | Redundant channel management for EX2100 excitation systems; automatic failover, manual ,health monitoring, and diagnostic reporting. |
| Mechanical Specifications | - Form Factor: Single-slot 3U Eurocard (compatible with EX2100 standard racks)- Dimensions: 100mm (W) × 150mm (H) × 25mm (D)- Material: FR4 PCB with IPC-CC-830B Class 3 conformal coating; aluminum front panel- Mounting: Screw-fixed to EX2100 rack (torque: 2.5 Nm) |
| Redundancy Support | - Channels: Up to 3 (primary, secondary, backup)- Modes: Automatic (fault-triggered) and manual (local/remote)- Latency: <8ms (automatic); <50ms (manual) |
| Input/Output Signals | - Inputs: 6 discrete status signals (regulator health, power OK); 2 analog reference signals (field voltage)- Outputs: 3 channel enable signals; 1 system status analog output (0–10V)- Signal Levels: Discrete (24V DC, sinking); Analog (0–10V DC) |
| Communication | - Protocol: EISB (Exciter Internal Serial Bus)- Data Rate: 10 Mbps (full-duplex)- Transmitted Data: Channel status, fault codes, events, diagnostic metrics |
| Power Requirements | - Supply Voltage: 24V DC ±10% (from EX2100 backplane)- Power Consumption: <4W (typical); <6W (max) |
| Environmental Ratings | - Operating Temperature: -40°C to 70°C (-40°F to 158°F)- Storage Temperature: -55°C to 85°C (-67°F to 185°F)- Relative Humidity: 5%–95% (non-condensing)- Vibration: IEC 60068-2-6 (5g, 10–500Hz)- Shock: IEC 60068-2-27 (50g, 11ms) |
| Safety & Compliance | - Certifications: UL 61010-1, IEC 61800-5-1, CE- Isolation: 2.5kV AC (field to logic circuits)- Protection: Overvoltage (36V DC max); reverse polarity protection |
| Indicators & Controls | - LEDs: 3 channel status (green=active, yellow=standby, red=fault); 1 power (green); 1 EISB (green)- Controls: 3-position manual switch; fault reset button |
| Compatibility | - System: GE EX2100 excitation control system- Regulators: IS200DSPX (primary/secondary), IS200DSPX-B (backup)- Backplanes: IS200ERBPG1A/1B |
