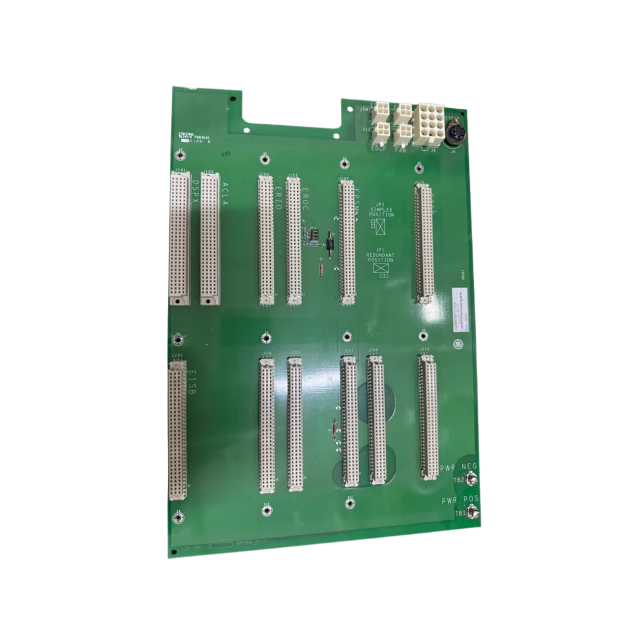

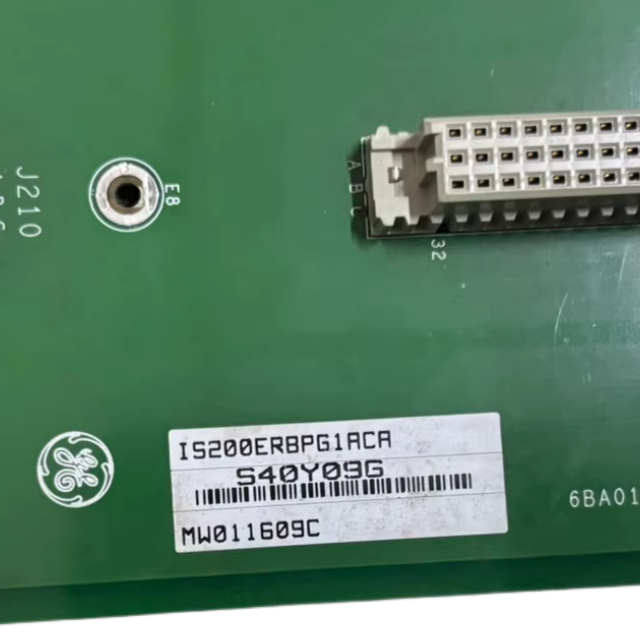

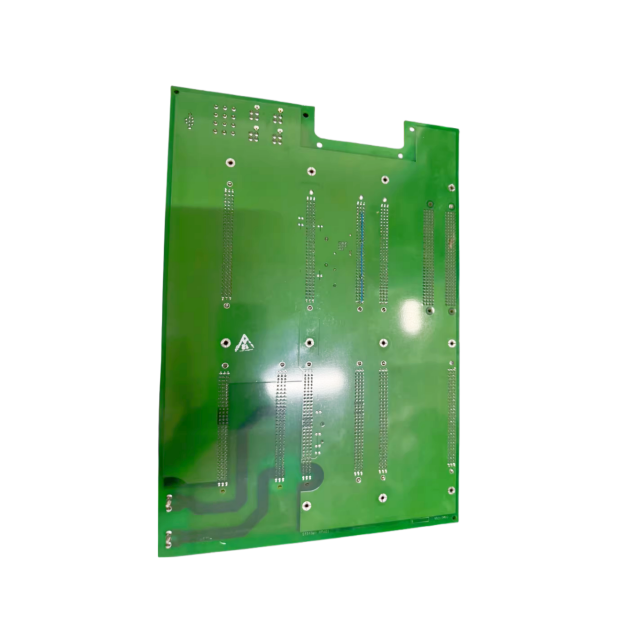

The GE IS200ERBPG1ACA Input/Output (I/O) Interface Module serves as a critical interface between
the EX2100 excitation control system's backplane and external field devices, enabling bidirectional
signal exchange through terminal boards. It processes and conditions analog inputs (PT/CT signals, 4–
20 mA), discrete inputs (status contacts), and generates precise analog outputs (±10 V, 4–20 mA) and
relay outputs for control actions. The module incorporates signal conditioning, isolation (typically 2.5
kV AC), and surge protection to ensure reliable operation in high-EMI environments. It communicates
with the DSPX controller via the EISB bus, providing real-time diagnostics and enabling hot-swap
capability in redundant configurations. The module is designed for single-slot 3U Eurocard mounting
in EX2100 racks, with LED indicators for quick status assessment, conformal coating for environmental
resilience, and compatibility with standard EX2100 terminal boards.
Technical Specifications
| Parameter | Details |
| Core Function | I/O interface between EX2100 backplane and field devices; signal conditioning, isolation, and diagnostics |
| Form Factor | Single-slot 3U Eurocard, compatible with EX2100 control racks |
| Analog Inputs | Configurable channels for PT/CT signals and 4–20 mA sensors |
| Discrete Inputs | Digital status inputs for contact monitoring |
| Analog Outputs | Channels providing ±10 V and/or 4–20 mA control signals |
| Relay Outputs | Form C contacts for control and alarm functions |
| Isolation | Typically 2.5 kV AC channel-to-channel and field-to-logic |
| Surge Protection | MOV-based protection on inputs/outputs |
| Operating Voltage | Powered via EX2100 backplane (typically 24 V DC) |
| Operating Temperature | -40°C to +70°C |
| Communication | EISB bus interface for real-time data exchange with DSPX |
| Indicators | Front-panel LEDs for power, status, and fault indication |
| Environmental | Conformal coating (IPC-CC-830B) for harsh environments |
| Certifications | UL 61010-1, IEC 61800-5-1, CE compliant |
