IS200EPDMG1ABA
GE

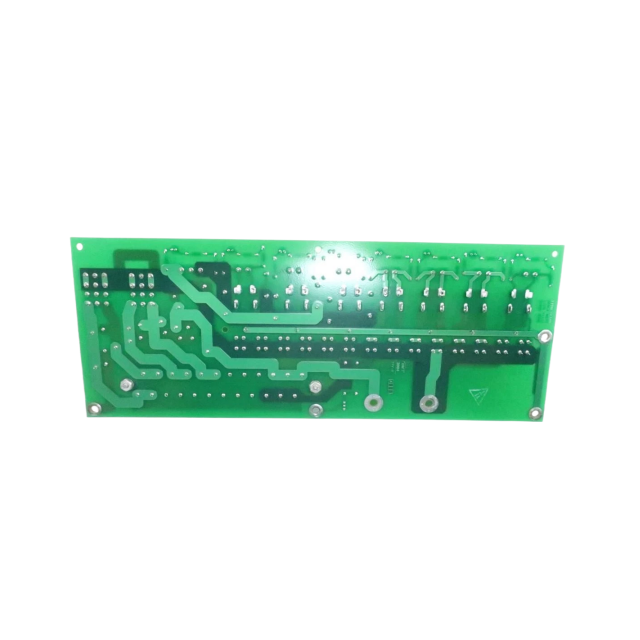

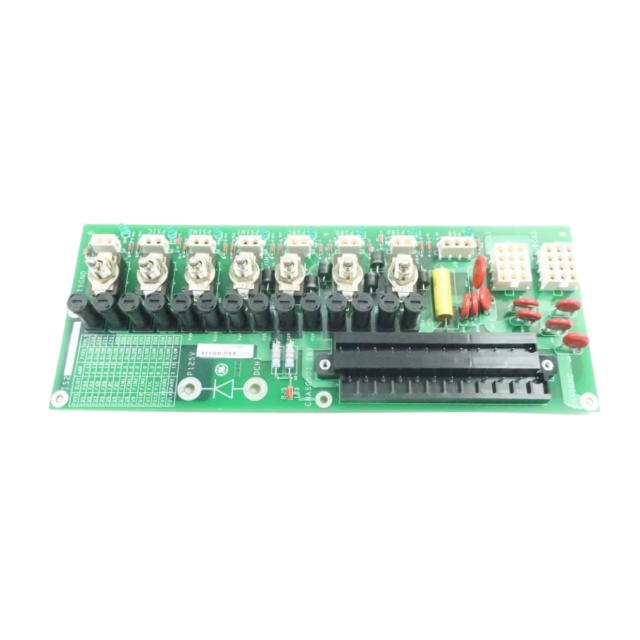

The GE IS200EPDMG1ABA is a mission-critical Power Distribution Board engineered exclusively for
GE’s EX2100 excitation control system, serving as the centralized power hub that delivers stable,
protected electrical supply to all key excitation components. Its core function is to distribute
regulated 24V DC power (from redundant system power supplies like the IS200VCRCH1A) to critical
modules—including excitation controllers (EX2100), feedback boards (e.g., IS200EDCFG1ADC), ground
detectors (IS200EGDMH1A), and I/O boards (IS200EMIOH1A)—while integrating robust protection
mechanisms to prevent power-related failures. Unlike generic power distribution units, it is purpose-
built for excitation system demands: it features dual redundant power inputs (eliminating single
points of failure), per-channel overcurrent protection (via resettable fuses), and EMI-shielded power
traces to ensure clean power delivery even in high-voltage industrial environments.
Designed as a compact, rack-mountable board (compatible with EX2100 standard control racks), it
simplifies wiring with clearly labeled terminal blocks for input power and output channels, reducing
installation errors. The front panel includes LED indicators for input power status (one per redundant
input) and output channel health (one per connected module), enabling technicians to quickly
identify power disruptions. Its rugged construction includes a conformal-coated PCB (per IPC-CC-
830B Class 3) to resist dust, moisture, and chemical contaminants—critical for reliability in power
plants, steel mills, and petrochemical facilities. Whether supporting simplex or triple-redundant (TMR)
excitation configurations, the IS200EPDMG1ABA ensures consistent power flow to every component,
acting as the “power backbone” that safeguards the excitation system from voltage spikes,
overloads, or input power failures.
| Category | Details |
|---|---|
| Core Function | Centralized 24V DC power distribution for EX2100 excitation components; dual redundant inputs; per-channel overcurrent protection; power status monitoring. |
| Mechanical Specifications | Rack-mountable design (compatible with EX2100 control racks); clearly labeled terminal blocks (input/output); front-panel LED indicators; conformal-coated PCB (IPC-CC-830B Class 3). |
| Electrical Parameters | Input Voltage: 24V DC (dual redundant inputs, compatible with IS200VCRCH1A); Output Channels: 8–12 regulated 24V DC channels (configurable); Overcurrent Protection: 0.5A–5A resettable fuses (per channel). |
| Environmental Ratings | Operating Temperature: -40°C to 70°C; Storage Temperature: -55°C to 85°C; Relative Humidity: 5%–95% (non-condensing); EMI/RFI Shielding: Yes (shielded power traces). |
| Protection Features | Dual redundant power inputs (automatic failover); per-channel resettable fuses; reverse polarity protection (input side); surge suppression (MOV-based). |
| System Compatibility | GE EX2100 excitation control system; IS200VCRCH1A power supplies; EX2100 controllers, EDCF/EGDM feedback boards, EMIOH I/O boards; simplex/TMR configurations. |
| Installation & Maintenance | Tool-free rack mounting; color-coded wiring labels; resettable fuses (no replacement needed); front-panel LEDs for quick diagnostics; hot-swappable (in redundant setups). |
| Key Applications | Thermal/hydropower generator excitation systems; steel mill motor excitation control; petrochemical captive power plants; grid-stabilizing generator sets. |
| Compliance & Documentation | Aligns with GE EX2100 series standards; technical specs in GEH-6632 (EX2100 User’s Guide); CE/UL certified; typical 12-month warranty. |
